Remove/install propeller shaft - AR41.10-P-0050LF

MODEL 217, 222

MODIFICATION NOTES

09.09.2014

Flex disk on transmission/rear axle differential or propeller shaft

BA41.10-P-1001-01L

Shown on model 222.182

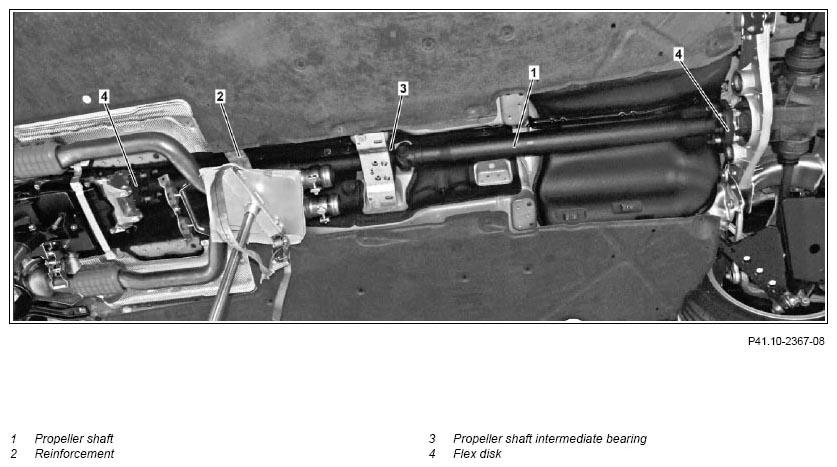

Fig 1: Propeller Shaft Remove/Install Components - Shown On Model 222.182

Courtesy of MERCEDES-BENZ USA

	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Shift automatic transmission to position "N"
2.1	Remove exhaust system from flange connections back	MODEL 217 with ENGINE 157, 278, 279 MODEL 222 with ENGINE 157, 276, 277, 278, 279, 651 MODEL 222 with ENGINE 642 without CODE U77 (Diesel Emission control BLUETEC (SCR))	AR49.10-P-7100LF
2.2	Remove SCR catalytic converter	MODEL 222 with ENGINE 642 with CODE U77 (Diesel Emission control BLUETEC (SCR))	AR14.40-P-2006LFD
3	Remove rear engine cross member	MODEL 222 with ENGINE 651	AR22.10-P-1180OLF
		MODEL 217 with ENGINE 157, 278, 279 MODEL 222 with ENGINE 157, 276.8/9, 277, 278, 279, 642	AR22.10-P-1180LF
4	Remove appropriate heat shields under propeller shaft (1)
5	Remove reinforcement (2)	Screw/bolt, center reinforcement to frame floor assembly	*BA61.10-P-1003-01K
6	Remove bolts from propeller shaft center support bearing (3)		AR41.40-P-0002-01LF
		MODEL 217	*BA41.40-P-1002-01I
		MODEL 217	*BA41.40-P-1001-01I
		MODEL 222	*BA41.10-P-1003-01J
7	Detach and pull off flex disks (4) at transmission and rear axle differential		AR41.10-P-0040-01LF
	Drift for releasing the fitting sleeves in the flexible couplings		WF58.50-P-4110-01A
		Carefully remove flexible couplings (4). In order to prevent damage to pilot bushings. Flex disks (4) remain on the propeller shaft (1). MODEL 217	*BA41.10-P-1001-01L
		MODEL 222	*BA41.10-P-1002-01J
		MODEL 222	*BA41.10-P-1001-01J
8	Remove bolts from propeller shaft center support bearing (3) and remove drive shaft (1)	Turn in screws/bolts loosely and only tighten once the flex disks (4) at transmission and rear axle differential have been tightened. Vibrations in the drive train and damage may otherwise occur. Make sure that the halves or thirds of propeller shaft do not come apart at the slide joints. Otherwise damage will occur.
	Check
9	Check propeller shaft center support bearing (3)	If wear or damage is present:↓ Replace propeller shaft center support bearing (3).	AR41.40-P-0002LF
10	Check pilot bushings	If wear or damage is present: ↓ Replace pilot bushings.	AR41.10-P-0250LF
11	Check flex disks (4)	If wear or damage is present: ↓ Replace flexible couplings (4).
12	Install in the reverse order

PROPELLER SHAFT

Number	Designation			MODEL 222
BA41.10-P-1001-01J	Self-locking nut, flex disk to transmission or front propeller shaft	M12	Nm	68

PROPELLER SHAFT

Number	Designation				MODEL 217
BA41.10-P-1001-01L	Flexible coupling on transmission/rear axle differential or propeller shaft	Self-locking nut		Nm	68
		Direct threaded connection	Stage 1	Nm	60
			Stage 2	∠°	90

PROPELLER SHAFT

Number	Designation			MODEL 222
BA41.10-P-1002-01J	Self-locking nut, flex disk to rear propeller shaft or differential	M12	Nm	68

PROPELLER SHAFT

Number	Designation		MODEL 222
BA41.10-P-1003-01J	Bolt, propeller shaft center support bearing to frame floor assembly	Nm	25

PROPELLER SHAFT INTERMEDIATE BEARING

Number	Designation		MODEL 217
BA41.40-P-1001-01I	Screw/bolt, propeller shaft intermediate bearing to center reinforcement	Nm	20

PROPELLER SHAFT INTERMEDIATE BEARING

Number	Designation		MODEL 217
BA41.40-P-1002-01I	Screw/bolt, center reinforcement to frame floor assembly	Nm	32

FRAME FLOOR ASSEMBLY

Number	Designation		MODEL 217	MODEL 222.0/1/9
BA61.10-P-1003-01K	Screw/bolt, center reinforcement to frame floor assembly	Nm	32	32
