Remove/install flywheel/drive plate - AR03.30-P-8001LFA
ENGINE 276.8 in MODEL 217, 222
| Remove/install | |||
| 1 | Remove automatic transmission with torque converter | Engine 276.8 in model 217, 222 with transmission 722.96 | AR27.10-P-0500LHX |
| 2 | Install retaining lock for crankshaft/starter ring gear | Engine 276.8 in model 217, 222 | AR03.30-P-5000LFB |

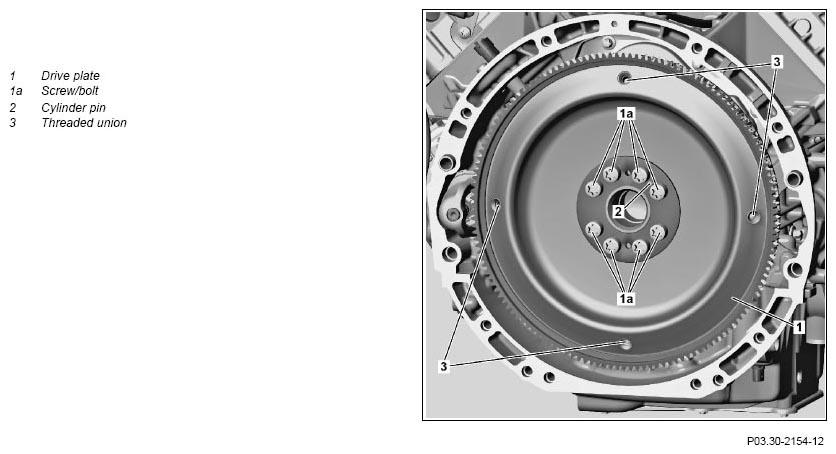

| 3 | Remove screw/bolts (1a) from drive plate (1) | Do not use any impact wrench/driver or compressed air tool to screw the screw/bolts (1a) in and out. The thread in the crankshaft flange will be damaged otherwise. |
AR03.30-P-8001-02MM |
| *BA03.30-P-1002-01M | |||
| Figure | |||
| Figure | |||
| 4 | Remove drive plate (1) from crankshaft flange | ||
| Check | |||
| 5 | Check threaded union (3) in drive plate (1) | For damaged or loose threaded unions (3) ↓ If the drive plate (1) must be replaced |
|
| 6 | Install in the reverse order | ||
| 7 | Perform default initialization and then sensor rotor adaptation using the diagnostic system | When replacing the clutch plate (1). | |
Control unit → Adaptations → Teach-in processes |
AD00.00-P-2000-04B |
FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA03.30-P-1002-01M | Bolt, starter ring gear/drive plate to crankshaft | Stage 1 | Nm | 20 |
| Stage 2 | Nm | 45 | ||
| Stage 3 | ∠° | 90 | ||
