Remove/install intelligent servo module - AR27.19-P-0550LFS

TRANSMISSION 722.9 in MODEL 222

with CODE Z07 (Top protection)

Shown on transmission 722.9 with engine 642

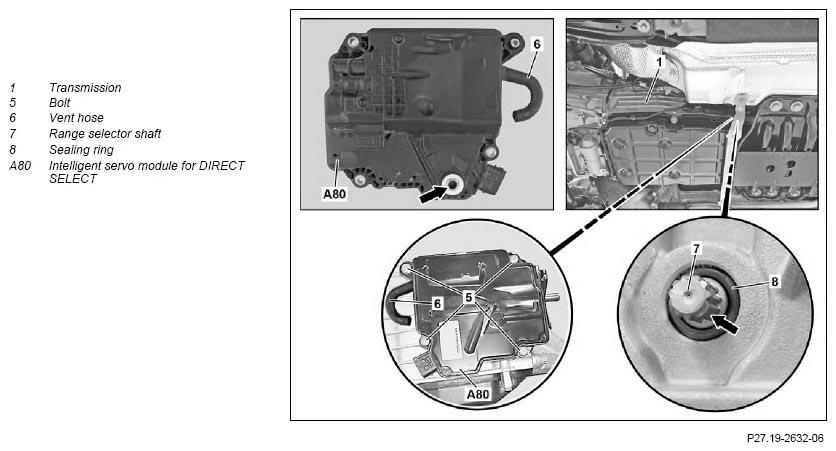

Fig 1: Intelligent Servo Module Remove/Install Components - Shown On Transmission 722.9 With Engine 642

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove transmission with torque converter	TRANSMISSION 722.96/97 in MODEL 222 with CODE Z07 (Top protection)	AR27.10-P-0500LHX
		TRANSMISSION 722.9 (except 722.96/97) in MODEL 222 with CODE Z07 (Top protection)	AR27.10-P-0500LF
2	Remove screw/bolts (5)
	Notes on threaded connections with aluminum screws/bolts	Replace screw/bolts (5).	AH00.00-P-0006-01RM
		Standard bolt/hexagon-spacer bolt, shift module (ISM) to transmission housing	*BA27.40-P-1021-01A
3	Remove intelligent servo module for DIRECT SELECT (A80) with vent hose (6)	If the intelligent servo module for DIRECT SELECT (A80) is to be reused, do not detach the vent hose (6). Otherwise, it may lead to leaks and damage on the intelligent servo module for DIRECT SELECT (A80).
4	Replace bleed hose (6) of intelligent servo module for DIRECT SELECT (A80)	When replacing the intelligent servo module for DIRECT SELECT (A80). The positions of the range selector shaft (7) and the intelligent servo module for DIRECT SELECT (A80) must match. If necessary, turn the range selector shaft (7) accordingly. Assembly tool	Figure
5	Rotate the range selector shaft (7) of the transmission (1) counterclockwise up to the end stop at position "D" (arrow)	When replacing the intelligent servo module for DIRECT SELECT (A80). In its as-delivered state, a new intelligent servo module for DIRECT SELECT (A80) is set to position "D" (arrow).
	Check
6	Check sealing ring (8) of range selector shaft (7) for damage and leakages	If leaky or damaged ↓ Replace sealing ring (8)	AR27.40-P-0220A
7	Install in the reverse order
8	Connect diagnostic system, read out fault memory and conduct initial startup of the intelligent servo module for DIRECT SELECT (A80)	After replacing the intelligent servo module for DIRECT SELECT (A80).
			AD00.00-P-2000-04B

HOUSING

Number	Designation			TRANSMISSION 722.9
BA27.40-P-1021-01A	Standard bolt/hexagon-spacer bolt, shift module (ISM) to transmission housing	Stage 1	Nm	4
BA27.40-P-1021-01A		Stage 2	∠°	90

Fig 2: Identifying Assembly Tool (722 589 03 09 00)

Courtesy of MERCEDES-BENZ USA
