Remove/install engine with front axle carrier - AR01.10-P-2500MMB

ENGINES 157, 278 in MODEL 216, 221

ENGINES 276 in MODEL 221.082/182

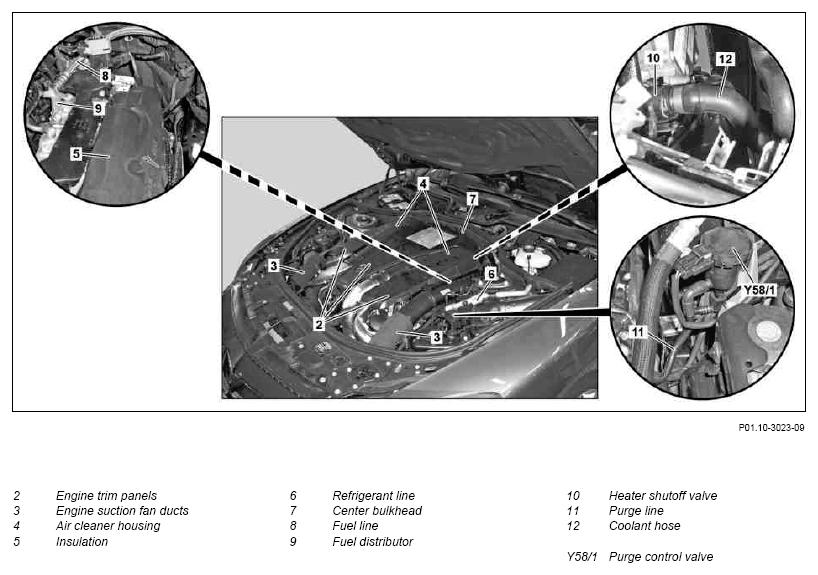

Fig 1: Engine With Front Axle Carrier Remove/Install Components - Shown On Model 216.373
G10108008Courtesy of MERCEDES-BENZ USA

Shown on model 216.373 with code (487)

Active Body Control (ABC)

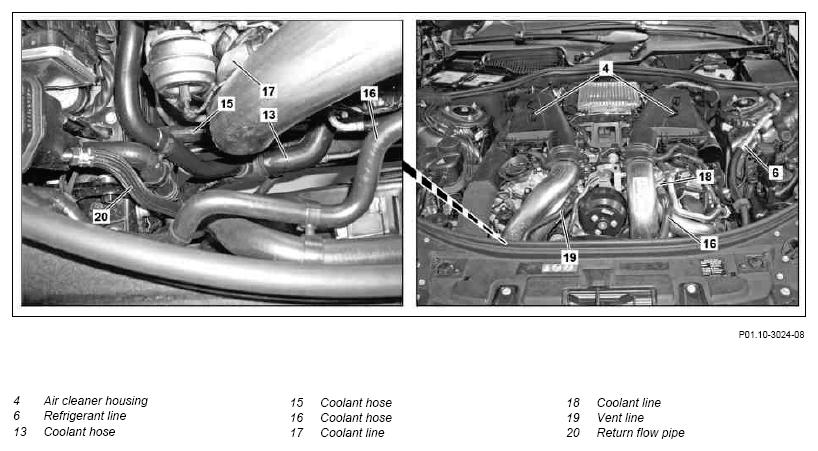

Fig 2: Engine With Front Axle Carrier Remove/Install Components - Shown On Model 216.373
G10108009Courtesy of MERCEDES-BENZ USA

Shown on model 216.373 with code (487)

Active Body Control (ABC)

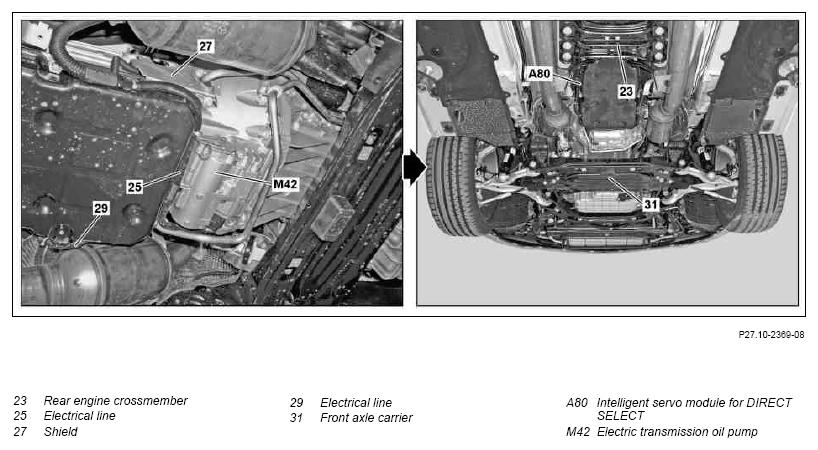

Fig 3: Engine With Front Axle Carrier Remove/Install Components - Shown On Model 216.074
G10108010Courtesy of MERCEDES-BENZ USA

Shown on model 221.074 with code (487)

Active Body Control (ABC)

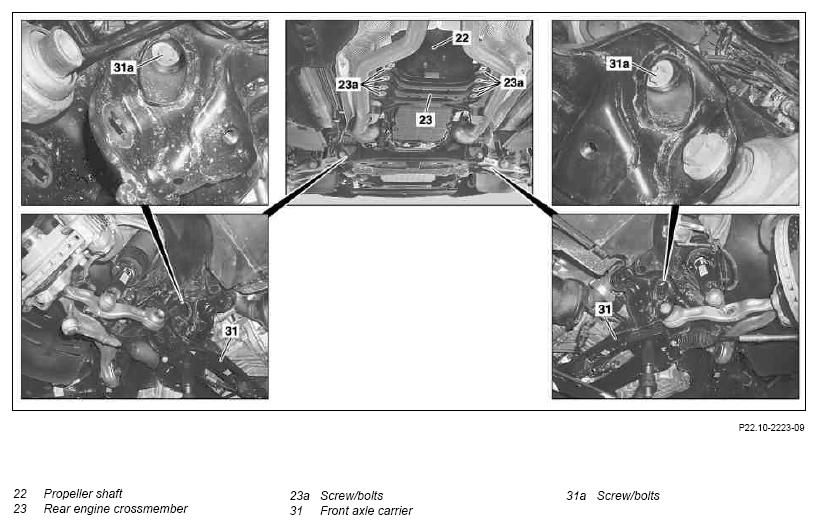

Fig 4: Engine With Front Axle Carrier Remove/Install Components - Shown On Model 216.373
G10108011Courtesy of MERCEDES-BENZ USA

Shown on model 216.373 with code (487)

Active Body Control (ABC)

Shows model 221.094

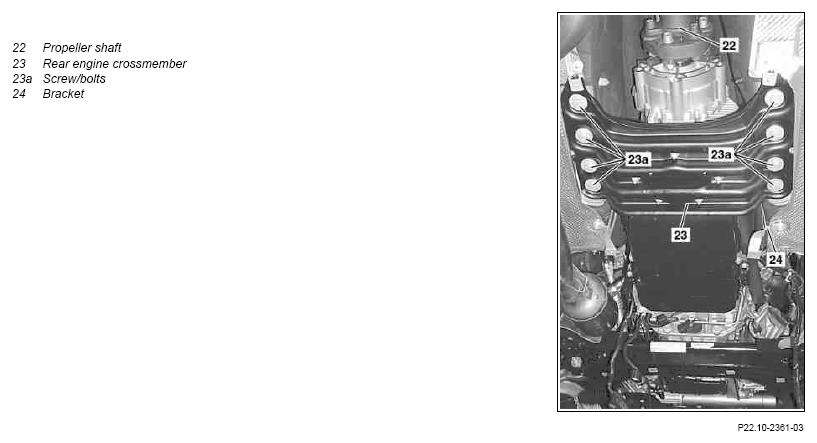

Fig 5: Identifying Propeller Shaft And Rear Engine Crossmember - Shows Model 221.094
G10108012Courtesy of MERCEDES-BENZ USA

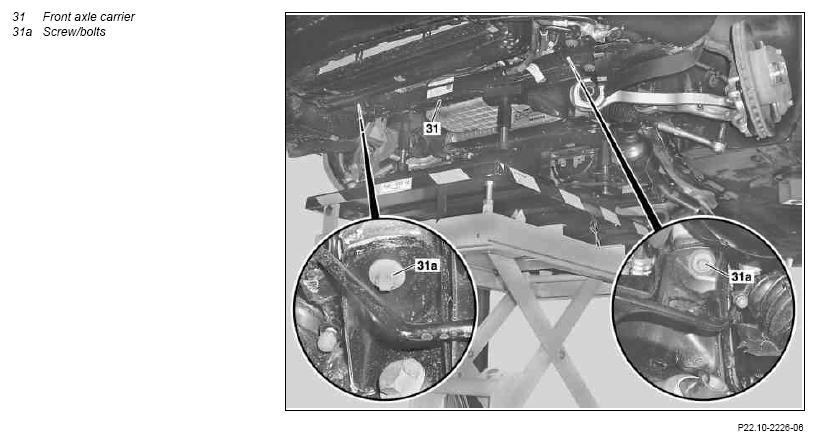

Fig 6: Identifying Front Axle Carrier Bolts
G10108013Courtesy of MERCEDES-BENZ USA
MODIFICATION NOTES

27.7.10 Value changed: fuel line union nut on fuel distributor   *BA07.03-P-1001-01E
REMOVINGINSTALLING Remove/install
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on Active Body Control suspension   AH32.50-P-0001-01N
IMPORTANT Notes on AIRmatic   AH32.22-P-1000-02SX
    IMPORTANT The ground line on the battery must always  be detached before beginning work on the fuel system otherwise pressure will be built up in the fuel system through opening a vehicle door or the trunk lid
    IMPORTANT Tighten nuts and bolts of chassis components only when vehicle is in the ready-to-drive condition.
1 Reduce pressure in front suspension struts to zero using STAR DIAGNOSIS Vehicles with AIRmatic AD00.00-P-2000-04A
2 Deactivate easy entry/exit function Vehicles with memory package (driver seat, steering column, mirrors) code 275 AR54.30-P-1000-02ESX
3 Turn front wheels to straight-ahead position and secure steering wheel with holding device NOTES The steering wheel must not be turned when the steering coupling is detached, otherwise the clock spring contact will be destroyed.
SPECIAL TOOL Figure
4 Set DIRECT SELECT gear selector switch to position "N" and release parking brake
5 Detach ground line from battery   AR54.10-P-0003SX
NOTES Notes on battery   AH54.10-P-0001-01A
6 Secure vehicle on vehicle lift   AR00.60-P-0100SX
7 Remove bottom engine compartment paneling   AR61.20-P-1105SX
8 Drain coolant at radiator   AR20.00-P-1142MM
NOTES Notes on coolant   AH20.00-N-2080-01A
9 Remove engine trim panels (2)
10 Remove both engine air intake ducts (3) upstream of the air filter housings (4)
11 Remove both air filter housings (4)
12 Remove insulation (5) on rail
13 Suction refrigerant out of air conditioning See "Drain air conditioning system, evacuate, refill and check for proper operation and leaktightness". AR83.30-P-1760SX
14 Extract oil from ABC expansion reservoir Vehicles with code (487) Active Body Control (ABC)
SPECIAL TOOL Fig 11
15 Extract oil from power steering expansion reservoir SPECIAL TOOL Fig 11
16 Disconnect refrigerant line (6) in engine compartment at connecting point IMPORTANT Seal openings using stop plugs.
SPECIAL TOOL Fig 9
17 Detach purge line (11) on purge control valve (Y58/1)
18 Remove center bulkhead (7)
19 Detach vacuum line on intake manifold and vacuum pump and place to one side Engine 157, 278 AR43.05-P-1320MMB
Engine 276 AR43.05-P-1320MMA
20 Disconnect engine wiring harness on the vehicle side Engine 157, 278 AR01.00-P-2410-02MMB
Engine 276 AR01.00-P-2410-02MMA
21 Detach electrical line on intelligent servo module (A80) and unclip on transmission   AR27.19-P-0550SX
22 Disconnect electrical line at electrical transmission oil pump (M42) and unclip on transmission See "Remove auxiliary oil pump for AT". AR27.30-P-0651SXH
23 Remove shield and disconnect electrical connector for transmission control   AR27.40-P-0700-01SX
TORQUE SPECIFICATION *BA27.40-P-1014-01A
24 Remove catalytic converters See: "Remove components of exhaust system". AR49.10-P-7100SX
25 Detach electrical line on speed-sensitive power steering solenoid valve and unclip on front axle carrier (31) See "Remove rack-and-pinion steering". AR46.20-P-0600SX
26 Detach coolant hose (12)) on heater shutoff valve (10)
27 Detach coolant hose on coolant pump and cooler IMPORTANT Lay coolant hose to the side.
See "Disconnect Henn coupling". AR09.41-P-1311-01AL
28 Detach coolant hoses (15, 16) at coolant lines (17, 18) for charge air cooler
29 Detach coolant hose at thermostat housing See "Disconnect Henn coupling". AR09.41-P-1311-01AL
30 Detach refrigerant line on condenser IMPORTANT Seal openings using stop plugs. AR83.30-P-6540SX
SPECIAL TOOL Fig 9
31 Drain off hydraulic fluid in the front suspension strut over the bleed screws and catch in a suitable container Vehicles with code (487) Active Body Control (ABC)
IMPORTANT Bleed screws: ↓

IMPORTANT   Observe note about Active Body Control suspension. AH32.50-P-0001-01N
32 Disconnect pressure line D1 from return line R1 for the P/S at connecting point See "Remove hydraulic line for P/S".
IMPORTANT Seal openings using stop plugs.
AR46.25-P-3015SXH
SPECIAL TOOL Fig 9
SPECIAL TOOL Fig 10
33 Loosen wheelhouse paneling for the right front fender in the front lower area Vehicles with code (487) Active Body Control (ABC)
34 Disconnect front right ABC hydraulic line at connecting point and remove at longitudinal member Vehicles with code (487) Active Body Control (ABC) AR32.50-P-0024SX
35 Detach front right ABC hydraulic line and hydraulic line for ABC pump at ABC front axle valve unit Vehicles with code (487) Active Body Control (ABC) AR32.50-P-0001SX
36 Detach oil cooling line for transmission on cooler IMPORTANT Seal openings using stop plugs. AR27.10-P-0501-03SX
SPECIAL TOOL Fig 9
37 Detach oil lines for engine oil cooling on oil cooler Engine 157
IMPORTANT Seal openings using stop plugs.

SPECIAL TOOL Fig 9
38 Remove heat shield over the steering coupling and detach steering coupling on the lower steering shaft   AR46.10-P-8000SX
39 Remove front wheels   AP40.10-P-4050SX
40 Detach link rods from stabilizer bar Model 221 with AIRmatic
IMPORTANT The torsion bar remains on the front axle carrier (31).
AR32.20-P-0300SX
TORQUE SPECIFICATION *BA32.20-P-1001-02O
  Operation steps 41 to 46 only for vehicles without 4MATIC
41 Remove tie rods from steering knuckles   AR46.40-P-0200SX
42 Detach ABC front axle valve unit from retaining plate Vehicles with code (487) Active Body Control (ABC) AR32.50-P-0001SX
43 Detach strut rods from front axle carrier (31)   AR33.15-P-0160SX
44 Detach spring control arm from front axle carrier (31). Vehicles with AIRmatic AR33.15-P-0170SX
Vehicles with code (487) Active Body Control (ABC) AR33.15-P-0170SY
45 Detach rpm sensor bracket at steering knuckle and spring control arm Vehicles with code (487) Active Body Control (ABC) AR42.30-P-0712SX
46 Loosen nuts or bolts for the suspension struts below on spring control arms Vehicles with AIRmatic AR32.25-P-1017SX
Vehicles with code (487) Active Body Control (ABC) AR32.25-P-1017SY
  Operation steps 47 to 51 only for vehicles with 4MATIC
47 Disconnect electrical connector from rpm sensors, right front brake pad contact sensor and damping valve unit connector for front axle on left and right IMPORTANT Unclip electrical lines from brackets. AR33.10-P-0100-06SX
48 Detach brake caliper from brake caliper support IMPORTANT Fix brake caliper with attached lines to upper transverse control arms using cable ties.
TORQUE SPECIFICATION *BA42.10-P-1005-10M
49 Remove upper transverse control arm from steering knuckles   AR33.20-P-0500-01SX
TORQUE SPECIFICATION *BA33.20-P-1007-01M
SPECIAL TOOL Fig 12
SPECIAL TOOL Fig 13
50 Detach suspension struts from spring control arms TORQUE SPECIFICATION *BA32.25-P-1007-04L
51 Remove bracket (24) for the lower engine compartment paneling
52 Disconnect bleed line (19) at connecting point
53 Disconnect feed hose for the ABC hydraulic pump on connecting point on the cylinder head cover Vehicles with code (487) Active Body Control (ABC)
54 Detach return line (20) at power steering expansion reservoir   AR46.25-P-1000SXH
55 Reduce fuel pressure through service valve   AR07.03-P-1460-01VA
TORQUE SPECIFICATION Engine 276 *BA07.03-P-1007-01D
TORQUE SPECIFICATION Engines 157, 278 *BA07.03-P-1007-01E
SPECIAL TOOL Fig 8
56 Detach fuel line (8) on fuel distributor (9) IMPORTANT Seal openings using stop plugs.
TORQUE SPECIFICATION Engine 276 *BA07.03-P-1001-01D
TORQUE SPECIFICATION Engines 157, 278 *BA07.03-P-1001-01E
SPECIAL TOOL Fig 9
57 Support front axle carrier (31) with lifting platform and aggregate mount and secure whole engine transmission unit against slipping and falling down with a tensioning strap IMPORTANT Ensure even alignment of support plates.
Major assembly lifting platform/scissors-type pallet forklift
58 Remove screw/bolts (23a) and rear engine crossmember (23) with rear engine mount. Vehicles without 4MATIC AR22.10-P-1180SX
    Vehicles with 4MATIC AR22.10-P-1180SW
NOTES Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
59 Detach drive shaft (22) from transmission output flange/transfer case NOTES Apply colored identification of propeller shaft position relative to transmission output flange in order when installing to reproduce installation position created at plant as otherwise drive line vibrations can occur. AR41.10-P-0050-02SX
IMPORTANT Mount propeller shaft (22) on transmission output flange. AR41.10-P-0050-07SX
TORQUE SPECIFICATION *BA41.10-P-1001-01H
60 Remove screw/bolts (31a) of longitudinal members IMPORTANT Replace bolts (31a).
Vehicles without 4MATIC AR33.10-P-0100SX
Vehicles with 4MATIC AR33.10-P-0100SYZ
61 Lower engine transmission unit with front axle carrier (31) IMPORTANT Ensure that engine does not touch any body parts or components and that no lines are pinched or damaged.
62 Install in the reverse order
63 Inspect cooling system for leaks   AR20.00-P-1010SX
64 Fill and bleed active body control (ABC) Vehicles with code (487) Active Body Control (ABC) AR32.50-P-0021SX
65 Fill and bleed the power steering   AR46.30-P-0010SX
66 Correct transmission oil level Vehicles without 4MATIC AR27.00-P-0270W
Vehicles with 4MATIC AR27.00-P-0270SYZ
67 Perform wheel alignment check   AR40.20-P-0200SX
68 Read out fault memory with STAR DIAGNOSIS and erase if necessary   AD00.00-P-2000-04A
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.
AS00.00-Z-0005-01A
69 Carry out engine test run, checking the engine for proper operation and leaks
INJECTORS, INJECTION VALVES, LINES

Number Designation Engine 157 Engine 278
BA07.03-P-1001-01E Union nut, fuel line to fuel distributor Nm 22 22
BA07.03-P-1007-01E Protective cap on service valve Plastic Nm 2 2
Metal Nm 15 15
INJECTORS, INJECTION VALVES, LINES

Number Designation Engine 276
BA07.03-P-1001-01D Union nut, fuel line to fuel distributor Nm 22
BA07.03-P-1007-01D Protective cap on service valve Plastic Nm 2
Metal Nm 15
PROPELLER SHAFT

Number Designation Model 216 Model 221
BA41.10-P-1001-01H Self-locking nut, flex disk to transmission or front propeller shaft M12 Nm 68 68
HOUSING

Number Designation Transmission 722.9
BA27.40-P-1014-01A Screw/bolt, heat shield to transmission housing Nm 9
WHEEL LOCATION, HUB

Number Designation Model 216 with 4MATIC Model 221.08/09/18/19 with 4MATIC without code Z07
BA33.20-P-1007-01M Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle Stage 1 Nm 20 20
Stage 2 ∠° 90 90
FRONT AXLE BRAKE CALIPER

Number Designation Model 216 except model 216.374/377/379 Model 221 except model 221.074/077/174/177/179
BA42.10-P-1005-10M Self-locking bolt, caliper support to steering knuckle Nm 180 180
SUSPENSION STRUTS

Number Designation Model 216 with 4MATIC Model 221 with 4MATIC
BA32.25-P-1007-04L Nut, front suspension strut to spring control arm M14 Nm 110 110
M16 Nm - -
FRONT AXLE STABILIZER BAR

Number Designation Model 216 Model 221
BA32.20-P-1001-02O Nut, link rod to stabilizer bar Nm 90 90
Fig 7: Identifying Holding Device (129 589 01 21 00)
G07279187Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Pressure Hose (119 589 04 63 00)
G07742723Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Set Of Stop Plugs (129 589 00 91 00)
G07742724Courtesy of MERCEDES-BENZ USA
Fig 10: Identifying Detaching Tool (230 589 01 33 00)
G07300862Courtesy of MERCEDES-BENZ USA
Fig 11: Identifying Hand Pump (210 589 00 71 00)
G07742725Courtesy of MERCEDES-BENZ USA
Fig 12: Identifying Puller (140 589 00 33 00)
G07492442Courtesy of MERCEDES-BENZ USA
Fig 13: Identifying Thrust Washer M 10X1.5 (210 589 04 63 00)
G07304530Courtesy of MERCEDES-BENZ USA
