Overview of system components, instrument cluster (IC) component description - GF54.30-P-9996FQ
MODEL 218

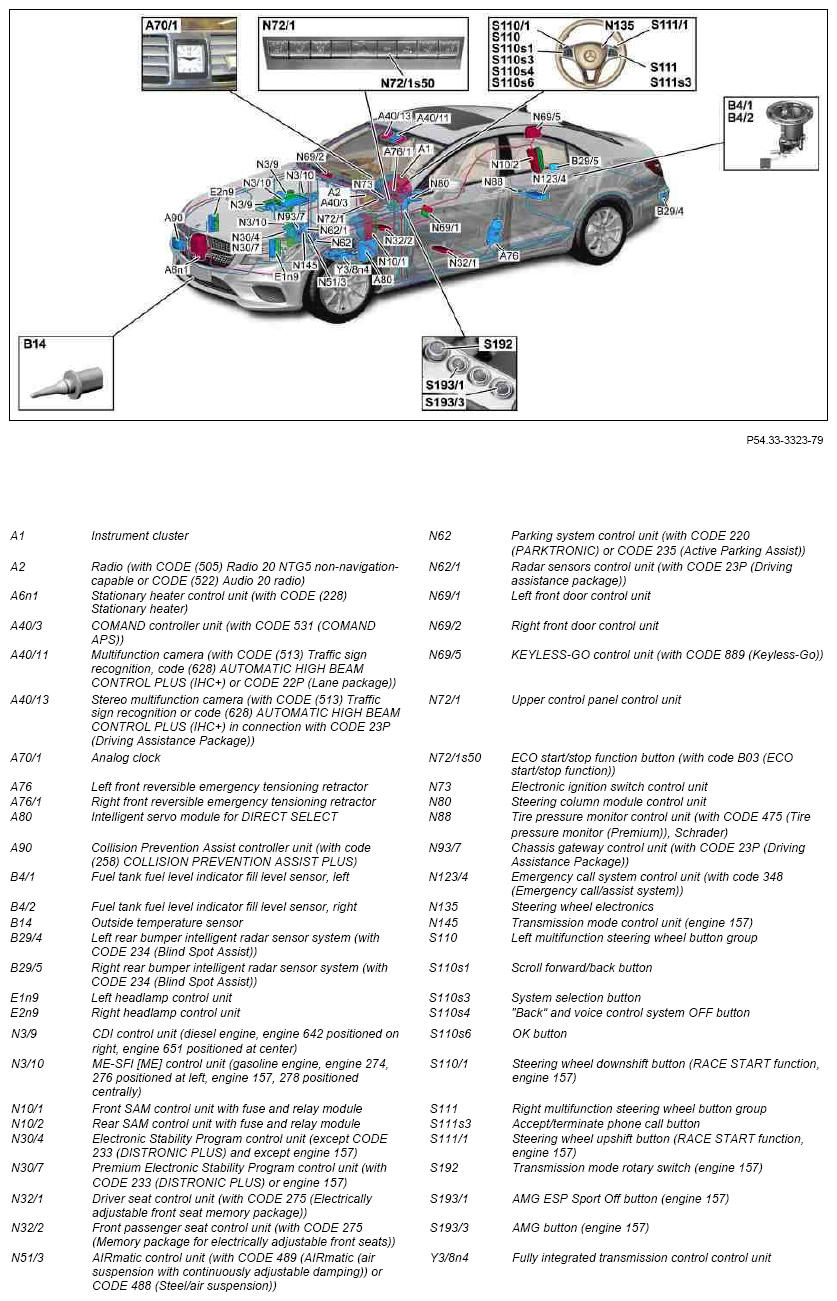

As of 01.09.2014, shown on model 218.3
On model 218.9 with CODE 550 (Trailer hitch) the trailer recognition control unit (N28/1), not shown here, is also installed.

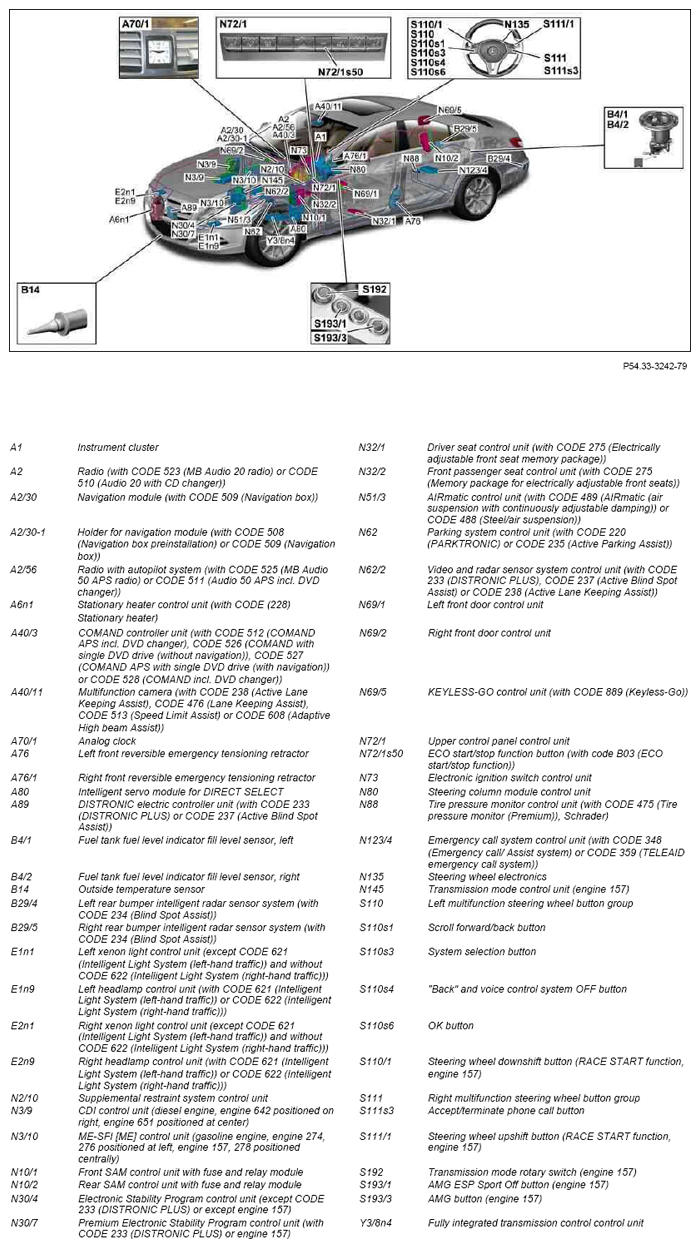

Up to 31.08.2014, shown on model 218.3
On model 218.9 with CODE 550 (Trailer hitch) the trailer recognition control unit (N28/1), not shown here, is also installed.

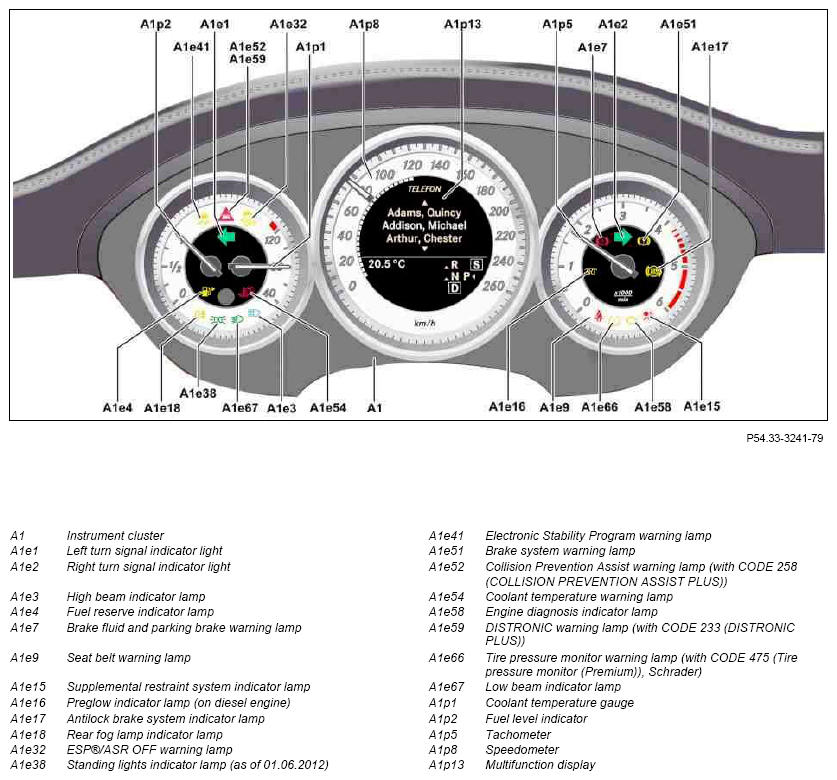

Illustration shows model 218.323
The following components are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)

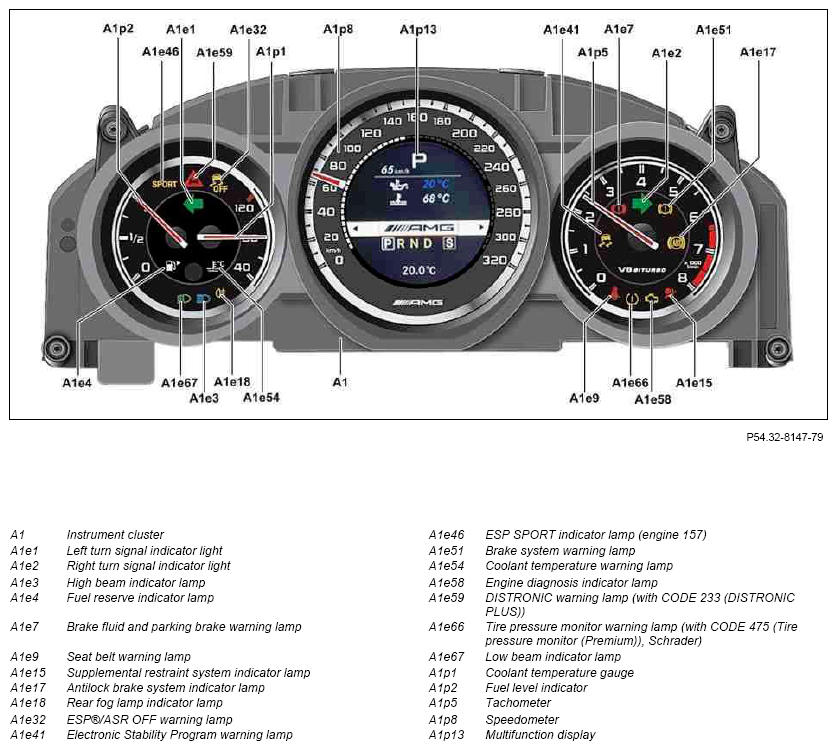

Shown here model 218.374 up to 31.05.2012
The following components are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ |
| Component description for the radio | MODEL 218 up to model year 2015 with CODE 510 (Audio 20 with CD changer) MODEL 218 up to model year 2015 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122FQ |
| MODEL 218 as of model year 2015 with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 218 as of model year 2015 with CODE 522 (Audio 20 radio) A2 |
GF82.60-P-3122FQM | |
| Cradle for navigation module, component description | MODEL 218 up to model year 2015 with CODE 508 (Navigation box preinstallation) with CODE 509 (Navigation box) A2/30-1 |
GF82.85-P-3137FQ |
| Component description for radio with auto pilot system | MODEL 218 with CODE 511 (Audio 50 APS with DVD changer) MODEL 218 with CODE 525 (MB Audio 50 APS radio) A2/56 |
GF82.61-P-4112FQ |
| Stationary heater control unit, component description | MODEL 218 with CODE 228 (Auxiliary heater) A6n1 |
GF83.70-P-4066FQ |
| Component description for COMAND controller unit | MODEL 218 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) MODEL 218 up to model year 2013 with CODE 526 (COMAND with single DVD drive (without navigation)) MODEL 218 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 218 up to model year 2013 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136FQ |
| MODEL 218.3 as of model year 2013 up to model year 2015 with CODE 512 (COMAND APS with DVD changer) MODEL 218.3 as of model year 2013 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 218.3 as of model year 2013 up to model year 2015 with CODE 528 (COMAND with DVD changer) MODEL 218.9 up to model year 2015 with CODE 512 (COMAND APS with DVD changer) MODEL 218.9 up to model year 2015 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 218.9 up to model year 2015 with CODE 528 (COMAND with DVD changer) A40/3 |
GF82.85-P-3136FQB | |
| MODEL 218 as of model year 2015 with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136FQM | |
| Component description for multifunction camera | MODEL 218 as of model year 2015 with CODE 22P (Lane tracking package) MODEL 218 as of model year 2015 with CODE 23P (Driving Assistance package Plus) MODEL 218 as of model year 2015 with CODE 513 (Road sign recognition system) MODEL 218 as of model year 2015 with CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+)) MODEL 218 up to model year 2015 with CODE 476 (Lane keeping assist) MODEL 218 up to model year 2015 with CODE 513 (Speed Limit Assist) MODEL 218 up to model year 2015 with CODE 608 (Adaptive Highbeam Assist) A40/11, A40/13 |
GF54.21-P-3300FQ |
| Component description for front reversible emergency tensioning retractors | A76, A761 | GF91.40-P-4020FQ |
| Component description for intelligent servo module for DIRECT SELECT | MODEL 218 with TRANSMISSION 722.9 (except 722.931) A80 |
GF27.19-P-4020AHQ |
| MODEL 218 with TRANSMISSION 722.931 A80 |
GF27.19-P-4020AHR | |
| Component description for DISTRONIC electric controller unit | MODEL 218 with CODE 233 (DISTRONIC PLUS) MODEL 218 with CODE 237 (Active Blind Spot Assist) A89 |
GF30.30-P-3213FQ |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 218 as of model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST PLUS) A90 |
GF30.30-P-3214FQM |
| Component description for intelligent radar sensor control unit | MODEL 218 with CODE 234 (Blind Spot Monitoring) B29/4, B29/5 |
GF30.30-P-3305FQ |
| Component description for Xenon light control unit | MODEL 218 without CODE 621 (Intelligent Light System (left-hand traffic)) without CODE 622 (Intelligent Light System (right-hand traffic)) E1n1, E2n1 |
GF82.10-P-2119FQ |
| Headlamp control unit, component description | MODEL 218 as of model year 2015 with CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) without CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) without CODE 641 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for left-hand traffic) without CODE 642 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for right-hand traffic) MODEL 218 as of model year 2015 with CODE 632 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for right-hand traffic) without CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) without CODE 641 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for left-hand traffic) without CODE 642 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for right-hand traffic) MODEL 218 up to model year 2015 with CODE 621 (Intelligent Light System (left-hand traffic)) MODEL 218 up to model year 2015 with CODE 622 (Intelligent Light System (right-hand traffic)) E1n9, E2n9 |
GF82.10-P-2020FQ |
| MODEL 218 as of model year 2015 with CODE 640 (Full LED USA incl. ACTIVE MULTIBEAM LED) without CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) without CODE 632 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for right-hand traffic) MODEL 218 as of model year 2015 with CODE 641 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for left-hand traffic) without CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) without CODE 632 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for right-hand traffic) MODEL 218 as of model year 2015 with CODE 642 (Full LED headlamps incl. ILS and ACTIVE MULTIBEAM LED (USP!) incl. new lamp design, dynamic LED for right-hand traffic) without CODE 631 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for left-hand traffic) without CODE 632 (Full LED headlamps (without ILS), daytime running lamps integrated in headlamps, for right-hand traffic) E1n9, E2n9 |
GF82.10-P-2020FQA | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FQ |
| Component description for CDI control unit | MODEL 218 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG |
| MODEL 218 with ENGINE 651.9 N3/9 |
GF07.16-P-6000OM | |
| Component description for ME-SFI (ME) control unit | MODEL 218 with ENGINE 274.9 N3/10 |
GF07.61-P-6000MRB |
| MODEL 218 with ENGINE 276.8 as of model year 2015 N3/10 |
GF07.61-P-6000MMP | |
| MODEL 218 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM | |
| MODEL 218 with ENGINE 157.9 MODEL 218 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FQ |
| Component description for trailer recognition control unit | MODEL 218.9 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050FQ |
| Component description for Electronic Stability Program control unit | MODEL 218 up to model year 2014 N30/4, N30/7 |
GF42.45-P-5119FQ |
| MODEL 218 as of model year 2014 N30/4, N30/7 |
GF42.45-P-5119FQA | |
| Component description for driver seat control unit | MODEL 218 with CODE 275 (Electrically adjustable front seats memory package) N32/1 |
GF91.29-P-5231FQ |
| Component description for front passenger seat control unit | MODEL 218 with CODE 275 (Electrically adjustable front seats memory package) N32/2 |
GF91.29-P-5241FQ |
| AIRmatic control unit, component description | MODEL 218 up to model year 2014 with CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) MODEL 218 up to model year 2014 with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) without CODE 488 (Steel/air suspension) N51/3 |
GF32.22-P-5109FQ |
| Parking system control unit component description | MODEL 218 up to model year 2015 with CODE 220 (PARKTRONIC) MODEL 218 up to model year 2015 with CODE 235 (Active Park Assist) N62 |
GF54.65-P-5002FQ |
| MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist) N62 |
GF54.65-P-5002FQM | |
| Component description for radar sensors control unit | MODEL 218 as of model year 2015 with CODE 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301FQM |
| Component description for video and radar sensor system control unit | MODEL 218 up to model year 2015 with CODE 233 (DISTRONIC PLUS) MODEL 218 up to model year 2015 with CODE 237 (Active Blind Spot Assist) MODEL 218 up to model year 2015 with CODE 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304FQ |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FQ |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FQ |
| Component description for KEYLESS-GO control unit | MODEL 218 with CODE 889 (Keyless Go) N69/5 |
GF80.61-P-4204FQ |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FQ |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FQ |
| Component description for tire pressure monitor control unit | MODEL 218 up to model year 2014 with CODE 475 (Tire pressure monitor (premium)) Schrader N88 |
GF40.15-P-5124FQ |
| MODEL 218 as of model year 2014 with CODE 475 (Tire pressure monitor (premium)) Schrader N88 |
GF40.15-P-5124FQA | |
| Component description for chassis gateway control unit | MODEL 218 as of model year 2015 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010FQ |
| Component description for emergency call system control unit | MODEL 218 with CODE 359 (TELE AID emergency call system) N123/4 |
GF82.95-P-3212FQU |
| MODEL 218 with CODE 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212FQV | |
| Component description for transmission mode control unit | MODEL 218 with TRANSMISSION 722.931 N145 |
GF27.19-P-1350AHR |
| Component description for fully integrated transmission control unit | MODEL 218 with TRANSMISSION 722.9 (except 722.931) Y38n4 |
GF27.60-P-5165AHQ |
| MODEL 218 with TRANSMISSION 722.931 Y38n4 |
GF27.60-P-5165AHR | |
| MODEL 218 with TRANSMISSION 725.0 Y38n4 |
GF27.60-P-5165ANB | |
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997FQ |
