Component description for transmission mode control unit - GF27.19-P-1350AHR
TRANSMISSION 722.931 in MODEL 218

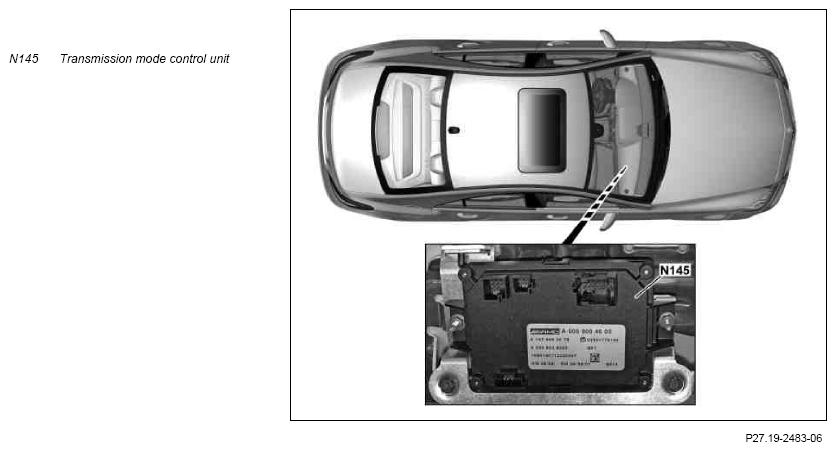

Top view of front passenger footwell, model 218.3
Location
The transmission mode control unit is on the right under the step plate in the front passenger footwell.
Task
General
On the transmission mode control unit, up to 5 modular buttons or sensors can be directly connected. They are read in by the transmission mode control unit directly or via the AMG DRIVE UNIT LIN (LIN B11), processed digitally and placed on the chassis CAN (CAN E) and on the drive train CAN (CAN C).
The transmission mode control unit contains memory functions for storing states (e.g. settings). Apart from this, the transmission mode control unit is also equipped with an internal fault memory.
Input and output signals
The transmission mode control unit evaluates the following input signals and issues the corresponding output signals:
- Direct input signals
- Direct output signals
- CAN input signals
- CAN output signals
- AMG DRIVE UNIT LIN signals
Direct input signals
- Terminal 30
- Circuit 31
- Status of AMG ESP Sport Off button (S193/1)
- Status of AMG suspension button (S193/2)
- Status of AMG button (S193/3)
Direct output signals
- None
CAN input signals
Instrument cluster (A1)
- Circuit 58, dimmed
Electronic ignition lock control unit (N73)
- Circuit 50 and circuit 15, signal
Front SAM control unit with fuse and relay module (N10/1)
- Diagnosis communication
CAN output signals
Instrument cluster (A1)
- Transmission mode selection, status of AMG ESP Sport Off button, status of AMG suspension button and status of AMG button
Electronic Stability Program control unit (N30/4) (except code (233) DISTRONIC PLUS) or Electronic Stability Program Premium control unit (N30/7) (for code (233) DISTRONIC PLUS)
- Status of AMG ESP Sport Off button
AIRmatic control unit (N51/3) (with code (488) Steel/air suspension)
- Status of AMG suspension button
ME-SFI [ME] control unit (N3/10)
- Transmission mode selection
Control unit for fully integrated transmission control (Y3/8n4)
- Transmission mode selection
Front SAM control unit with fuse and relay module (N10/1)
- Diagnosis communication
AMG DRIVE UNIT LIN signals
Transmission mode rotary switch (S192)
- Transmission mode selection "RS", "C", "S", "S +" and "M".
| Designation | Unit | Value | Tolerance range | Remarks | |
|---|---|---|---|---|---|
| Transmission mode control unit (N145) | |||||
| Power supply | VV | 8 - 12 | |||
| Overvoltage | VV | 18 | For 60 min. | ||
| Jump start | VV | 27 | For 1 min. | ||
| Load Dump | VV | 32 | For 400 ms | ||
| Power consumption: | No-load current mode | mA | 0, 1 - 0, 5 | ||
| mA | 80 - 180 | ||||
| Reverse polarity protection | VV | 16 | For maximal 1 min. | ||
| Flash capability | Yes | ||||
| Coding capability | No | ||||
| Transmission mode rotary switch (S192) | |||||
| Type | Rotary switch | ||||
| Power supply | VV | 12 | |||
| Power consumption | mA | 500 | |||
| Signal transmission | Over AMG DRIVE UNIT-LIN (LIN B11) | ||||
| AMG ESP sport off button (S193/1) | |||||
| Type | Push-button | ||||
| Signal high | VV | 12 | |||
| Signal low | VV | 0 | |||
| Resistance: | non-actuated actuated | Ω | ∞ | ||
| Ω | 0 | ||||
| AMG suspension button (S193/2) | |||||
| Type | Push-button | ||||
| Signal high | VV | 12 | |||
| Signal low | VV | 0 | |||
| Resistance: | non-actuated actuated | Ω | ∞ | ||
| Ω | 0 | ||||
| AMG button (S193/3) | |||||
| Type | Push-button | ||||
| Signal high | VV | 12 | |||
| Signal low | VV | 0 | |||
| Resistance: | non-actuated actuated | Ω | ∞ | ||
| Ω | 0 | ||||
| Wiring diagram for drive unit control unit | N145 | PE54.21-P-2128-97XAA |
