Disassemble/Assemble Outside Mirror - Ar88.70-D-9030M
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Model 906

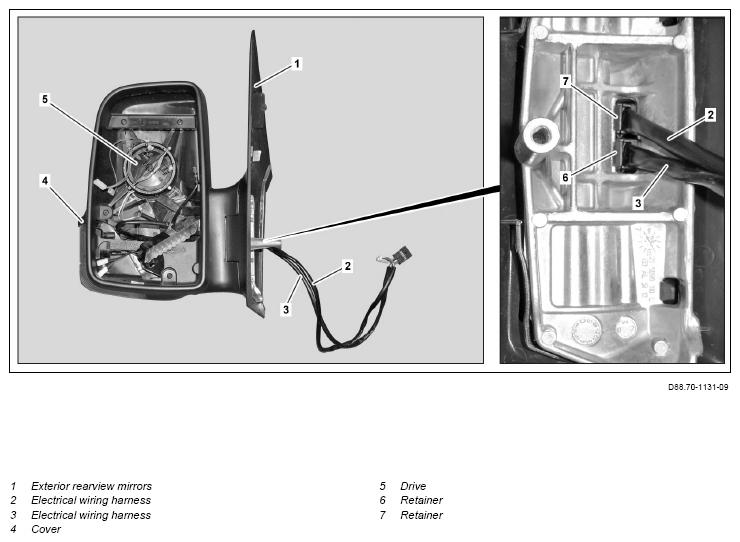

Shown on left outside mirror (1), model 906 with code EZ8 (PARKTRONIC), code F68 (Electrically adjustable and heated outside mirror) and code JA7 (Blind spot assist)
| Remove | |||
| 1 | Completely remove outside mirror (1) | If the shaft or the electrical wiring harnesses (2, 3) of the outside mirror (1) are replaced. | AR88.70-D-9000H |
| Disassemble/assemble | |||
| 2 | Remove both mirror glasses | AR88.70-D-9020B | |
| 3 | Remove cover (4) | AR82.25-D-4727M | |
| 4 | Remove drive (5) | AR88.70-D-9060M | |
| 5 | Loosen retainer (6) and remove electrical wiring harness (3) | ||
| 6 | Loosen retainer (7) and remove electrical wiring harnesses (2) | ||
| 7 | Assemble in the reverse order | ||
| Install | |||
| 8 | Install outside mirror (1) | If the outside mirror (1) is removed. | AR88.70-D-9000H |
| Check | |||
| 9 | Check components of outside mirror (1) for proper function | ||
| Clean | |||
| 10 | Clean outside mirror (1) |
