Remove/Install Glass Adjustment Drive - Ar88.70-D-9060M
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Model 906

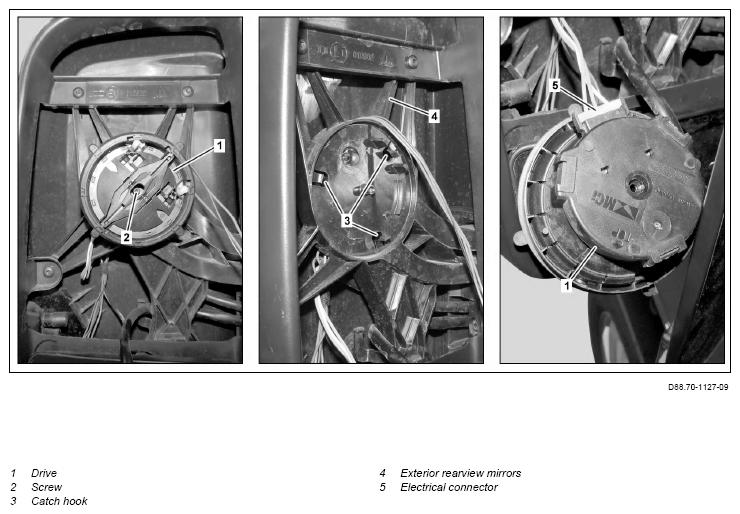

Shown on left outside mirror (4), model 906 with code JA7 (Blind spot assist)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove upper mirror glass from corresponding outside mirror (4) | Model 906 except code EZ8 (PARKTRONIC) except code JA7 (Blind Spot Monitoring) |
AR88.70-D-9020B |
| 1.2 | Remove upper mirror glass from corresponding outside mirror (4), disconnect electrical connections from mirror heater and allow upper mirror glass to hang down on electrical wiring harness | Model 906 with code EZ8 (PARKTRONIC) Model 906 with code JA7 (Blind Spot Monitoring) |
AR88.70-D-9020B |
| 2 | Unscrew bolt (2) | ||
| 3 | Carefully loosen catch hooks (3) and remove drive (1) from outside mirror (4) until electrical connector (5) is accessible | Release catch hooks (3) carefully. Otherwise the catch hooks (3) can bread off of the outside mirror (4). |
|
| 4 | Disconnect electrical connector (5) and remove drive (1) | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Check drive (1) for proper function | ||
| Mirror lens adjustment left/right outside mirror, function | GF88.79-D-2008H |
