Remove/Install Turn Signal Lamp In Outside Mirror - Ar82.25-D-4727M

Model 906

Courtesy of MERCEDES-BENZ USA

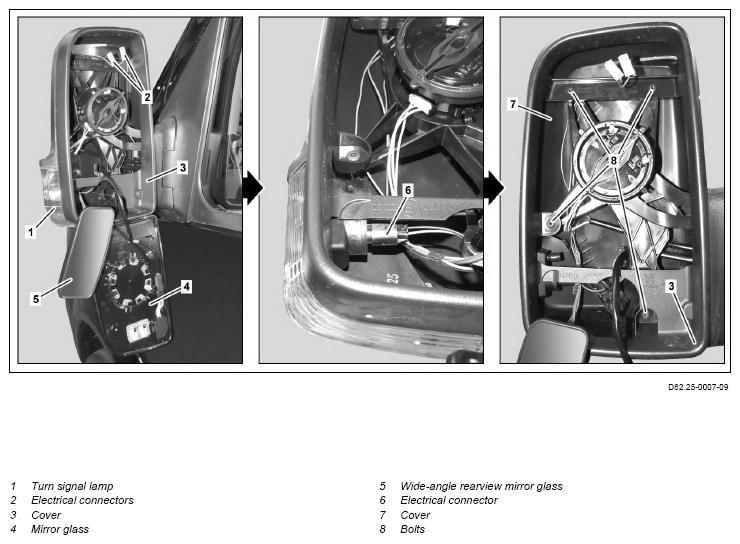

Shown on the left turn signal lamp (1) on model 906 with code JA7 (Blind Spot Assist) and with code F68 (Electrically adjustable and heated outside mirrors)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove wide-angle rearview mirror glass (5) from respective outside mirror	Model 906 except code F68 (Exterior mirrors, electr. adjustable and heated)	AR88.70-D-9020B
1.2	Remove wide-angle rearview mirror glass (5) from respective outside mirror and leave it hanging from the electrical wiring harness	Model 906 with code F68 (Exterior mirrors, electr. adjustable and heated) Do not separate the electrical connectors.	AR88.70-D-9020B
2.1	Remove mirror glass (4)	Model 906 except code EZ8 (PARKTRONIC) except code JA7 (Blind Spot Monitoring)	AR88.70-D-9020B
2.2	Remove mirror glass (4), disconnect the electrical connectors (2) and leave the mirror glass (4) hanging from the electrical wiring harness	Model 906 with code EZ8 (PARKTRONIC) Model 906 with code JA7 (Blind Spot Monitoring)	AR88.70-D-9020B
3	Disconnect electrical connector (6)
4	Remove bolt (8)
5	Detach cover (7) with turn signal lamp (1) from outside mirror	Cover (3) remains on the outside mirror. Make sure that cover (7) and cover (3) are in the correct assembly positions.
6	Remove turn signal lamp (1) from cover (7)	Ensure correct assembly position of guides (9).
7	Remove the lamp carrier (10) from the turn signal lamp (1)	If turn signal lamp (1) or lamp carrier (10) are replaced.
8	Install in the reverse order
	Check
9	Run function test on turn signal lamp (1)
