Remove/Install Mirror Glass - Ar88.70-D-9020B
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
Model 906

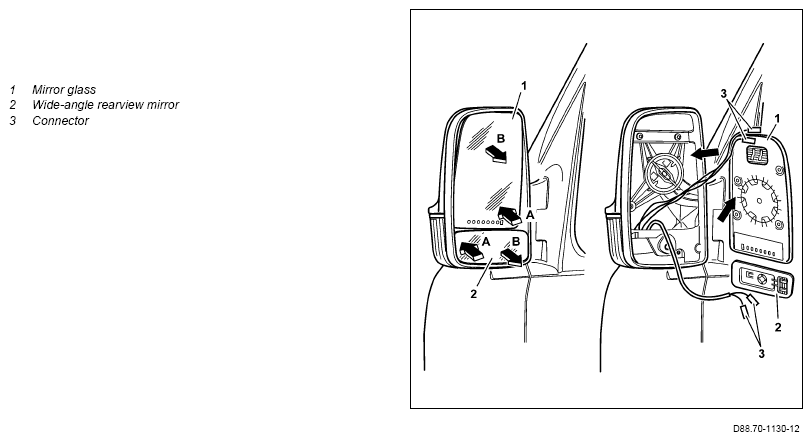

Vehicle up to 29.03.2010, shown with code F68 (Electrically adjustable and heated outside mirror)

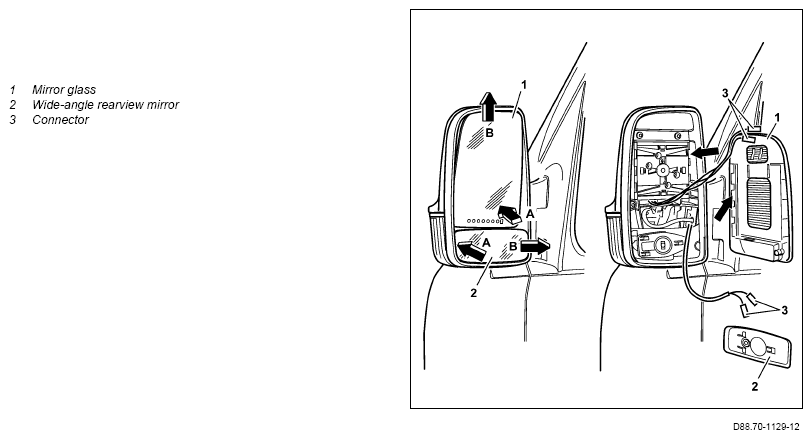

Vehicles as of 30.03.2010, shown with code F68 (Electrically adjustable and heated outside mirror)

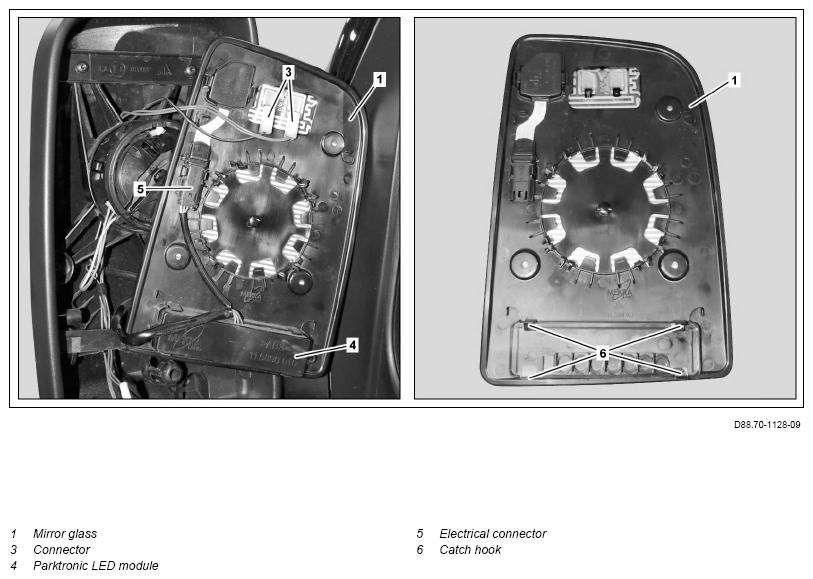

Shown on model 906 with code EZ8 (PARKTRONIC), code F68 (Electrically adjustable and heated outside mirror) and with code JA7 (Blind spot assist)
| Remove/install | ||
| 1 | Push mirror glass (1) downward toward front (arrow A) | |
| 2 | Pull out mirror glass (1) in direction of arrow (arrow B) | |
| 3 | Unplug connectors (3) at mirror glass (1) | Model 906 with code F68 (Exterior mirrors, electr. adjustable and heated) |
| 4 | Loosen catch hooks (6), remove PARKTRONIC LED module (4) and allow to hang down on electrical wiring harness | Model 906 with code EZ8 (PARKTRONIC) |
| 5 | Disconnect electrical connection (5) | Model 906 with code JA7 (Blind Spot Monitoring) |
| 6 | Push wide-angle rearview mirror (2) toward front to end stop at outside (arrow A) | |
| 7 | Pull out wide-angle rearview mirror (2) toward rear on inside (arrow B) | |
| 8 | Unplug connectors (3) from wide-angle rearview mirror (2) | Model 906 with code F68 (Exterior mirrors, electr. adjustable and heated) |
| 9 | Install in the reverse order | |
| Check | ||
| 10 | Check outside mirror (1) and wide-angle rearview mirror (2) for proper function | |
| Clean | ||
| 11 | Clean outside mirror (1) and wide-angle rearview mirror (2) |
