Remove/Install Complete Outside Mirror - Ar88.70-D-9000H
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2018 Mercedes-Benz Sprinter 3500XD, 2018 Mercedes-Benz Sprinter 3500, 2018 Mercedes-Benz Sprinter 2500, 2017 Mercedes-Benz Sprinter 3500XD, and 2017 Mercedes-Benz Sprinter 3500. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 906
| Remove/install | |||

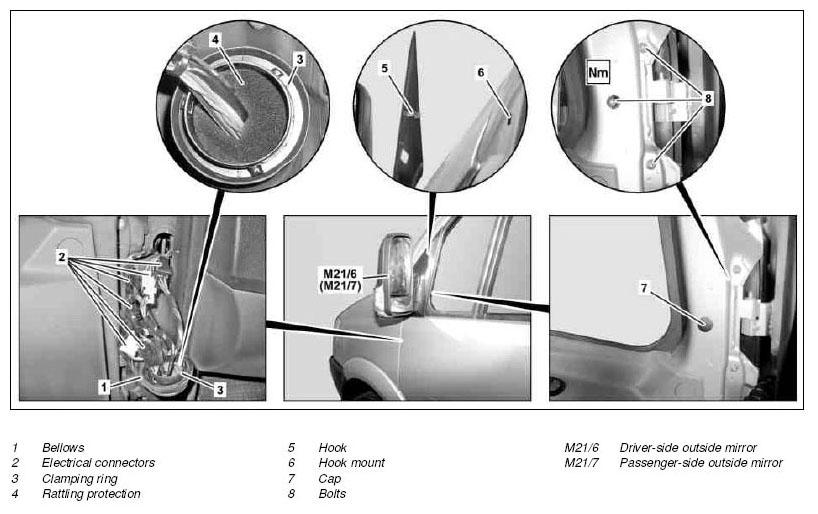

| 1 | Remove boot (1) from A-pillar and door | ||
| 2 | Remove rattling protection (4) from boot (1) | ||
| 3 | Separate electrical connectors (2) | ||
| 4 | Remove bellows (1) | ||
| 5 | Unclip clamping rings (3) from A-pillar and door | ||
| 6 | Fasten guide cable on wiring harness for driver outside mirror (M21/6) or passenger outside mirror (M21/7) | ||
| 7 | Unclip cover cap (7) | ||
| 8 | Remove screws/bolts (8) | ||
| *BA88.70-N-1002-01E | |||
| 9 | Slide driver-side outside mirror (M21/6) or passenger-side outside mirror (M21/7) upward out of hook mount (6) of hook (5) and pull off of door | ||
| 10 | Pull guide cable through door until both ends extend the same distance from the door | ||
| 11 | Disconnect cable set from guide cable | ||
| 12 | Install in the reverse order | ||
| Checking | |||
| 13 | Check driver outside mirror turn signal lamp and passenger outside mirror turn signal for proper function | ||
| 14 | Check electric mirror adjustment for proper function | with code (F68) Heated and electrically adjustable left and right outside rearview mirrors | |
| 15 | Check function of Parktronic system (PTS) | With code (EZ8) Parktronic system (PTS) |
OUTSIDE MIRRORS
| Number | Designation | Model 906 | ||
|---|---|---|---|---|
| BA88.70-N-1002-01E | Bolt, outside mirror to door | M6 | Nm | 8 |
