Disassemble/assemble front door lining - AR72.10-P-1030SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

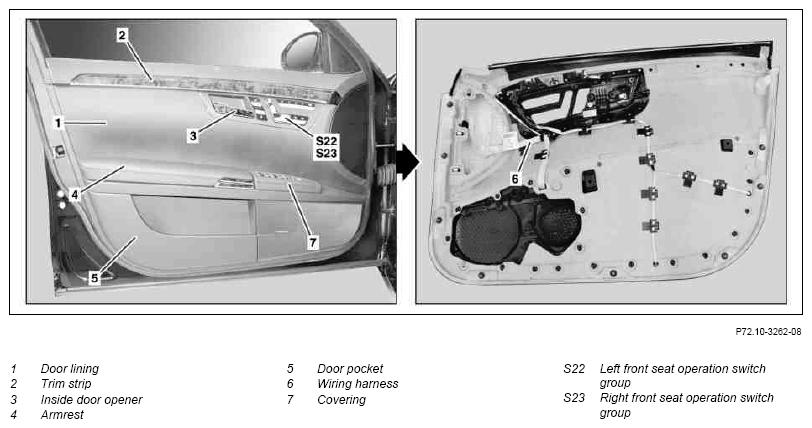

Fig 1: Disassembling/Assembling Front Door Lining

Courtesy of MERCEDES-BENZ USA

Shown on left door lining

	Disassemble/assemble
1	Remove door lining (1) from front door	Lay door lining (1) front side down on suitable subsurface to prevent damage	AR72.10-P-1000SX
2	Remove door pocket (5) front door lining (1)		AR72.10-P-1045SX
3	Remove trim strip (2) from front door lining (1)		AR72.10-P-1050SX
4	Remove inside door opener (3) from front door lining (1)		AR72.10-P-2420SX
5	Remove electric wiring harness (6) at rear of door lining (1).
6	Assemble in reverse order
