Remove/install front door inside door opening - AR72.10-P-2420SX
MODEL 221.0/1
| Remove/install | |||

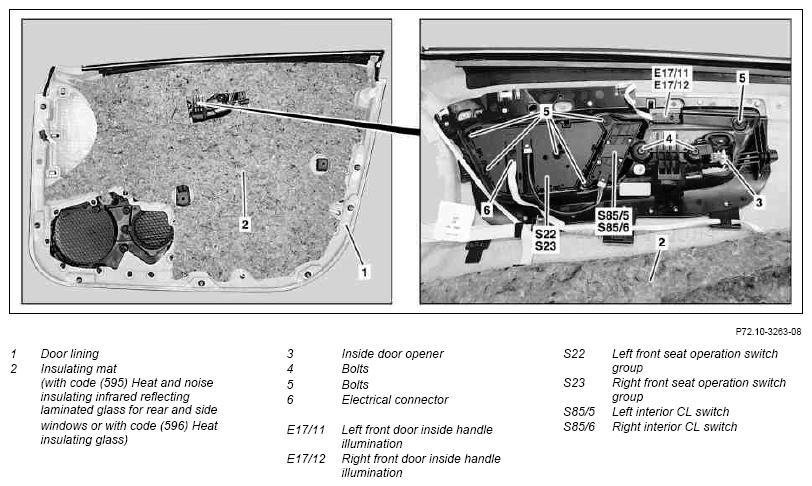

| 1 | Remove trim strip from door lining (1) on front door | AR72.10-P-1050SX | |
| 2.1 | Loosen insulating mat (2) on door lining (2) until inside door opener (3) is accessible. | On vehicles with code (595) Heat and noise insulating infrared reflecting laminated glass for rear and side windows or with code (596) Heat insulating glass | |
| *BR00.45-Z-1002-02A | |||
| 3 | Unscrew bolts (4, 5) | Rechargeable drill/screwdriver | |
| 4 | Remove left front seat operation switch group (S22) with left interior CL switch (S85/5) or right front seat operation switch group (S23) with right interior CL switch (S85/6) from door lining (1). | ||
| 5 | Remove inside door opener (3) from door lining (1). | ||
| 6 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1002-02A | Adhesive Terokal 2444 | A 000 989 92 71 |
