Remove/install trim strip on front door lining - AR72.10-P-1050SX

MODEL 221.0/1

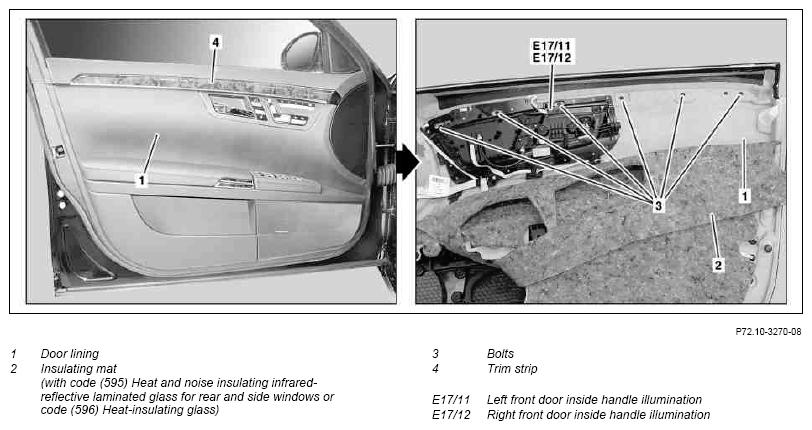

Fig 1: Identifying Front Door Lining Trim Strip Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door liner (1) from front door	Lay door lining (1) front side down on suitable subsurface to prevent damage
		Vehicles without code (Z07) Top protection	AR72.10-P-1000SX
		Vehicles with code (Z07) Top protection	AR72.10-P-1000SXS
2.1	Loosen sound deadening mat (2) from door lining (1) until bolts (3) are accessible.	On vehicles with code (595) Heat and noise insulating infrared reflecting laminated glass for rear and side windows or with code (596) Heat insulating glass
		Glue insulating mat (2) to door lining (1).	*BR00.45-Z-1002-02A
3	Remove left front door inside handle illumination (E17/11) or right front door inside handle illumination (E17/12)
4.1	Disconnect electrical connector from trim strip (4).	On vehicles with code (876) interior light package
5	Remove bolts (3)
6	Remove trim strip (4)
7	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1002-02A	Adhesive Terokal 2444	A 000 989 92 71
