Remove/install front door lining - AR72.10-P-1000SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

Fig 1: Identifying Front Door Lining Remove/Install Component (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Front Door Lining Remove/Install Component (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Wind crank window fully down

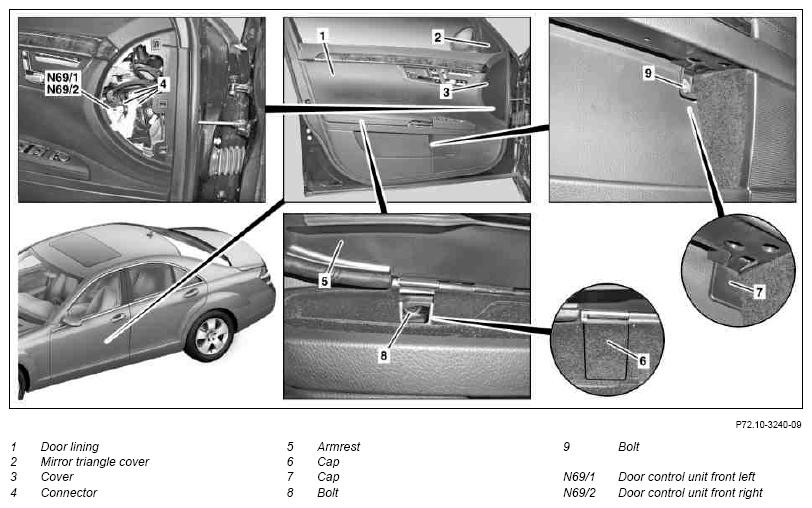

2	Loosen mirror triangle cover (2) and lay down to side with line connected.		Fig 3
3	Remove cover (3) from door lining (2)		Fig 3
4	Disconnect connector (4) from left front door control module (N69/1) or right front door control module (N69/2)
5	Open armrest (5).
6	Slide cover (6) upward and remove
7	Unclip covering (7)
8	Unscrew bolts (8, 9)	Apply screw securing agent to bolt threads (8, 9).	Fig 3
			*BA72.10-P-1009-01Q
		Loctite 262	*BR00.45-Z-1059-02A
9	Press door lining (1) on mounting clips off of inner door panel	Move long wedge directly onto each mounting clips and ensure that retaining lugs on mounting clips do not tear out of door lining (1).
			Fig 3

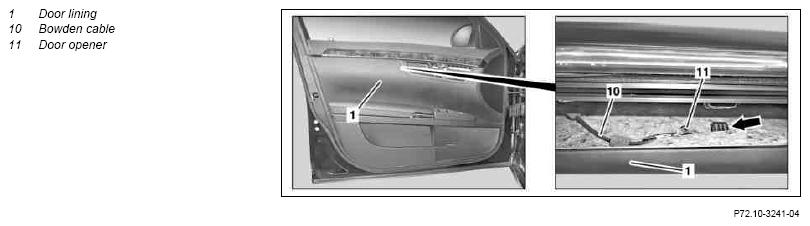

10	Remove door lining (1) upward out of guide (arrow) until Bowden cable (10) is accessible.
11	Unhook Bowden cable (10) from inner door opener (11)
12	Remove door lining (1)
13	Install in the reverse order

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
