Retrofit electrical preinstallation for rental vehicles - AN82.25-P-2000SX

MODEL 221.0##/1## 1# without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 550 (Trailer coupling) without CODE 810 (Sound system) without CODE 990 (AMG vehicles) except 4-MATIC vehicles

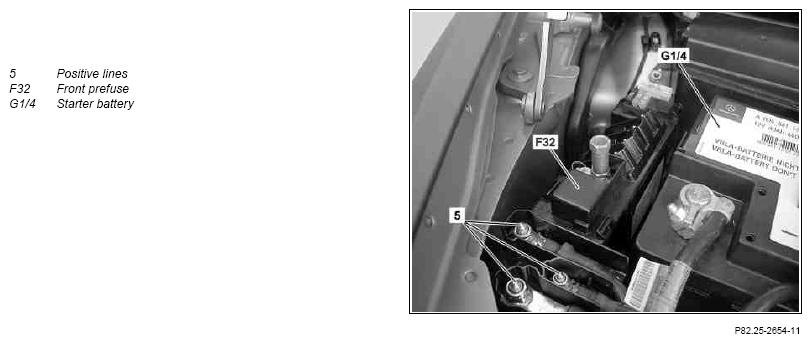

Fig 1: Identifying Rental Vehicles Retrofit Electrical Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

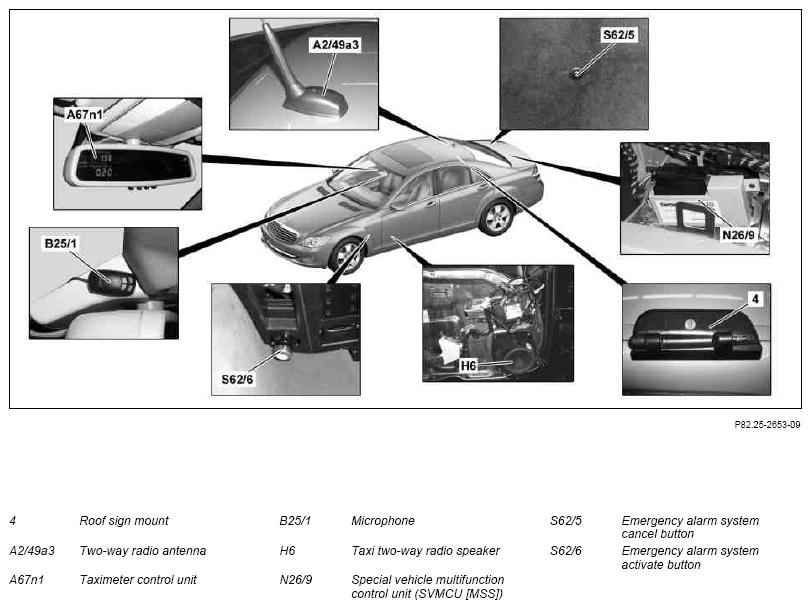

Fig 2: Identifying Rental Vehicles Retrofit Electrical Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

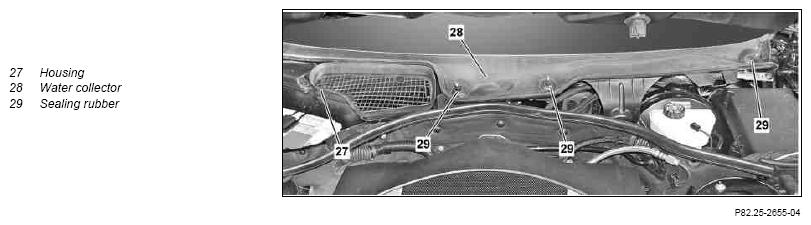

Fig 3: Identifying Rental Vehicles Retrofit Electrical Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Notes on installing rental vehicle equipment		AH82.25-P-0001-02SX
	Remove
1	Remove left and right front seats
			AR91.10-P-1000SX
2	Remove left and right rear seat armrest
		MODEL 221.0## 1# with CODE 223 (Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints), MODEL 221.1## 1# with CODE 223 (Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints) with CODE 224 (Design individual rear seat system)	AR91.12-P-1620SX
		MODEL 221.0## 1# except CODE 223 (Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints), MODEL 221.1## 1# except CODE 223 (Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints), except CODE 224 (Design individual rear seat system) Only remove the left rear seat backrest if the customer wants a two-way radio antenna (A2/49a3) on the vehicle roof, and/or  on vehicles with COMAND APS (with navigation) (527).	AR91.12-P-1620SY
3	Remove all three head restraints in rear
		MODEL 221.0## 1# except CODE 223 (Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints), MODEL 221.1## 1# except CODE 223 (Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints) except CODE 224 (Design individual rear seat system)	AR91.16-P-1770SX
		MODEL 221.0## 1# with CODE 223 (Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints), MODEL 221.1## 1# with CODE 223 (Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints) with CODE 224 (Design individual rear seat system) Only if the customer wants a two-way radio antenna (A2/49a3) on the vehicle roof, and/or  on vehicles with COMAND APS (with navigation) (527).	AR91.16-P-1770SY
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
4	Disconnect battery ground line
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
			AR54.10-P-0003SX
5	Remove trims in trunk	Except left side paneling. On vehicles without  one of the codes listed below, the right side paneling in the trunk must  be replaced with new paneling:  Code (220) Parktronic system (PTS) Code (229) Park Assist Code (230) Exclusive parking assist (APG) Code (233) Distronic Plus Code (234) Blind Spot Monitoring (BSM) Code (881) Remote trunk closing (RTC [HDFS]).
6	Remove door lining from left front door
		MODEL 221.0, MODEL 221.1 except CODE Z07 (Top protection)	AR72.10-P-1000SX
7	Remove speaker in left front door
		MODEL 221.0, MODEL 221.1 except CODE Z07 (Top protection) Speaker is replaced with a new taxi two-way radio speaker (H6).	AR82.62-P-7845SX
8	Remove center console
		MODEL 221.0##/1## 1# up to 31.05.09 except CODE 800 (Model year 2010)	AR68.20-P-2000SX
9	Remove glove box
			AR68.10-P-1400SX
10	Remove left front and right floor covering
11	Remove rear floor covering
12	Remove rear shelf
		MODEL 221.0, MODEL 221.1 except CODE Z07 (Top protection) Only if the customer wants a two-way radio antenna (A2/49a3) on the vehicle roof, and/or  on vehicles with COMAND APS (with navigation) (527).	AR68.30-P-4580SX
13	Remove foam padding of rear shelf	Only if the customer wants a two-way radio antenna (A2/49a3) on the vehicle roof, and/or  on vehicles with COMAND APS (with navigation) (527).
14	Remove headliner
		MODEL 221.0, MODEL 221.1 except CODE Z07 (Top protection) Only if the customer wants a mirror taximeter and/or  a microphone (B25/1) for the rental vehicle two-way radio and/or  a two-way radio antenna (A2/49a3) on the vehicle roof.	AR68.30-P-4300SX
15	Remove antenna
		MODEL 221.0, MODEL 221.1 except CODE Z07 (Top protection) Only if the customer wants a taximeter control unit (A67n1) (mirror taximeter) and/or  a microphone (B25/1) for the rental vehicle two-way radio and/or  a two-way radio antenna (A2/49a3) on the vehicle roof.	AR82.70-P-8951SX
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
16	Remove right windowbag
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
		MODEL 221.0, MODEL 221.1 except CODE Z07 (Top protection) Only if the customer wants a two-way radio antenna (A2/49a3) on the vehicle roof.	AR91.60-P-0693SX
	Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units.	Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply.	AS91.00-Z-0001-01A
	Risk of injury.  Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
17	Remove right seat belt in rear
	Notes on performing repair, body work and welding on vehicles with airbags and RTE units		AH91.00-P-0002-01M
			AR91.40-P-0681SX
		Only if the customer wants a two-way radio antenna (A2/49a3) on the vehicle roof.
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
18	Remove starter battery (G1/4)
	Notes on battery		AH54.10-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
		MODEL 221.0##/1## 1# up to 01.06.08 except CODE 809 (Model year 2009) Only if the customer wants a bracket for the roof sign lamp (E14/4) with electrical connection.	AR54.10-P-0008SX
19	Remove front prefuse box (F32)	Only if the customer wants a bracket for the roof sign lamp (E14/4) with electrical connection. Leave positive lines (5) connected to the front prefuse box (F32). Just swivel front prefuse box (F32) to the side.
	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
20	Remove wiper arms
			AR82.30-P-6100SX
		Only if the customer wants a bracket for the roof sign lamp (E14/4) with electrical connection.
21	Unclip water collector (28) upwards off the windshield	Only if the customer wants a bracket for the roof sign lamp (E14/4) with electrical connection.
22	Remove housing (27)	Only if the customer wants a bracket for the roof sign lamp (E14/4) with electrical connection.
23	Remove left drip rail	Only if the customer wants a bracket for the roof sign lamp (E14/4) with electrical connection.
24	Remove cover from front SAM control unit with fuse and relay module (N10/1)
	Remove paneling in trunk	MODEL 221.0, MODEL 221.1 except CODE Z07 (Top protection) Only if the customer wants a bracket for the roof sign lamp (E14/4) with electrical connection.	AR68.30-P-4600SX
	Install
25	Install taxi two-way radio speaker (H6) in left front door
		MODEL 221.0, MODEL 221.1 except CODE Z07 (Top protection) Use the new taxi two-way radio speaker (H6).	AR82.62-P-7845SX
26	Install special vehicle multifunction control unit (MSS)		AN82.25-P-1000-03SX
27	Retrofit rental vehicle wiring harness		AN82.25-P-0001-09SX
		Nut, line connection to vehicle power supply control unit	*BA54.10-P-1007-01C
28	Install taxi two-way radio antenna		AN82.71-P-1000-06SX
		Only if the customer wants a two-way radio antenna (A2/49a3) on the vehicle roof.
		Bolt, antenna base to vehicle roof	*BA82.62-P-1001-01D
29	Retrofit antenna line		AN82.62-P-0001-04SY
		Only if the customer wants a two-way radio antenna (A2/49a3) on the vehicle roof. Taxi two-way radio antenna line.
30	Retrofit antenna line		AN82.62-P-0001-04SX
		Only if the customer wants a two-way radio antenna (A2/49a3) on the vehicle roof, and/or  on vehicles with COMAND APS (with navigation) (527). GPS antenna line.
31	Installing roof sign wiring harness		AN82.25-P-1000-02SX
		Only if the customer wants a bracket for the roof sign lamp (E14/4) with electrical connection.
		Sealing profile Terostat 2710-6	*BR00.45-Z-1021-01A
		White sealing compound, 310 ml, DBL 6069.20	*BR00.45-Z-1003-01A
32	Retrofitting roof sign mount		AN82.25-P-1000-06SX
		Only if the customer wants a bracket for the roof sign lamp (E14/4) with electrical connection.
		Roof sign mounting on vehicle roof	*BA82.10-P-1001-03C
33	Route taximeter wiring harness		AN82.25-P-0001-05SX
		Only if the customer wants a taximeter control unit (A67n1) (mirror taximeter) and/or  a microphone (B25/1) for the rental vehicle two-way radio.
34	Install headliner
		MODEL 221.0, MODEL 221.1 except CODE Z07 (Top protection) Only if headliner has been removed.	AR68.30-P-4300SX
35	Install taximeter control unit (A67n1)	Only if the customer wants a taximeter control unit (A67n1) (mirror taximeter).
36	Retrofit hands-free system microphone		AN82.70-P-8969-04SX
		Only if the customer wants a microphone (B25/1) for the rental vehicle two-way radio.
37	Retrofitting emergency alarm activate button		AN82.25-P-1000-11SX
		Please observe respective national legislation when installing an emergency alarm system.
38	Retrofitting emergency alarm cancel button		AN82.25-P-1000-10SX
		Please observe respective national legislation when installing an emergency alarm system.
39	Install remaining parts
40	Carry out initial startup of rental vehicle functions		AN82.25-P-0001-08SX
		With STAR DIAGNOSIS.
41	Supply the new operating instructions with the rental car	Operator's manual for "Taximeter - driver" and "Taximeter - company". The rental vehicle operator's manual must be ordered through the usual channels.
42	Add special equipment to the vehicle data card and to the online vehicle data card	Only codes which have been retrofitted.
