Remove/install loudspeakers in front doors - AR82.62-P-7845SX

MODEL 221.0

MODEL 221.1 except CODE (Z07) Top protection

Shown with code (810) sound system

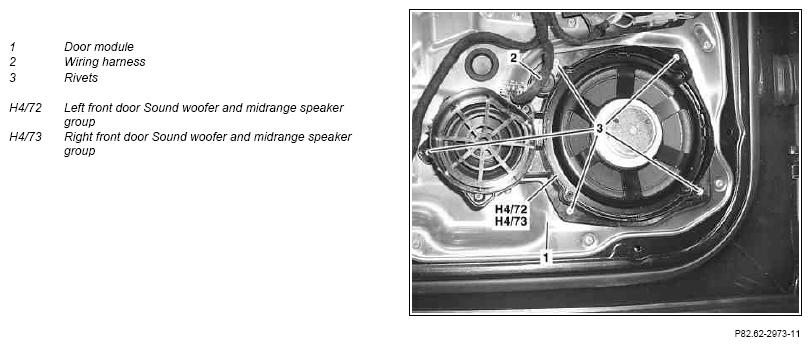

Fig 1: Identifying Front Doors Loudspeakers Components - Shown With Code (810) Sound System

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove door lining from left or right front door	Do not yet disconnect electrical connectors.	AR72.10-P-1000SX
2	Switch on ignition and close crank window	Switch off ignition after raising the crank window, disconnect electrical connectors and remove door lining.
3	Detach left front door Sound woofer and midrange speaker group (H4/72) or right front door Sound woofer and midrange speaker group (H4/73) from door module (1)	Use 5 mm dia. bit. Completely remove rivet residues. Pliers
4	Install in the reverse order
