Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997CE
MODEL 204.0/2 with CODE (218) Reversing camera with CODE (220) PARKTRONIC as of model year 2009/AEJ 08
MODEL 204.9 with CODE (218) Backup camera with CODE (220) PARKTRONIC
MODEL 204.0/2 with CODE (230) Advanced Parking Guidance as of model year 2012/AEJ 11 model refinement package
MODEL 204.3 with CODE (218) Reversing camera with CODE (230) Advanced Parking Guidance
MODEL 204.9 with CODE (235) Active Park Assist with CODE (501) 360-degree camera as of model year 2013/facelift 12

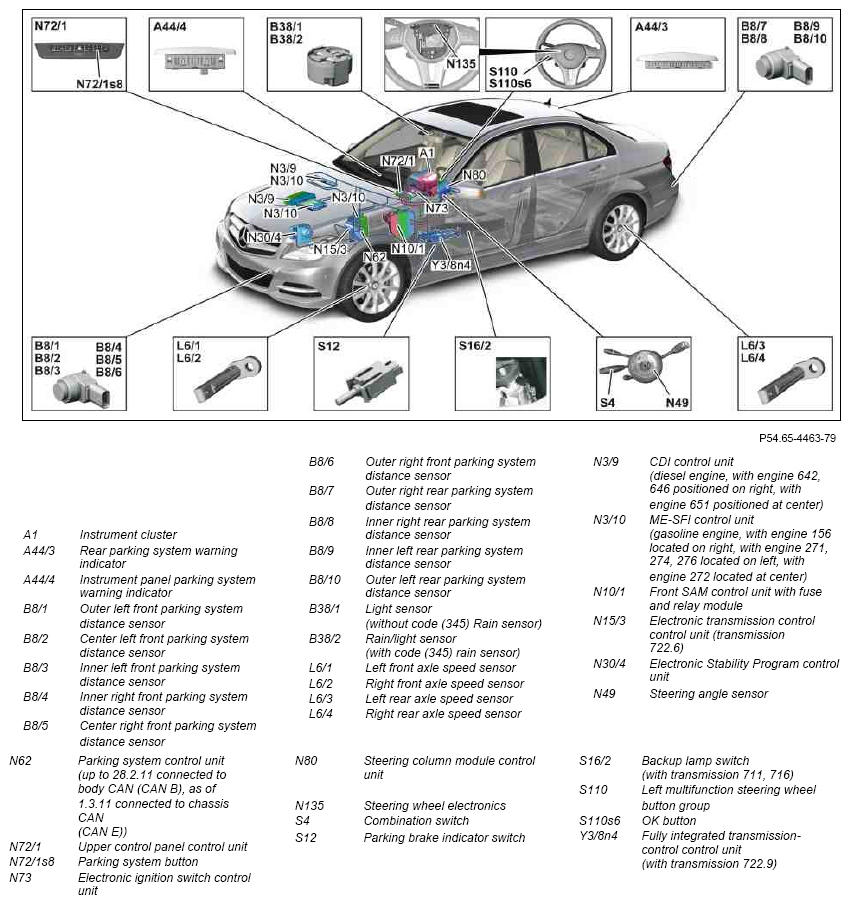

Parking system (model 204.0/2/9 with B8/6 Outer right front parking system N3/9 CDI control unit code (220) PARKTRONIC, model 204.0/2/3 distance sensor (diesel engine, with engine 642, as of 1.3.11 with code (230) Exclusive parking assist), shown on model 204.0

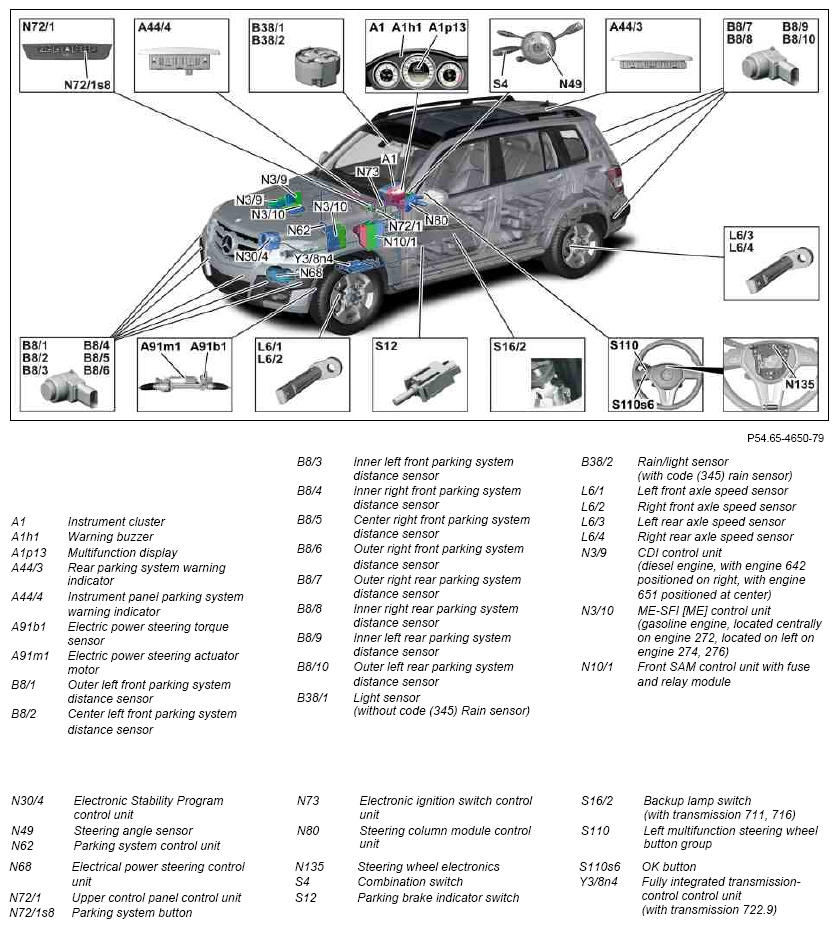

Parking system (Model 204.9 with code (235) Active Parking Assist)

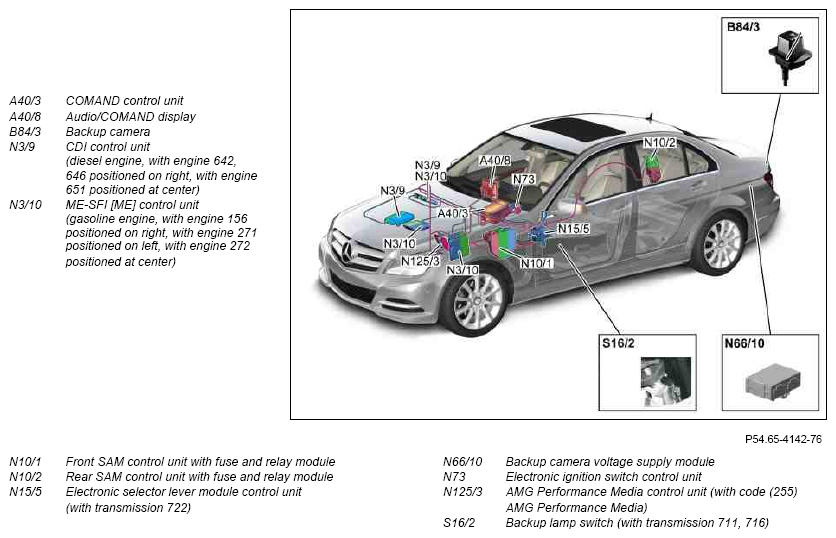

Reversing camera (model 204.0/2/3, model 204.9 up to 31.5.12 With code (218) Reversing camera and without code (498) Japan version), shown model 204.0

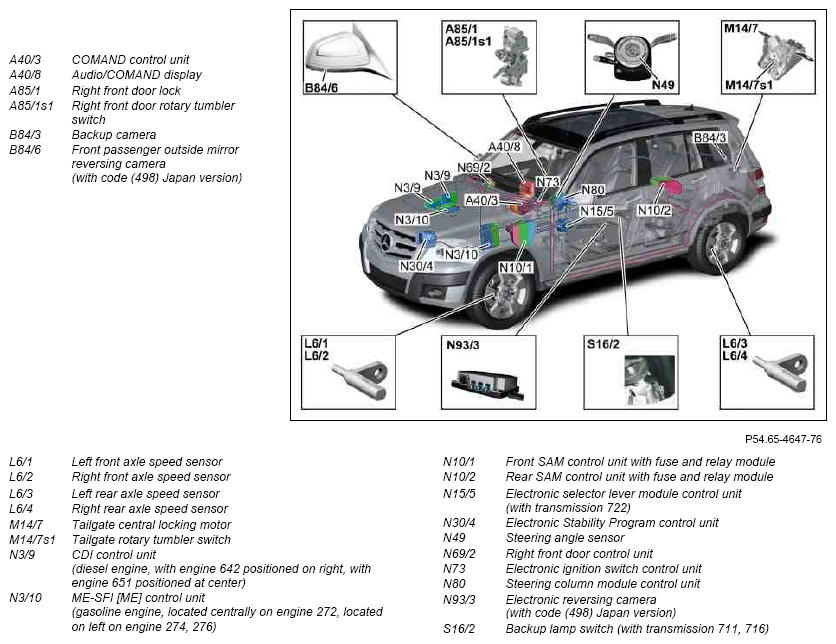

Backup camera (Model 204.0/2/3, model 204.9 up 31.5.12 With code (218) Reversing camera and Code (498) Japan version), Shown on model 204.0

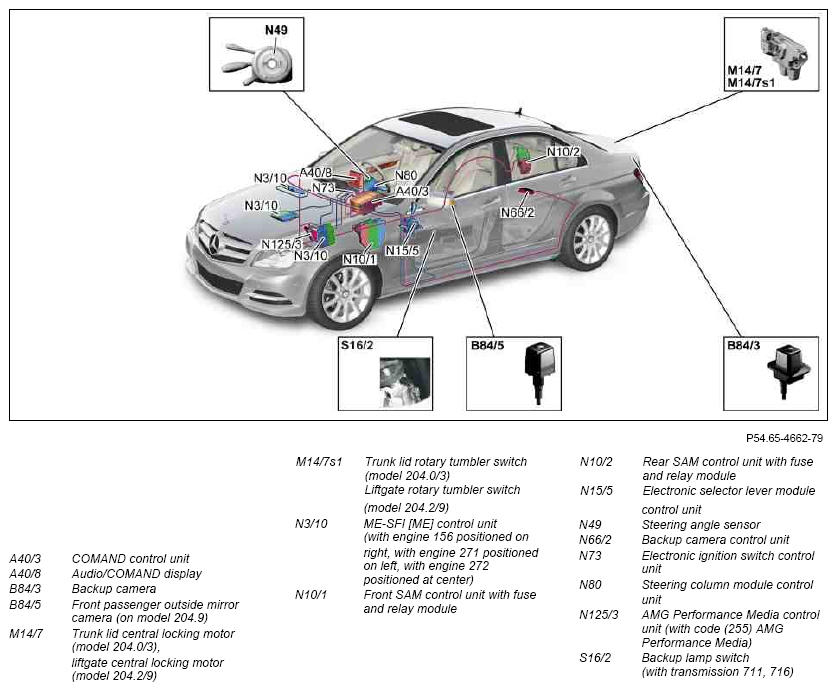

Reversing camera (model 204.9 as of 1.6.12 with code (218) Reversing camera)

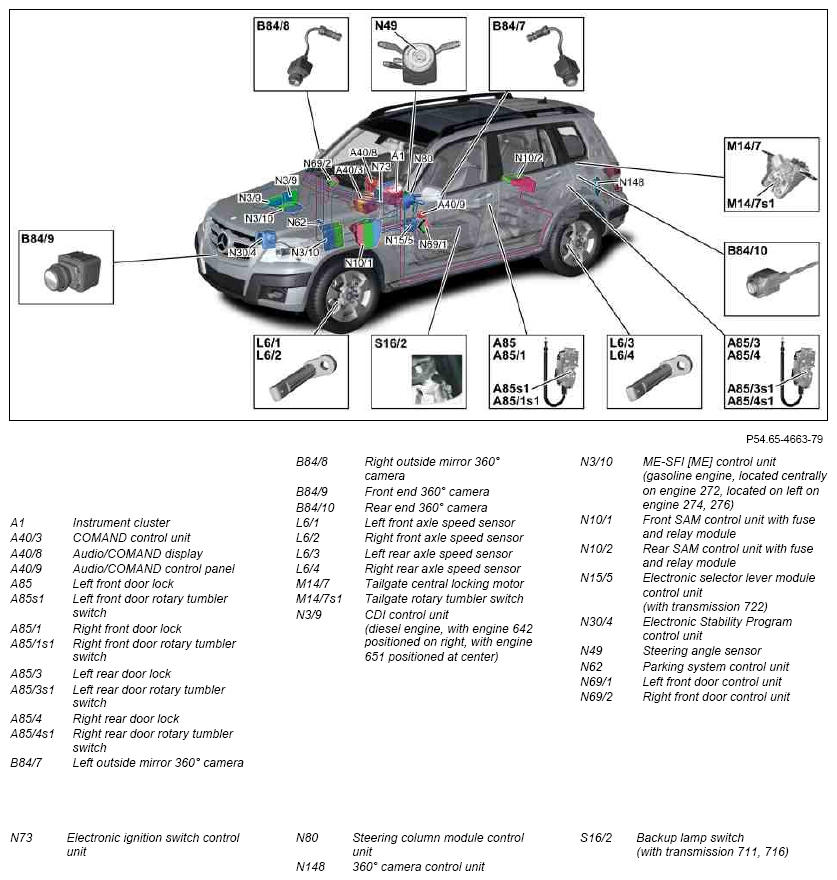

360° camera (Model 204.9 as of 1.6.12 with code (501) 360 degree camera)
| Instrument cluster, component description | A1 | GF54.30-P-6000CE | |
| Component description for COMAND controller unit | A40/3 On model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and without code (498) Japan version or with code (512) COMAND APS incl. DVD changer, Model 204.0 up to 28.2.11 with code (528) COMAND incl. DVD changer, model 204.9 up to 31.5.12 with code (527) COMAND APS with single DVD drive (with navigation) and without code (498) Japan version or with code (512) COMAND APS incl. DVD changer or code (528) COMAND incl. DVD changer, model 204.9 as of 1.6.09 up to 31.5.12 with code (528) COMAND incl. DVD changer |
GF82.85-P-3136CE | |
| On model 204.0/2 as of 1.3.11 with code (527) COMAND APS with single DVD drive (with navigation) or code (512) COMAND APS incl. DVD changer, model 204.3 with code (527) COMAND APS with single DVD drive (with navigation) with CODE (512) COMAND APS incl. DVD changer, model 204.9 as of 1.6.12 with code (527) COMAND APS with single DVD drive (with navigation) or code (512) COMAND APS incl. DVD changer |
GF82.85-P-3136CEA | ||
| On model 204.0/2 up to 28.2.11 with code (527) COMAND APS with single DVD drive (with navigation) and code (498) Japan version, model 204.9 up to 31.5.12 with code (527) COMAND APS with single DVD drive (with navigation) and code (498) Japan version |
GF82.85-P-3136CEJ | ||
| Audio/COMAND display, component description | A40/8 | GF54.30-P-6150CE | |
| Audio/COMAND control panel, component description | A40/9 | GF54.21-P-4501CE | |
| Component description for electrohydraulic power steering | A91/1 In model 204.9 with engine 651.9 |
GF46.30-P-2310CEB | |
| Reversing camera component description | B84/3 Model 204.9 as of 1.6.12 and Code (218) Reversing camera |
GF54.65-P-5040CE | |
| CDI control unit, component description | N3/9 With engine 642.8 in model 204.0/2/9 |
GF07.16-P-6000OG | |
| With engine 642.9 in model 204.0/2/9 | GF07.16-P-6000OH | ||
| With engine 646.8 in model 204.0/2 | GF07.16-P-6000OL | ||
| With engine 651.9 | GF07.16-P-6000OM | ||
| ME-SFI [ME] control unit, component description | N3/10 With engine 156 in model 204.0/2/3 |
GF07.61-P-6000MAW | |
| With engine 271.8 in model 204.0/2/3 | GF07.61-P-6000MG | ||
| With engine 271.9 in model 204.0/2 | GF07.61-P-6000MFW | ||
| With engine 272.9 (except 272.982) in model 204.0/2/9 | GF07.61-P-6000MI | ||
| With engine 272.982 in model 204.0 | GF07.61-P-6000MIE | ||
| With engine 274.9 | GF07.61-P-6000MR | ||
| With engine 276.9 | GF07.61-P-6000MM | ||
| Front SAM control unit with fuse and relay module, component description | N10/1 | GF54.21-P-6070CE | |
| Rear SAM control unit with fuse and relay module, component description | N10/2 | GF54.21-P-6030CE | |
| Electronic transmission control control unit, component description | N15/3 With transmission 722.6 |
GF27.60-P-5163ACW | |
| Electronic selector lever module control unit, component description | N15/5 With transmission 722.6 |
GF27.60-P-5164ACW | |
| With transmission 722.9 (except code 722.930) | GF27.60-P-5163AHW | ||
| With transmission 722.930 | GF27.60-P-5163AHV | ||
| Electronic Stability Program control unit, component description | N30/4 | GF42.45-P-5119CE | |
| Parking system control unit component description | N62 Model 204.0/2/9 with code (220) PARKTRONIC, Model 204.0/2/3 with code (230) Exclusive parking assist, Model 204.9 with code (235) Active Parking Assist |
GF54.65-P-5002CE | |
| Reversing camera control unit, component description | N66/2 Model 204.0/2/3 model 204.9 up to 31.5.12 with code (218) Reversing camera and code (498) Japan version |
GF54.65-P-5030CEJ | |
| Electrical power steering control unit (ES), component description | N68 For model 204.0/2/3 with engine 274, For model 204.9 with engine 274, 276, 642, 651 |
GF46.35-P-7010CE | |
| Left front door control unit, component description | N69/1 | GF72.29-P-6001CE | |
| Right front door control unit, component description | N69/2 | GF72.29-P-6009CE | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040CE | |
| Electronic ignition lock control unit, component description | N73 | GF80.57-P-6001CE | |
| Steering column tube module control unit, component description | N80 | GF54.21-P-6051CE | |
| AMG Performance Media control unit, component description | N125/3 With code (255) AMG Performance Media |
GF82.60-P-5010CE | |
| 360° camera control unit, component description | N148 Model 204.9 with code (501) 360 degree camera |
GF54.65-P-5003CE | |
| Fully integrated transmission control unit, component description | Y3/8n4 With transmission 722.9 (except code 722.930) |
GF27.60-P-5165AHW | |
| With transmission 722.930 | GF27.60-P-5165AHV | ||
| Table of contents for function description of parking assistance systems | GF54.00-P-0997CE |
