Retrofit lighting for running boards - AZ82.10-P-0015GZ

MODEL 164.8## 1# as of 1.7.09 with CODE (846) Running boards

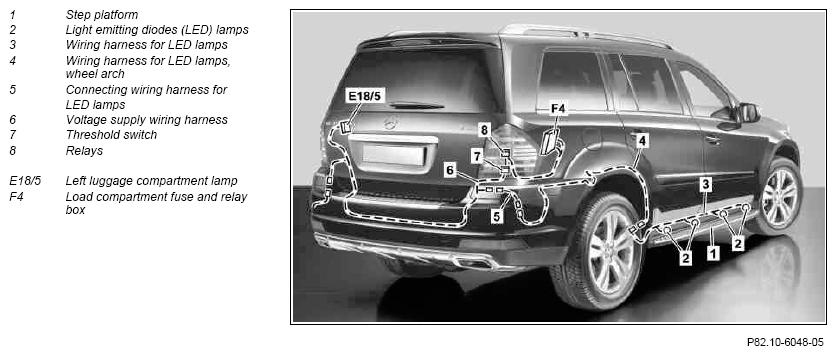

Fig 1: Identifying Running Boards Lighting Wiring Harness

Courtesy of MERCEDES-BENZ USA

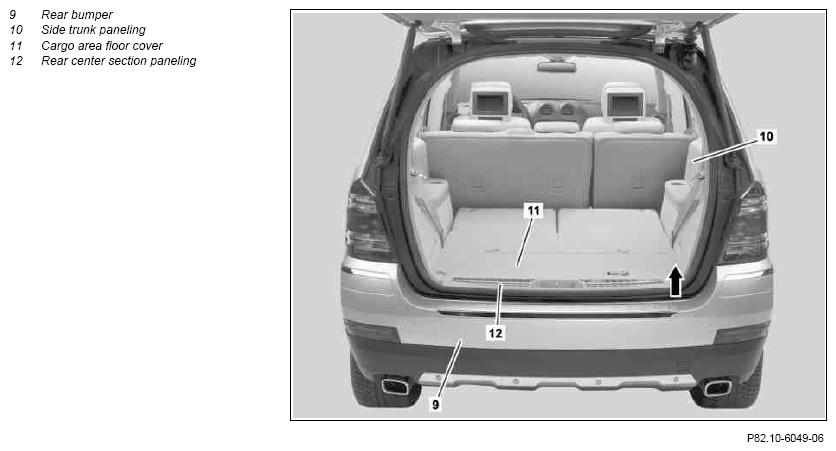

Fig 2: Identifying Rear Bumper, Side Trunk Paneling And Cargo Area Floor Cover

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove rear center section paneling (12)		AR68.30-P-4100GZA
2	Remove right trim on the side in trunk (10)		AR68.30-P-4800RT
3	Remove cargo area floor cover (11)	On vehicles with code (810) Sound system	AR68.80-P-5800GZ
4	Remove right reinforcement of cargo area floor (arrow) under cargo area floor cover (11)	On vehicles with code (810) Sound system
5	Remove subwoofer reinforcement	For vehicles as of model year 2009 with code (810) Sound system	AR82.62-P-7722GY
6	Remove subwoofer	On vehicles with code (810) Sound system	AR82.62-P-7839GZ
7	Remove fuse and relay box in cargo area (F4) and place to one side with attached electrical lines		AR54.15-P-1261GZ
8	Remove rear bumper (9)		AR88.20-P-2200GZ
9	Remove left and right running board (1)	Do not remove substructure.	AR88.30-P-2400GY
10	Remove left and right fender liners in rear fender		AR88.10-P-1400GZ
	Install
11	Install LED lamps (2) into left and right running board (1)	Cordless drill/driver	AZ82.10-P-0015-04GZ
12	Install left and right running board (1)	During installation, make sure that the wiring harness for the LED lamps (3) does not chafe on the running board (1) fastenings or obstruct the installation of the running boards (1). If necessary, reposition the holders of the wiring harness for the LED lamps (3) and the wiring harness for the LED lamps (3).	AR88.30-P-2400GY
13	Retrofit wiring harness for the LED lamps, wheel arch (4) and connecting wiring harness for the LED lamps (5)		AZ82.10-P-0015-02GZ
		Sealant	*BR00.45-Z-1003-01A
14	Install rear bumper (9)		AR88.20-P-2200GZ
15	Install left and right fender liners in rear fender		AR88.10-P-1400GZ
16	Retrofit power supply wiring harness (6)		AZ82.10-P-0015-02GZA
			Fig 3
17	Assemble vehicle
18	Perform function test of running board lighting	The running board lighting must switch on with the interior illumination and go off when the engine is started.

Fig 3: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Courtesy of MERCEDES-BENZ USA
