Remove/install load compartment floor - AR68.80-P-5800GZ

MODEL 164

Shown on model 164.1

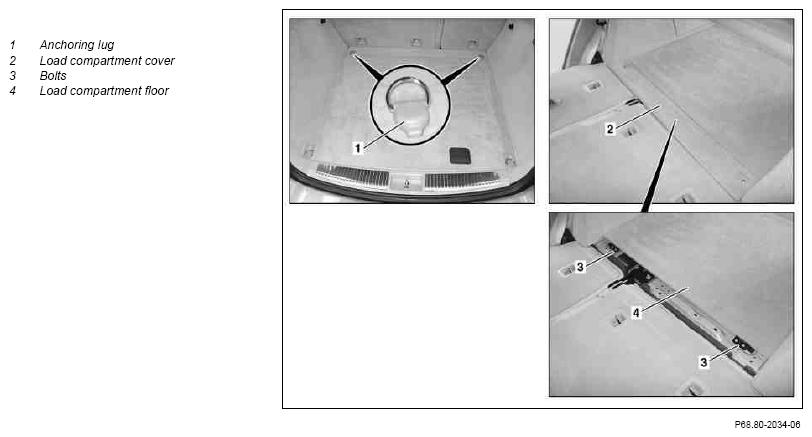

Fig 1: Identifying Load Compartment Floor Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

2.7.09

Remove high-voltage battery cover

Step 3.2

AR68.80-P-6000GZH

	Remove/install
1	Fold over 2nd seat row.
2	Fold over 3rd seat row.	Model 164.8
3.1	Unclip cover from anchoring lug (1) and unscrew bolt below	except model 164.195
			*BA68.50-P-1002-03F
			Figure
3.2	Remove high-voltage battery cover	Model 164.195	AR68.80-P-6000GZH
4	Unscrew load compartment cover (2) and remove	except model 164.195
			Figure
5	Remove bolts (3) on left and right from load compartment floor (4)
6	Remove load compartment floor (4)
7	Install in the reverse order

CARGO RETAINERS

Number	Designation		Model 164.1/8
BA68.50-P-1002-03F	Bolt, anchoring lug to luggage compartment floor	Nm	24

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
