Remove/install subwoofer amplifier - AR82.62-P-7722GY
MODEL 164.8 as of model year 2009 with CODE (810) Sound system
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

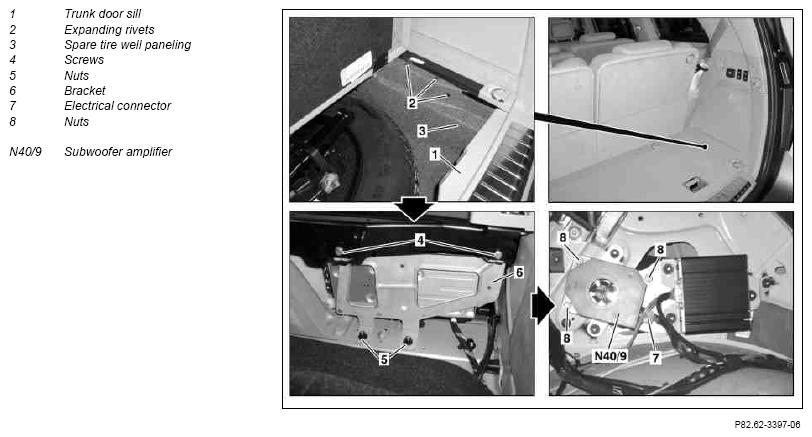

| 1 | Remove trunk door sill (1) | AR68.30-P-4100GZA | |
| 2 | Remove expansion rivets (2) | ||
| 3 | Fold trim of spare tire well (3) to one side | ||
| 4 | Remove bolts (4) | ||
| 5 | Unscrew nuts (5). | ||
| 6 | Remove bracket (6) with subwoofer amplifier (N40/9) | ||
| 7 | Disconnect electrical connector (7) | ||
| 8 | Unscrew nuts (8) and remove subwoofer amplifier (N40/9) from bracket (6) | ||
| 9 | Install in the reverse order |
