Remove/install side step - AR88.30-P-2400GY

MODEL 164 with CODE (846) Running boards

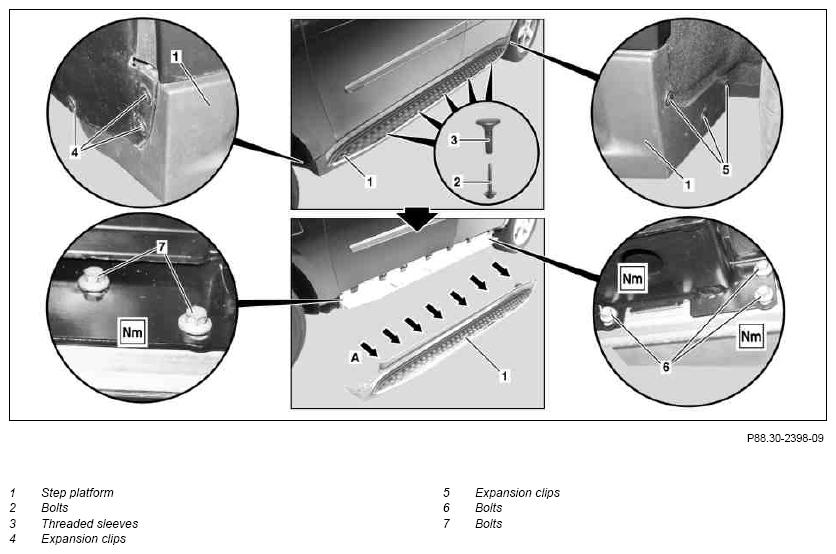

Fig 1: Identifying Side Step Remove/Install Components - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

Shown on model 164.8

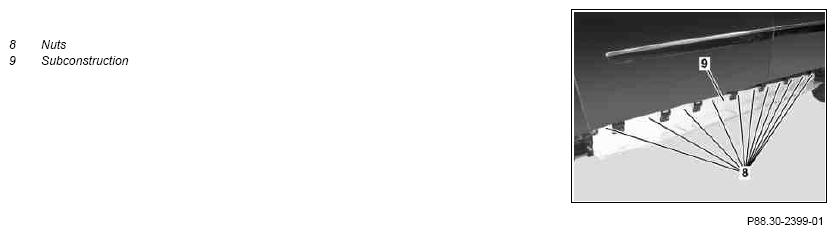

Fig 2: Identifying Side Step Remove/Install Components - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move vehicle onto drive-on platform	When using lifting platform, bolts (6) cannot be removed.
2	Remove rear rubber mounts for lifting platform plate	So that bolts (6) can be removed.
3	Unscrew bolt (2)
4	Remove threaded sleeves (3).
5	Remove expansion clips (4, 5)	Replace expansion clips.
6	Open front and rear door
7	Insert mounting wedge between longitudinal member and running board (1) and unclip metal clips (arrows A) from subconstruction (9).
8	Remove running board (1)	When removing and installing, pay particular attention to lower edge of front and rear door to prevent paint damage.
9	Close front and rear door
10	Unscrew nuts (8).	Install new nuts.
11	Remove bolts (6, 7)	Align subconstruction (9) (raise slightly), then tighten bolts.
12	Remove subconstruction (9)	The subconstruction is sharp-edged. Danger of paint damage.
13	Install in the reverse order
