Retrofit comfort telephony - AN82.70-P-0008GY

MODEL 164.8

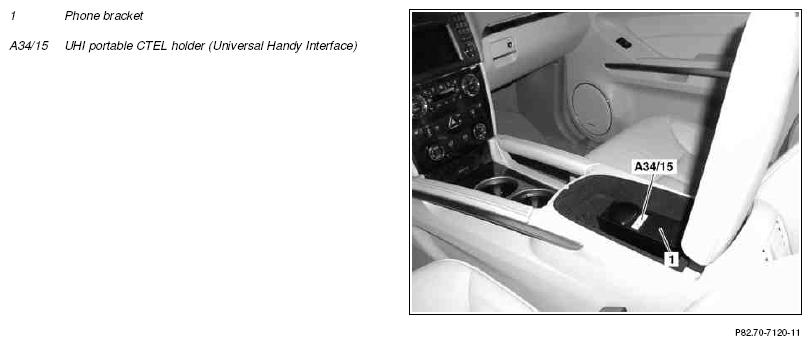

Fig 1: Identifying UHI Portable CTEL Holder And Phone Bracket

Courtesy of MERCEDES-BENZ USA

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove headliner		AR68.30-P-4300GZ
2	Remove radio		AR82.60-P-7502GZ
3	Remove center console		AR68.20-P-2000GZ
4	Remove 60 % rear seat		AR91.12-P-1000GYA
5	Remove cargo retainers behind driver seat		*BA68.50-P-1001-03F
6	Detach cable duct cover under left rear door sill
7	Remove 40% rear seat	Except code (847) 3rd seat row.	AR91.12-P-1000GY
8	Remove left paneling for spare tire well		AR68.30-P-4620GZ
9	Detach rear fuse and relay box	Do not disconnect electrically	AR54.15-P-1261GZ
	Install
10	Retrofit phone bracket (1)		AN82.70-P-0001-02GY
11	Retrofit comfort telephony wiring harness		AN82.70-P-0008-01GY
12	Assemble vehicle	Operation steps 9 to 1.
12	Assemble vehicle		*BA68.50-P-1001-03F
13	Connect STAR DIAGNOSIS		AD00.00-P-2000-04A
14	Enter special equipment in the vehicle data card and in the vehicle's online data card	Enter code (386) Comfort telephony. ↓
14		Initial startup of retrofits and modifications	AN00.01-P-1001-01V
15	Perform retrofit variant coding
16	Close STAR DIAGNOSIS		AD00.00-P-2000-04A
17	Document retrofitted equipment using vehicle documentation (VeDoc)	Attach the note "Comfort telephony retrofitted as per AN82.70-P-0008GY " under field organization texts to design group 82.
18	Perform function test

CARGO RETAINERS

Number	Designation		Model 164.1/8
BA68.50-P-1001-03F	Bolt, cargo retainers to body	Nm	24

PARTS ORDERING NOTES

Part no.	Designation	Quantity
KG99 (see EPC)	Telephone system parts kit	1
