Remove/install dashboard - AR68.10-P-1000CW

MODEL 204.0 /2 /3

Shown on model 204.0 up to 28.2.2011

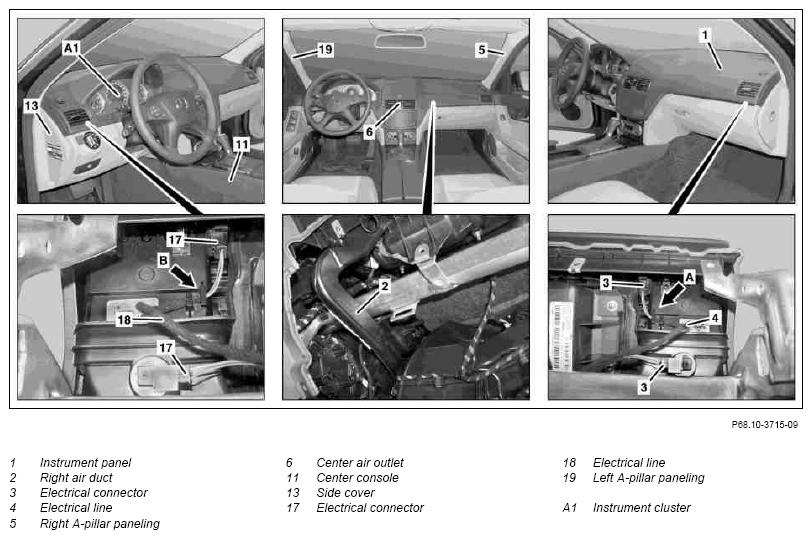

Fig 1: Identifying Instrument Panel Remove/Install Components (1 Of 4)
G07528026Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 up to 28.2.2011

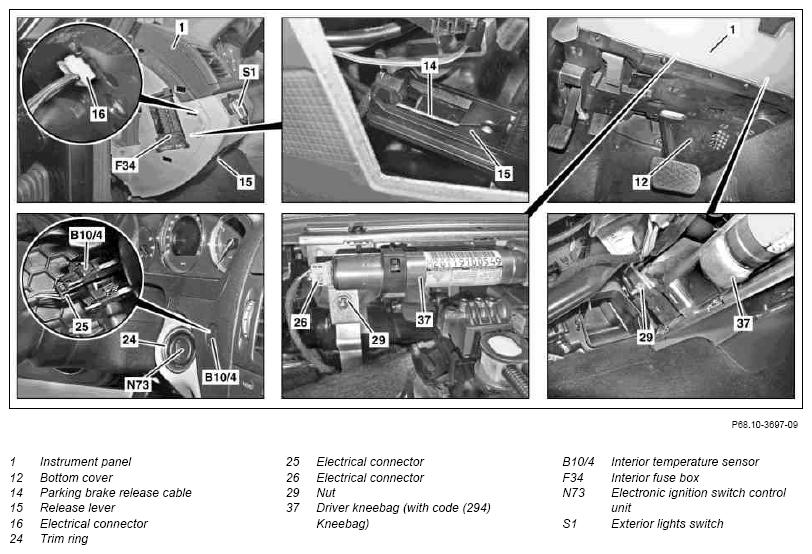

Fig 2: Identifying Instrument Panel Remove/Install Components (2 Of 4)
G07528027Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 up to 28.2 2011

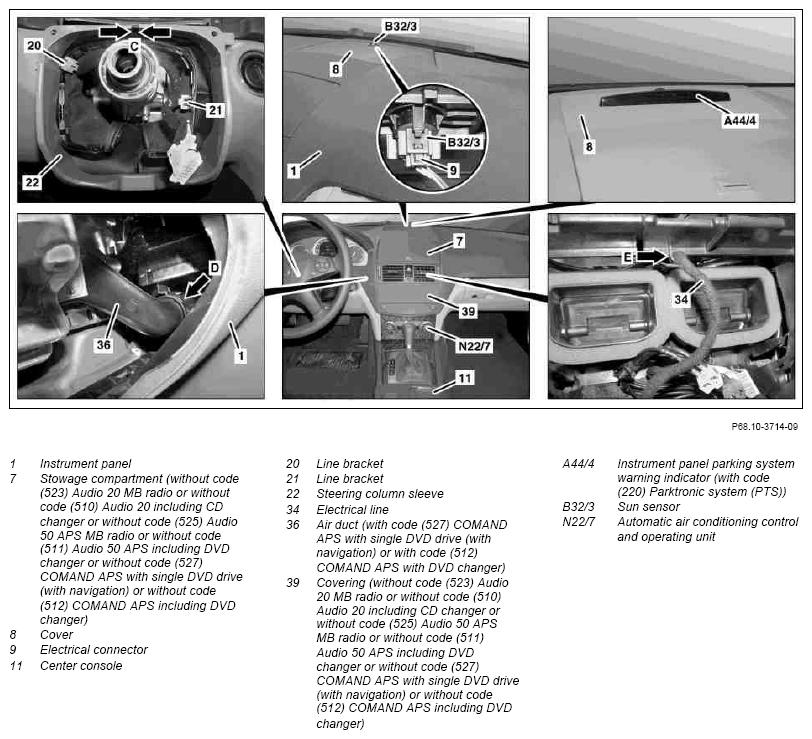

Fig 3: Identifying Instrument Panel Remove/Install Components (3 Of 4)
G07528028Courtesy of MERCEDES-BENZ USA

Shown on model 204.0 up to 28.2.2011

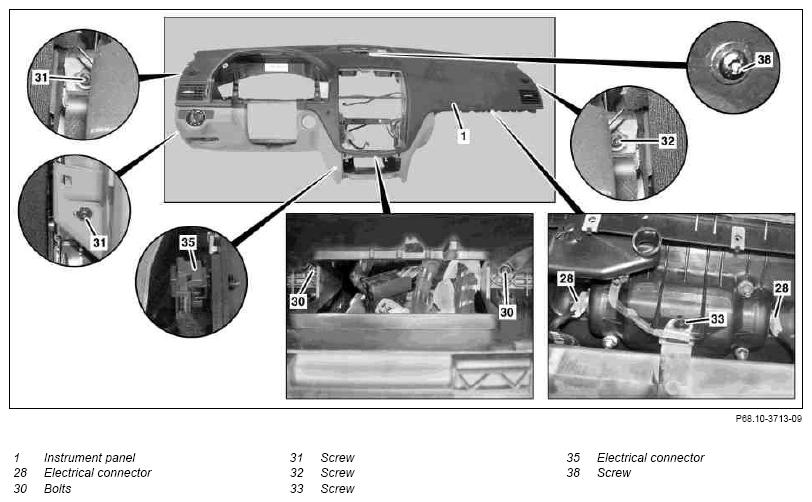

Fig 4: Identifying Instrument Panel Remove/Install Components (4 Of 4)
G07528029Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of injury  caused by performing testing or repair work on airbag or emergency tensioning retractor units Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. AS91.00-Z-0001-01A
NOTES Notes on performing repair, body work and welding on vehicles with airbags or emergency tensioning retractor units   AH91.00-P-0002-01M
IMPORTANT Assessment of airbag and emergency tensioning retractor units in accident vehicles   AH91.00-P-0006-01B
IMPORTANT Legal regulations on handling and storing airbags and emergency tensioning retractor units   AH91.00-P-0004-01A
1 Adjust air distribution on air conditioning to footwell. NOTES If air distribution is set incorrectly, the side air vent flaps can be detached at the air conditioner housing (A32) when removing the instrument panel (1).
2 Remove glove box   AR68.10-P-1200CW
3 Remove right air duct (2).
4 Disconnect electrical connectors (3) and unhook electrical line (4) (arrow A).
5 Remove right A-pillar paneling (5). SPECIAL TOOL Mounting wedge Fig 5
6 Remove center air vent (6) On model 204.0/2 up to model year 2012 / YoM 11 AR83.10-P-4503CW
On model 204.0/2 as of model year 2012 / YoM 11 and model 204.3 AR83.10-P-4503CWA
7.1 Remove radio In vehicles with code (523) MB Audio 20 radio or with
code (510) Audio 20 with CD changer or with
code (525) MB Audio 50 APS radio or with
code (511) Audio 50 APS with DVD changer or with
code (527) COMAND APS with single DVD drive (with navigation system) or with
code (512) COMAND APS with DVD changer
AR82.60-P-7502CW
7.2 Remove cover (39) On vehicles without code (523) Audio 20 MB radio or without
code (510) Audio 20 including CD changer or without code (525) Audio 50 APS MB radio or without code (511) Audio 50 APS including DVD changer or without
code (527) COMAND APS with single DVD drive (with navigation) or without
code (512) COMAND APS including DVD changer

8.1 Remove Audio/COMAND display (A40/8) In vehicles with code (523) MB Audio 20 radio or with
code (510) Audio 20 with CD changer or with
code (525) MB Audio 50 APS radio or with
code (511) Audio 50 APS with DVD changer or with
code (527) COMAND APS with single DVD drive (with navigation system) or with
code (512) COMAND APS with DVD changer
AR82.60-P-7722CW
8.2 Remove storage compartment (7) On vehicles without code (523) Audio 20 MB radio or without
code (510) Audio 20 including CD changer or without code (525) Audio 50 APS MB radio or without code (511) Audio 50 APS including DVD changer or without
code (527) COMAND APS with single DVD drive (with navigation) or without
code (512) COMAND APS including DVD changer

9 Unclip cover (8), disconnect electrical connector (9) at sun sensor (B32/3)
10 Disconnect electrical connector at instrument panel parking system warning indicator (A44/4) On vehicles with code (220) Parktronic system (PTS)
11 Remove center instrument panel speaker (H4/27) On vehicles up to code (810) Sound system
12.1 Loosen center console (11) and pull approx. 3 to 4 cm toward rear. On model 204.0/2 up to model year 2012 / YoM 11
IMPORTANT Do not disconnect electrical connectors.
AR68.20-P-2000CW
12.2 Remove center console (11) On model 204.0/2 as of model year 2012 / YoM 11 and model 204.3 AR68.20-P-2000CW
13 Remove automatic air conditioning control and operating unit (N22/7) Front control and operating unit AR83.40-P-6350CW
14 Disconnect electrical connector at interior KEYLESS-GO antenna (A2/61) On vehicles with code (889) Keyless go
IMPORTANT The interior KEYLESS-GO antenna is located in the installation opening of the automatic air conditioning control and operating unit (N22/7).

15 Remove lower cover (12)
16 Remove side covering (13).
17 Unclip interior fuse box (F34) and position it towards the inside in the instrument panel (1) In model 204.0/2 up to 28.2.2011
18 Unhook parking brake release cable (14) from release lever (15).
19 Disconnect electrical connector (16) from exterior lights switch (S1)
20 Disconnect electrical connectors (17) and unhook electrical line (18) (arrow B).
21 Remove left A-pillar paneling (19) SPECIAL TOOL Mounting wedge Fig 5
22 Remove steering column tube module   AR54.25-P-2802CW
23 Remove instrument cluster (A1)   AR54.30-P-6015CW
24 Unclip line bracket (20, 21) from steering column boot (22) In model 204.0/2 up to 28.2.2011
25 Press both upper ends of steering column boot (22) together (arrows C) and simultaneously unclip steering column boot (22) from instrument panel (1) In model 204.0/2 up to 28.2.2011
26 Disconnect electrical connector at electronic ignition lock control unit (N73) In model 204.0/2 as of 1.3.2011 and model 204.3
27 Unscrew trim ring (24) from electronic ignition lock control unit (N73) In model 204.0/2 up to 28.2.2011
SPECIAL TOOL Claw wrench for trim ring on ignition/starter switch Fig 6
28 Press electronic ignition lock control unit (N73) toward inside into dashboard (1). In model 204.0/2 up to 28.2.2011
29 Disconnect electrical connector (26) at driver kneebag squib (R12/25) On vehicles with code (294) Kneebag
30 Disconnect electrical connectors (28) at front passenger airbag squib 1 (R12/4) and at front passenger airbag squib 2 (R12/5)
31 Unscrew nuts (29) at driver kneebag (37) On vehicles with code (294) Kneebag
TORQUE SPECIFICATION *BA91.60-P-1003-01M
32 Remove bolts (30)
33 Remove bolts (31)
34 Remove bolt (32) TORQUE SPECIFICATION *BA91.60-P-1002-01M
35 Remove bolt (33)
36 Remove bolt (38)
37 Hook electrical line (34) (arrow E).
38 Lift dashboard (1), disconnect electrical connector (25) from interior temperature sensor (B10/4) and electrical connector (35), separate air duct (36) from connector (arrow D) and remove dashboard (1) from vehicle. IMPORTANT Aid of helper required.
Air duct (36) only on vehicles with code (527) COMAND APS with single DVD drive (with navigation) or with
code (512) COMAND APS including DVD changer.
IMPORTANTInstallation:  Position electric wiring harnesses of components installed in dashboard (1) before installation.
On vehicles with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS including DVD changer, ensure that the electric ignition switch control unit (N73) is positioned above the air duct (36).

39 Install in the reverse order
AIRBAG

Number Designation Model 204.0/2/9
BA91.60-P-1002-01M Sheet metal screw, front passenger airbag unit to crossmember Nm 3.5
BA91.60-P-1003-01M Nut, knee airbag to crossmember Nm 8
Fig 5: Identifying Assembly Wedge (110 589 03 59 00)
G07528030Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Claw Wrench For Trim Ring On Ignition/Starter Switch (210 589 00 07 00)
G07528031Courtesy of MERCEDES-BENZ USA
