Remove/install instrument cluster - AR54.30-P-6015CW
MODEL 204.0/2/3

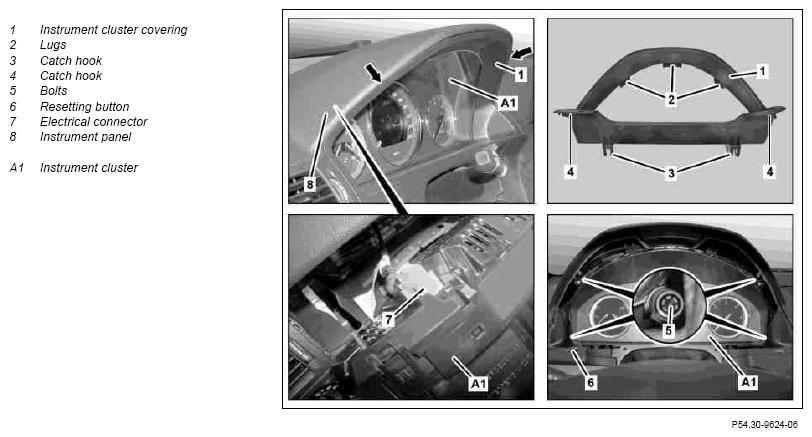

Shown on model 204 up to 28.2.2011
Shown on model 204 as of 1.3.2011
| Remove/install | |||
|---|---|---|---|
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Temporarily store basic data of instrument cluster (A1) in STAR DIAGNOSIS | ||
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A | ||
| 2 | Position steering wheel rearwards and at the bottom | ||
| 3 | Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73) | KEYLESS-GO start/stop button only on vehicles with code (889) Keyless Go. | |
| 4 | Remove center air vent | In vehicles as of 1.3.2011 | AR83.10-P-4503CWA |
| 5.1 | Unlatch covering of instrument cluster (1) at the top first (arrows), then unlatch in the bottom area of the catch hooks (3, 4) towards the back and take off | In vehicles up to 28.2.2011 |
Fig 3 |
| 5.2 | Remove covers for instrument cluster | In vehicles as of 1.3.2011 |
Fig 3 |
| 6 | Pull reset knob (6) out of the instrument cluster (A1) | In vehicles up to 28.2.2011 | |
| 7 | Unscrew bolts (5) until the instrument cluster (A1) is loose | ||
| 8 | Swing the instrument cluster (A1) at the top out of the dashboard (8) and remove rearwards until the electrical connector (7) is accessible | ||
| 9 | Unplug electrical connector (7) and remove instrument cluster (A1) | ||
| 10 | Install in the reverse order |
