Remove/install glove box lid - AR68.10-P-1200CW
MODEL 204.0 /2 /3
Shown up to 28.2.2011 and with code (523) Radio MB Audio 20
| Remove/install | |||
| 1 | Remove cover (3) under dashboard (right) | AR68.10-P-1520CW | |

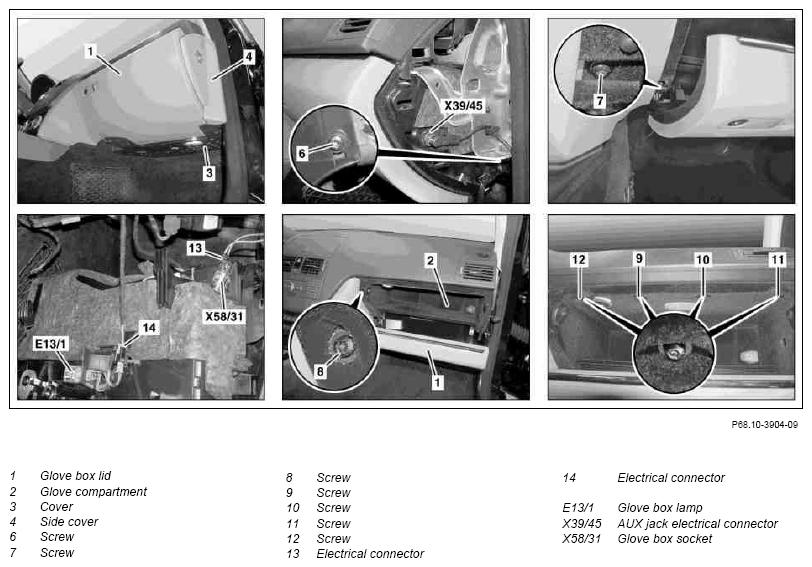

| 2 | Remove side covering (4). | Fig 3 | |
| 3 | Remove electrical connector on AUX connector (X39/45) from glove compartment (2). | On vehicles up to model year 2012/YoM 11 with code (523) MB Audio 20 radio or with code (510) Audio 20 with CD changer or with code (525) MB Audio 50 APS radio or with code (511) Audio 50 APS incl. DVD changer or with code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS incl. DVD changer | AR68.10-P-1400-01CW |
| 4 | Remove bolt (6) | ||
| 5 | Open glove box lid (1) and remove bolt (7) | ||
| 6 | Unscrew bolts (8, 9, 10, 11, 12) | ||
| 7 | Pull glove compartment (2) out of dashboard until electrical connectors (13, 14) are accessible. | ||
| 8 | Disconnect electrical connector (13) from glove box lamp (E13/1) | ||
| 9 | Disconnect electrical connector (14) from glove compartment power outlet (X58/31) and remove glove compartment (2). | ||

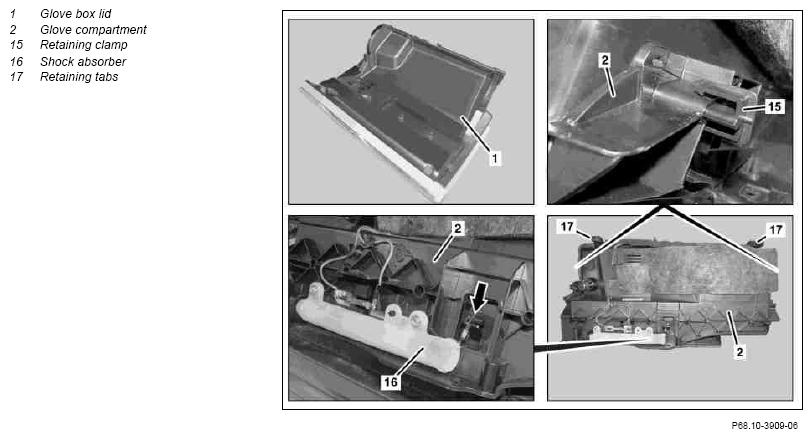

| 10 | Pull left and right retaining clamps (15) out to stop, unhook glove box lid (1) from damper (16) (arrow) and remove. | ||
| 11 | Install in the reverse order |
