Replace complete front cross member - AR62.30-P-1300V: Notes

MODEL 171

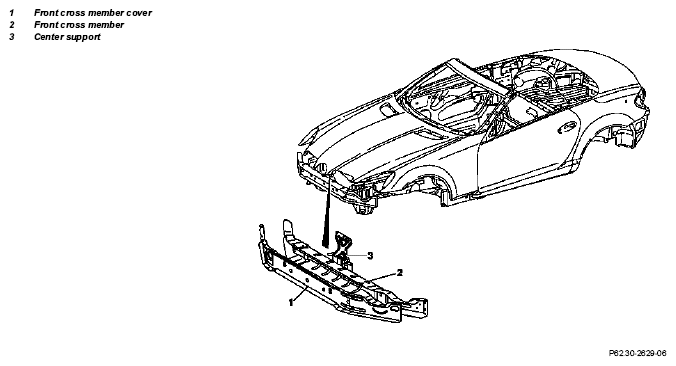

Fig 1: Identifying Front Cross Member, Cover And Center Support
G05027990Courtesy of MERCEDES-BENZ USA
REMOVING Remove
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and undeburred vehicle parts. -
    Deburr replacement panels.
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. -
DANGER Risk of death  caused by high voltage used for arc welding. Risk of explosion  caused by welding in the area of highly inflammable materials. Risk of injury  caused by welding spatter and UV-light while welding. Risk of poisoning  caused by inhaling welding vapors. Use insulating mats. Wear protective clothing, safety glasses and protective mask. Remove highly inflammable materials from the hazard area. Use air extractor. -
1 Remove front bumper   AR88.20-P-2000V
2 Remove front headlamp unit When removing left and right front headlamp unit AR82.10-P-4730V
3 Remove detachable parts in area to be repaired
4 Cover all attached parts remaining in vehicle Tarpaulin (fireproof) *WH58.30-Z-1001-40A
5 Equip straightening bench with modular members, cross members and straightening bracket set. IMPORTANT Observe body plans provided.
    Celette straightening bench M8S *WE58.40-Z-1001-01E
    Celette straightening bench Sevenne *WE58.40-Z-1001-01E
    Set of Celette modular members 955.940 *WE58.40-Z-1007-01E
    Celette additional member 955.908 *WE58.40-Z-1008-01E
    Car-Bench straightening bench BT 17 *WE58.40-Z-1003-01E
    Car-Bench straightening bench BT 43/1 *WE58.40-Z-1003-01E
    Car-Bench universal cross member set A 296 *WE58.40-Z-1010-01E
    Multi-Z straightening set system MZ 450.000 *WE58.40-Z-1006-01E
    Celette straightening bench 7171.300 (for model 171) *WE58.40-Z-1052-01A
    Car-Bench straightening bracket set 82452 (for model 171) *WE58.40-Z-1053-01A
6 Raise vehicle.   AR00.60-P-1000V
7 Place vehicle onto straightening bench
8 Remove plugs from jack tubes
9 Attach vehicle to straightening bench
10 Completely remove front cross member (2)   AR62.30-P-1300-09V
    SPECIAL TOOL Spot weld cutter Figure
    COMMERCIALLY AVAILABLE TOOLS Spherical milling cutter, dia. 12 mm *WH58.30-Z-1002-01A
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    COMMERCIALLY AVAILABLE TOOLS Grinding disc, dia. 115 mm, 80 m/s (max. 13.250 RPM) WH58.30-Z-1024-04A
    COMMERCIALLY AVAILABLE TOOLS Cutting disc, dia. 65 mm, 80 m/s (max. 23.500 RPM) *WH58.30-Z-1021-04A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Straight grinder (electric/pneumatic) *WE58.40-Z-1002-03A
    Angular grinder (electric/pneumatic) *WE58.40-Z-1003-03A
    Body saw (electric/pneumatic) *WE58.40-Z-1004-03A
    Wet/dry vacuum cleaner *WE58.40-Z-1005-03A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
    Primer spray can with repair kit *BR00.45-Z-1018-07A
11 Completely prepare front cross member (2)   AR62.30-P-1300-10V
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    COMMERCIALLY AVAILABLE TOOLS Grinding disc, dia. 115 mm, 80 m/s (max. 13.250 RPM) *WH58.30-Z-1024-04A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Angular grinder (electric/pneumatic) *WE58.40-Z-1003-03A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
12 Completely install front cross member (2)   AR62.30-P-1300-11V
    COMMERCIALLY AVAILABLE TOOLS Electrode miller *WH58.30-Z-1003-01A
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    COMMERCIALLY AVAILABLE TOOLS Clamping pliers *WH58.30-Z-1003-02A
    COMMERCIALLY AVAILABLE TOOLS Hand riveter *WH58.30-Z-1003-29A
    COMMERCIALLY AVAILABLE TOOLS PowerBird blind riveting tool. *WE58.40-Z-1003-14A
    COMMERCIALLY AVAILABLE TOOLS Grinding disc, dia. 115 mm, 80 m/s (max. 13.250 RPM) *WH58.30-Z-1024-04A
    COMMERCIALLY AVAILABLE TOOLS manual temporary fastener, dia. 6.4 mm, clamping area 0 to 15 mm, identification color silver *WH58.30-Z-1038-02A
    Spot welder *WE58.40-Z-1002-02A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Straight grinder (electric/pneumatic) *WE58.40-Z-1002-03A
    Angular grinder (electric/pneumatic) *WE58.40-Z-1003-03A
    Wet/dry vacuum cleaner *WE58.40-Z-1005-03A
    Polygrip flat/round head rivet, 6.4x14 *BR00.45-Z-1001-13A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
    Primer spray can with repair kit *BR00.45-Z-1018-07A
13 Unfasten vehicle from straightening bench
14 Install plugs for jack tubes
15 Raise vehicle.   AR00.60-P-1000V
16 Remove straightening bench.
17 Clean welds and sheet metal flange with round wire brush COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
18 Clean area to be repaired
19 Prime area to be repaired with primer/filler
20 Carry out seam sealing after repairs IMPORTANT Supplement standard sealing with MB body sealant. AR97.10-P-4000V
    Sealant *BR00.45-Z-1003-01A
    Seam sealant, sprayable 310 ml *BR00.45-Z-1041-01A
21 Paint repair areas and adjacent surfaces
22 Apply additional cavity preservation   AR97.20-P-1500V
    Cavity preservation gun Sata HRS no. 11072 *WE58.40-Z-1006-08A
    Preservation agent *BR00.45-Z-1003-05A
23 Remove tarpaulin
24 Install front bumper   AR88.20-P-2000V
25 Install front lamp unit When removing left and right front headlamp unit AR82.10-P-4730V
26 Install all removed detachable body components
Fig 2: Identifying Spot Weld Milling Cutter (201 589 00 51 00)
G05027991Courtesy of MERCEDES-BENZ USA
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-01A Ball cutter, dia. 12 mm
WH58.30-Z-1003-01A Electrode miller
WH58.30-Z-1006-01A Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1003-02A Clamping pliers
WH58.30-Z-1038-02A Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver
Firma Hausmann GmbH D-34346 Hann. Munden, Germany
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WH58.30-Z-1021-04A Cutting disk, dia. 65 mm, 80 m/s (max. 23, 500 RPM)
WH58.30-Z-1024-04A Abrasive disk, dia. 115 mm, 80 m/s (max. 13, 250 RPM)
WH58.30-Z-1003-29A Hand riveter
WH58.30-Z-1001-40A Tarp (fire-resistant)
WORKSHOP EQUIPMENT

WE58.40-Z-1052-01A Celette straightening bracket set 7171.300 (model 171)
WE58.40-Z-1053-01A Car bench straightening bracket set 82452, (model 171)
WE58.40-Z-1001-01E Celette straightening bench
WE58.40-Z-1003-01E Car-Bench straightening bench
WE58.40-Z-1006-01E Celette Multi-Z straightening set system
WE58.40-Z-1007-01E Celette module crossmember set 955.940
WE58.40-Z-1008-01E Celette additional member 955.908
WE58.40-Z-1010-01E Car-Bench universal cross member set A 296
WE58.40-Z-1002-02A Spot welder
WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1002-03A Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A Angle grinder (electric/pneumatic)
WE58.40-Z-1004-03A Body saw (electric/pneumatic)
WE58.40-Z-1005-03A Wet/dry vacuum cleaner
WE58.40-Z-1006-08A Cavity preservation gun
WE58.40-Z-1003-14A Blind rivet tool
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1041-01A Seam sealant, sprayable 310 ml A 002 989 84 20
BR00.45-Z-1003-01A Sealant A 001 989 63 20
BR00.45-Z-1003-05A Preservation agent A 000 986 72 70 05
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1018-07A Primer spray can with repair kit A 000 986 32 50
BR00.45-Z-1001-13A Rivet A 003 990 35 97
