Remove/install panoramic roof drive - AR77.21-P-0400TA
MODEL 211.0
with CODE (413) Panoramic sliding roof
with CODE (419) Solar module for panoramic roof

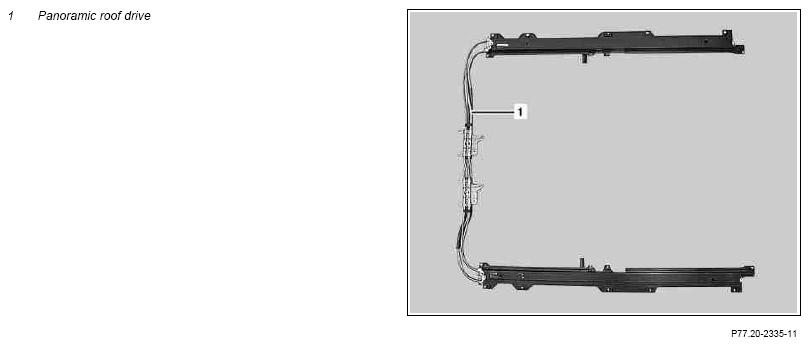

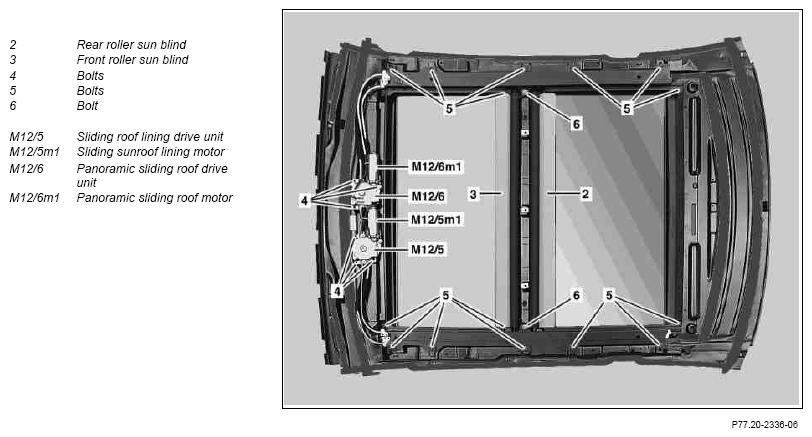

Shown on removed panoramic roof
| Remove | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove front glass roof from panoramic roof | AR77.21-P-0500T | |
| 2 | Remove headliner | AR68.30-P-4300TB | |
| 3 | Remove front roller sun blind (3) from panoramic roof | AR77.21-P-0200T | |
| 4 | Remove rear roller sun blind (2) from panoramic roof | AR77.21-P-0201T | |
| 5 | Remove panoramic sliding roof drive unit (M12/6) | AR77.21-P-1000T | |
| 6 | Remove sliding roof lining drive unit (M12/5) | AR77.21-P-1100T | |
| 7 | Remove cable straps (9) | ||
| 8 | Disconnect electrical connector (8) | ||
| 9 | Expose electrical line (7) to left side of vehicle | ||

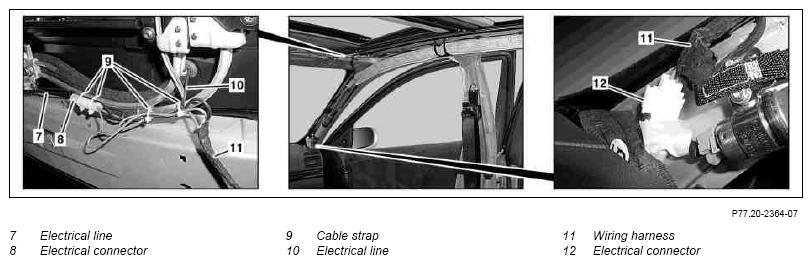

| 10 | Unclip electric wiring harness (11) from A-pillar | ||
| 11 | Expose electrical line (10) from electric wiring harness (11) | ||
| 12 | Disconnect electrical connector (12) | ||
| 13 | Press electrical line plug contact (10) out of electrical connector (12) | *WH58.30-Z-1002-32A | |
| 14 | Unscrew screws (4, 5, 6) | ||
| 15 | Remove panoramic roof drive (1) and remove from vehicle | ||
| Install | |||
| 16 | Move panoramic roof drive (1) into vehicle and position | ||
| 17 | Loosely screw in screws (4, 5, 6) | ||
| 18 | Align panoramic roof drive (1) and tighten screws (4, 5, 6) | ||
| 19 | Adjust panoramic roof drive (1) | AR77.21-P-0400-01T | |
| *BA77.20-P-1002-01A | |||
| Figure | |||
| 20 | Install sliding roof lining drive unit (M12/5) | AR77.21-P-1100T | |
| 21 | Install panoramic sliding roof drive unit (M12/6) | AR77.21-P-1000T | |
| 22 | Install rear roller sun blind (2) of panoramic roof | AR77.21-P-0201T | |
| 23 | Install front roller sun blind (3) of panoramic roof | AR77.21-P-0200T | |
| 24 | Route electrical line (7). | ||
| 25 | Connect electrical connector (8) | ||
| 26 | Clip connector of electrical line (10) into electrical connector (12) and check for tight seat | ||
| 27 | Insert electrical line (10) into electric wiring harness (11) and wrap with insulation tape. | ||
| 28 | Clip electric wiring harness (11) into A-pillar. | ||
| 29 | Connect electrical connector (12) | ||
| 30 | Provide cable strap (9) | ||
| 31 | Install headliner | AR68.30-P-4300TB | |
| 32 | Install front glass roof on panoramic roof | AR77.21-P-0500T |
ELECTRIC SLIDING ROOF
| Number | Designation | Model 211 | ||
|---|---|---|---|---|
| BA77.20-P-1002-01A | Screw to sliding roof drive | Torx | Nm | 4 |
| Hexagon socket | Nm | - |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1002-32A | Commercially available pressing tools for E95, SPT and MPT contacts |
