Adjust panoramic roof drive - AR77.21-P-0400-01T

ELECTRIC SLIDING ROOF

Number	Designation			Model 211
BA77.20-P-1002-01A	Bolt to sliding roof drive	Torx	Nm	4
		Hexagon socket	Nm	-

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

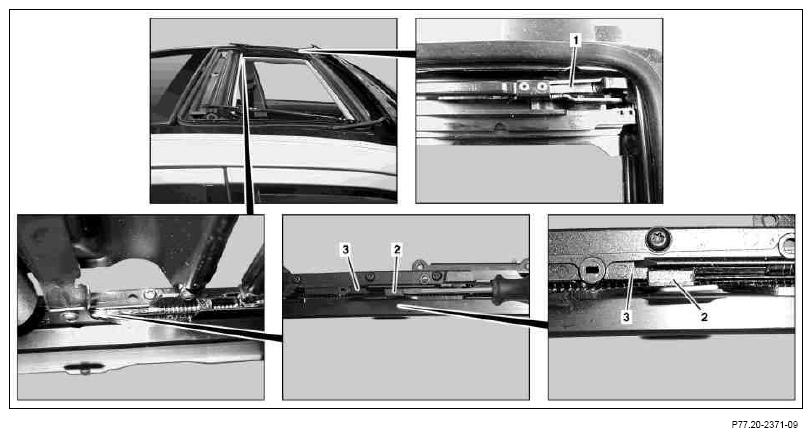

Fig 2: Identifying Tilt Bracket, Push Driver And Stop

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Push tilt bracket (1) on panoramic roof drive on left and right side of vehicle forward against stop.*
Insert panoramic sliding roof drive unit for fastening cables and tighten bolts.
Tighten bolts uniformly. Pay attention to tightening torque.
Push driver (2) for roller sun blind in guide rail on left and right sides of vehicle toward rear against stop (3).*
Insert sliding roof lining drive unit for fastening cables and tighten bolts.

Tighten bolts uniformly. Pay attention to tightening torque.
