Remove/install panoramic front glass roof - AR77.21-P-0500T
MODEL 211.0 with CODE (413) Panoramic sliding roof
MODEL 211.0
with CODE (413) Panoramic sliding roof
with CODE (419) Solar module for panoramic sunroof
Shown on left side of vehicle with water repellent removed
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove rubber bellows on front panoramic glass roof on left and right side of vehicle | AR77.21-P-0530T | |

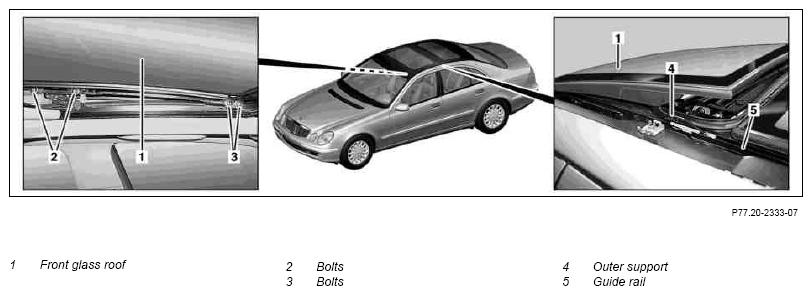

| 2 | Unscrew screws (2, 3) from left and right side of vehicle | ||
| 3 | Lift front glass roof (1) | ||
| 4 | Move front glass roof (1) with outer supports (4) toward front out of guide rails (5) on left and right side of vehicle and remove | ||
| Install | |||
| 5 | Lubricate sliding blocks on outer support (4) | Special sliding roof antifriction agent | *BR00.45-Z-1055-06A |
| 6 | Install front glass roof (1) with outer supports (4) in guide rail (5) on left and right side of vehicle | ||
| 7 | Loosely screw in screws (2, 3) | ||
| 8 | Adjust front glass roof on panoramic sunroof | AR77.21-P-0501T | |
| 9 | Tighten bolts (2, 3) | *BA77.21-P-1001-01A | |
| 10 | Install rubber bellows on front panoramic glass roof | AR77.21-P-0530T |
PANORAMIC ROOD
| Number | Designation | Type 211.0 | |
|---|---|---|---|
| BA77.21-P-1001-01A | Screw, front glass roof to bracket | Nm | 5 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1055-06A | Special sliding compound | A 000 989 36 60 |
