Remove/install sliding roof lining drive unit - AR77.21-P-1100T

MODEL 203.7, 211.0 with CODE (413) Panoramic sliding roof

MODEL 211.0

with CODE (413) Panoramic sliding roof

with CODE (419) Solar module for panoramic roof

Shown on model 211.0

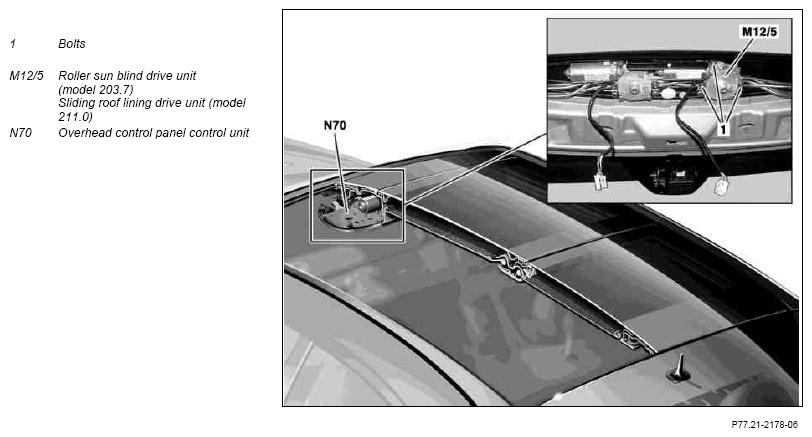

Fig 1: Identifying Sliding Roof Lining Drive Unit Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

18.7.06

Only loosen headliner, do not remove

Steps 3.1, 3.2

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Close front glass roof
2	Completely open sliding roof lining or roller sun blind	According to vehicle model.
3.1	Loosen front headliner and shim with spacers until roller sun blind drive unit (M12/5) is accessible.	Model 203.7	AR68.30-P-4300PB
3.2	Loosen front headliner and shim with spacers until sliding roof lining drive unit (M12/5) is accessible	Model 211.0F	AR68.30-P-4300TB
4	Remove bolts (1)	Installation: Uniformly tighten down screws (1).
5	Install in the reverse order
6	Normalize sliding roof lining drive unit (M12/5) or roller sun blind drive unit (M12/5)	According to vehicle model.
