Remove/install panoramic roof drive - AR77.21-P-0400T
MODEL 211.0 with CODE (413) Panoramic sliding roof

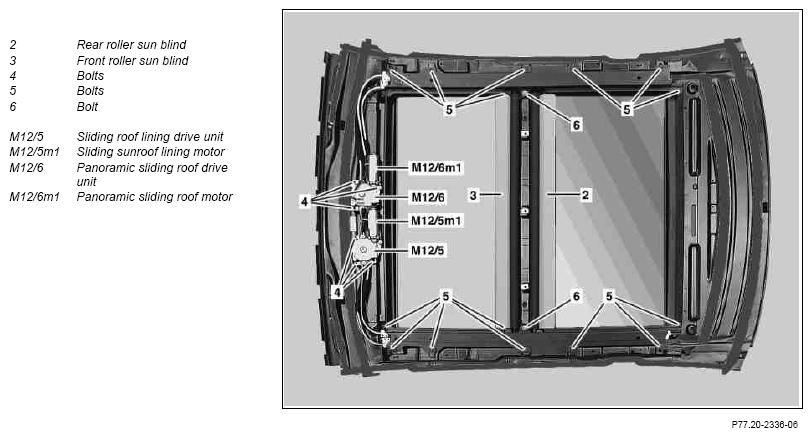

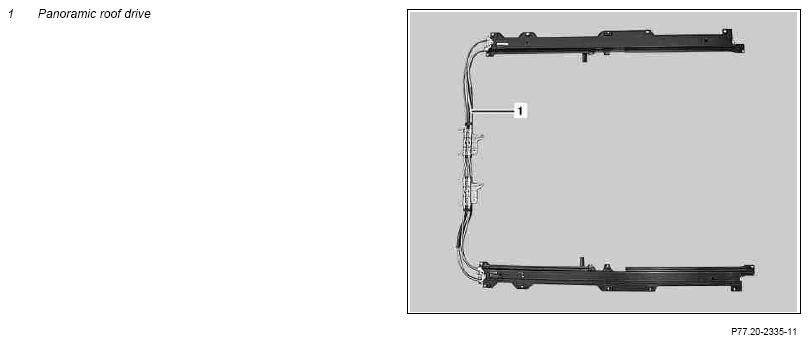

Shown on removed panoramic roof
| Remove | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Remove front glass roof from panoramic roof | AR77.21-P-0500T | |
| 2 | Remove headliner | AR68.30-P-4300TB | |
| 3 | Remove front roller sun blind (3) from panoramic roof | AR77.21-P-0200T | |
| 4 | Remove rear roller sun blind (2) from panoramic roof | AR77.21-P-0201T | |
| 5 | Remove panoramic sliding roof drive unit (M12/6) | AR77.21-P-1000T | |
| 6 | Remove sliding roof lining drive unit (M12/5) | AR77.21-P-1100T | |
| 7 | Unscrew screws (4, 5, 6) | ||
| 8 | Remove panoramic roof drive (1) and remove from vehicle | ||
| Install | |||
| 9 | Move panoramic roof drive (1) into vehicle and position | ||
| 10 | Loosely screw in screws (4, 5, 6) | ||
| 11 | Align panoramic roof drive (1) and tighten screws (4, 5, 6) | ||
| 12 | Adjust panoramic roof drive (1) | AR77.21-P-0400-01T | |
| *BA77.20-P-1002-01A | |||
| Figure | |||
| 13 | Install sliding roof lining drive unit (M12/5) | AR77.21-P-1100T | |
| 14 | Install panoramic sliding roof drive unit (M12/6) | AR77.21-P-1000T | |
| 15 | Install rear roller sun blind (2) of panoramic roof | AR77.21-P-0201T | |
| 16 | Install front roller sun blind (3) of panoramic roof | AR77.21-P-0200T | |
| 17 | Install headliner | AR68.30-P-4300TB | |
| 18 | Install front glass roof on panoramic roof | AR77.21-P-0500T |
ELECTRIC SLIDING ROOF
| Number | Designation | Model 211 | ||
|---|---|---|---|---|
| BA77.20-P-1002-01A | Screw to sliding roof drive | Torx | Nm | 4 |
| Hexagon socket | Nm | - |
