Remove/install fuel tank - AR47.10-P-4100SX

MODEL 216 with ENGINE 156, 157, 273, 275, 278

MODEL 221 with ENGINE 156, 157, 272, 273, 275, 276, 278, 629, 642

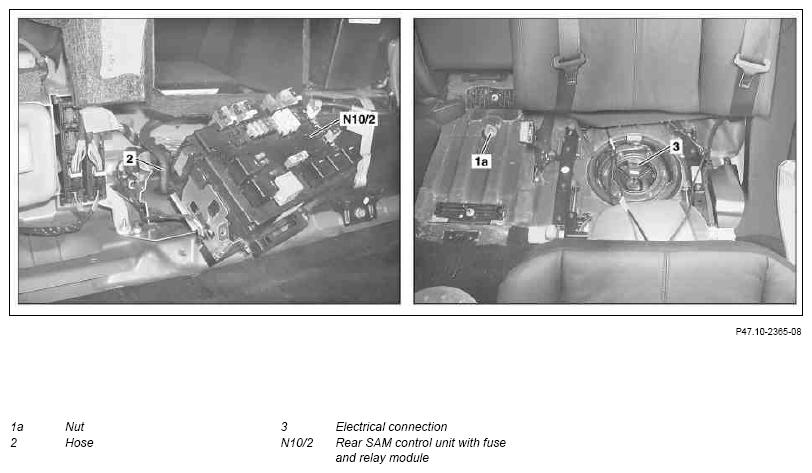

Fig 1: Identifying Fuel Tank Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

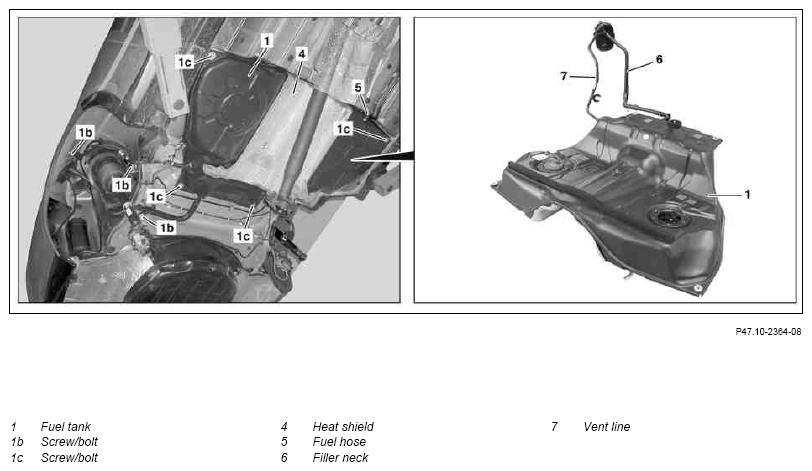

Fig 2: Identifying Fuel Tank Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel.	No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only. Wear protective clothing when handling fuel.	AS47.00-Z-0001-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
1.1	Empty fuel tank (1) over the fuel pump	If fuel pump is intact
		Vehicles with diesel engine	AR47.10-P-4001SXI
		Vehicles with gasoline engine	AR47.10-P-4001SX
1.2	Empty fuel tank (1) for a defective fuel pump	If fuel pump is defective
		MODEL 216 with ENGINE 156, 157, 273, 275, 278 MODEL 221 with ENGINE 156, 157, 272, 273, 275, 276, 278, 629, 642	AR47.10-P-4000SX
2	Detach rear SAM control unit with fuse and relay module (N10/2) and place into trunk with the lines connected		AR54.21-P-1258SX
3	Detach hose (2) from fuel tank (1)	Hose clamp pliers	Fig 3
4	Disconnect electrical connection (3)
5	Remove center rear seat cushions or continuous rear seat cushions and unscrew nuts (1a)	Model 221.0 with code 223, rear bench seat with electrically adjustable outer seats, lumbar support and pneumatically raisable head restraints. Model 221.1 with code 223, rear bench seat with electrically adjustable outer seats, lumbar support and pneumatically raisable head restraints or with code 224, design of individual rear seat system.	AR91.12-P-1020SZ
		Model 221.0 except code 223, rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints. Model 221.1 except code 224, rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints, code 223 and except design of individual rear seat system.	AR91.12-P-1020SY
		Model 221.0 with code 223, rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints. Model 221.1 with code 223, rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints, or with code 224, design of individual rear seat system.	AR91.12-P-1020SX
		MODEL 221.1 with ENGINE 275, 629 with CODE Z07 (Top protection)	AR91.12-P-1020SXS
		Model 216 For model 221 with code Z07 lift highest protection to loosen the nut (1a) for special protection mat at rear.	AR91.12-P-1020SC
		Nut or bolt, fuel tank to vehicle floor	*BA47.10-P-1002-01L
6.1	Remove underfloor paneling	Vehicles without top protection
			AR61.30-P-1001SX
6.2	Remove center underbody protection plates	Model 221.1 with maximum protection, code Z07
			AR61.40-P-1000SXS
7	Remove complete rear axle		AR35.10-P-0010SX
8	Remove heat shield (4)	When replacing fuel tank (1)
9	Remove fuel hose (5) from fuel tank (1)	Collect escaping fuel.
10	Detach fuel return hose from fuel tank (1)	MODEL 221 with ENGINE 629, 642 Collect escaping fuel.
11	Remove fuel filler flap with filler neck recess		AR88.60-P-2000SX
12	Remove screw/bolts (1b)	Bolt, filler neck to body	*BA47.10-P-1003-01L
13	Remove screw/bolts (1c)	Nut or bolt, fuel tank to vehicle floor	*BA47.10-P-1002-01L
14	Take out fuel tank (1)	Never handle fuel tank (1) at the filler neck (6) or at the vent line (7). The fuel tank (1) will be damaged otherwise. The filler neck (6) and vent line (7) cannot be replaced separately!
15	Replace fuel tank (1)	For a damaged fuel tank (1) Dispose of fuel tank (1) appropriately and observe the environmental protection provisions.
16	Install in the reverse order
	Check
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
17	Check fuel system for leaks with engine running

Fig 3: Identifying Hose Clamp Pliers (003 589 03 37 00)

Courtesy of MERCEDES-BENZ USA
