Empty/fill fuel tank - AR47.10-P-4001SX
MODEL 216 with ENGINE 156, 157, 273, 275, 278
MODEL 221 with ENGINE 156, 157, 272, 273, 275, 276, 278
| Drain | |||
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel | No fire, sparks, open flames or smoking. Only pour fuels into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| 1.1 | Remove front engine cover and detach hose (1) on air filter housing (2) | See remove/install air filter housing: | |
| Engine 272, 273 in model 221, engine 273 in model 216 | AR09.10-P-1150SX | ||
| Engine 156 in model 216, 221 | AR09.10-P-1150SMG | ||
| 1.2 | Remove engine trim panel | Engine 275 in model 216.376, 221.176 | AR01.10-P-2405LA |
| Engine 275 in model 216.379, 221.179 Engines 157, 278 |
AR01.10-P-2405IM | ||
| 1.3 | Remove resonance intake manifold | Engine 276 | AR09.20-P-1961MMA |
| 2 | Unscrew protective cap from (3a) service valve (3) | ||
| *BA07.03-P-1004-01B | |||
| Engine 276 | *BA07.03-P-1007-01D | ||
| Engines 157, 278 | *BA07.03-P-1007-01E | ||
| 3 | Insert end of pressure hose (01) into safety container (4) and fix in place | *BF47.10-P-1001-01H | |

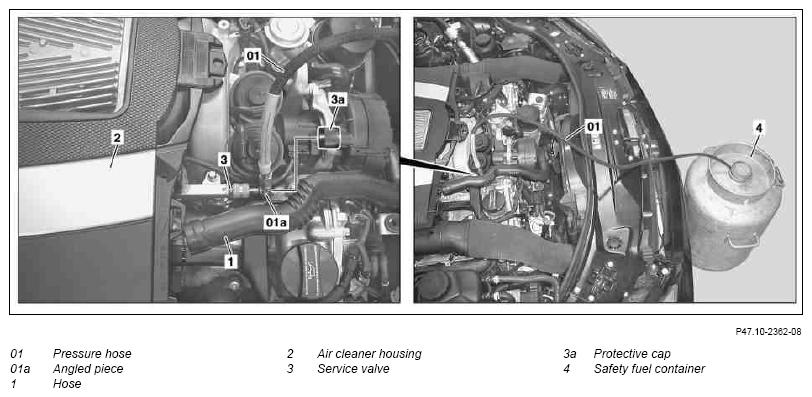

| Fig 3 | |||
| 4 | Screw union nut for angled piece (01a) onto the service valve (3) | ||
| 5 | Fold center armrest (5) in the rear and cover (6) forwards | ||
| 6 | Remove cover above rear SAM control unit with fuse and relay module (N10/2) | ||
| 7 | Pull out fuel pump relay (N10/2kS) | ||
| 8 | Connect up jacks (30, 87) using lines (13, 20) from the electrical connection kit | ||

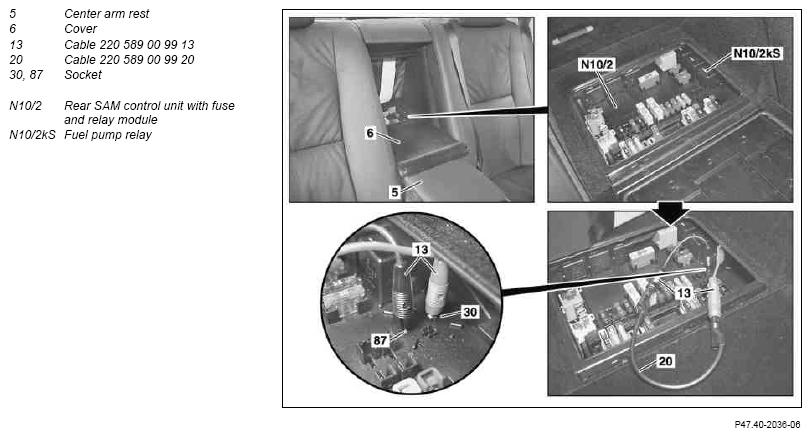

| Fig 4 | |||
| 9 | Remove end of pressure hose (01) from safety container (4) and close off safety container (4) | ||
| 10 | Install in the reverse order | ||
| Fill | |||
| 11 | Pump fuel through filler neck into fuel tank | ||
| Checking | |||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 12 | Check fuel system for leaks with engine running |
INJECTORS, INJECTION VALVES, LINES
| Number | Designation | Engine 272 | ||
|---|---|---|---|---|
| BA07.03-P-1004-01B | Protective cap on service valve | Plastic | Nm | 2 |
| Metal | Nm | 15 | ||
INJECTORS, INJECTION VALVES, LINES
| Number | Designation | Engine 276 | ||
|---|---|---|---|---|
| BA07.03-P-1007-01D | Protective cap on service valve | Plastic | Nm | 2 |
| Metal | Nm | 15 | ||
INJECTORS, INJECTION VALVES, LINES
| Number | Designation | Engine 157 | Engine 278 | ||
|---|---|---|---|---|---|
| BA07.03-P-1007-01E | Protective cap on service valve | Plastic | Nm | 2 | 2 |
| Metal | Nm | 15 | 15 | ||
FUEL TANK
| Number | Designation | Model 216.317/376/386 | Model 216.373/394 | Model 216.374/377/379 | ||
|---|---|---|---|---|---|---|
| BF47.10-P-1001-01H | Fuel tank capacity | Total filling capacity | Liters | 90 | 83 | 90 |
| Reserve capacity | Liters | 11 | 11 | 14 | ||
FUEL TANK
| Number | Designation | Model 221.022/028/054/056/070/071/080/084/086/087/095/122/128/154/156/170/171/176/180/184/186/187/195 Model 221.003/026/057/073/082/083/094/103/126/157/173/182/183/194 with code 830 | Model 221.003/026/057/073/082/083/094/103/126/157/173/182/183/194 without code 830 | ||
|---|---|---|---|---|---|
| BF47.10-P-1001-01H | Fuel tank capacity | Total filling capacity | Liters | 90 | 83 |
| Reserve capacity | Liters | 11 | 11 | ||
FUEL TANK
| Number | Designation | Model 221.074/077/174/177/179 | ||
|---|---|---|---|---|
| BF47.10-P-1001-01H | Fuel tank capacity | Total filling capacity | Liters | 90 |
| Reserve capacity | Liters | 14 | ||
