Remove/install underbody paneling - AR61.30-P-1001SX
MODEL 216
MODEL 221 except CODE (Z07) Top protection

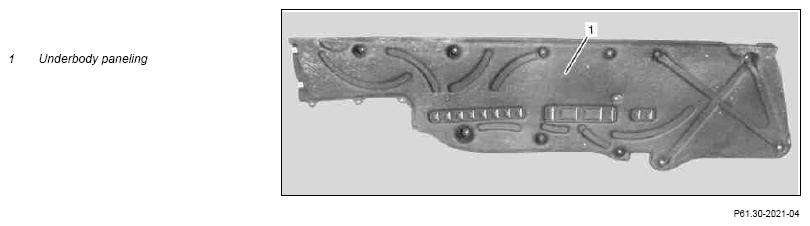

Shown on left underbody paneling on model 221
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | AR00.60-P-1000SX | |
| 2 | Remove left and right underfloor paneling (1) | ||
| 3 | Install in the reverse order |
