Remove/install power steering pump - AR46.30-P-0500GZ
MODEL 164 (except 164.177)
Shown on engine 642
| Remove/install | |||
|---|---|---|---|
| Risk of injury to skin or eyes caused by hydraulic fluid spraying out under high pressure. Risk of poisoning caused by swallowing hydraulic fluid | Depressurize the hydraulic system completely before starting any work on the system. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 4 | Extract oil from expansion reservoir of power steering pump (1). | Figure | |
| 5 | Remove expansion reservoir of power steering pump (1) | Engine 113, 272, 273 | AR46.25-P-1000GZA |
| Engine 629 | AR46.25-P-1000GZC | ||
| 6 | Disconnect hose of expansion reservoir at power steering pump (1) | Fig 3 | |
| 7 | Discharge air conditioning system | Engine 629 |
AR83.30-P-1760GZ |
| 11 | Remove poly-V belt from power steering pump (1) | Engine 113 | AR13.22-P-1202GZ |
| Engine 272, 273 | AR13.20-P-0001GZA | ||
| Engine 642 | AR13.20-P-0001GZB | ||
| Engine 629 | AR13.22-P-1202GZD | ||
| 12 | Remove front section of fender liner in right front fender | Engine 629 | AR88.10-P-1300GZ |
| 13 | Remove banjo bolt from high-pressure expansion hose connection (6) of power steering pump (1) | ||
| *BA46.30-P-1002-01J | |||
| *BA46.30-P-1008-01H | |||

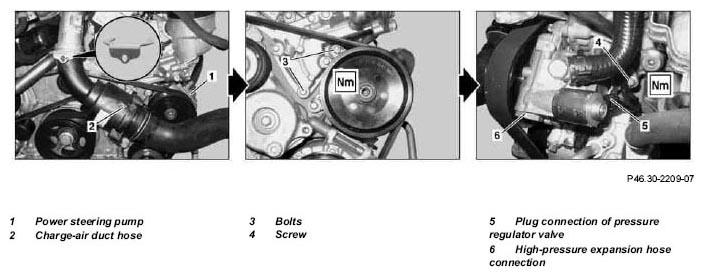

| Figure | |||
| 14 | Disconnect pressure regulator valve connector (5) from power steering pump (1) | Engine 642 | |
| 15 | Remove bolts (3) and bolt (4) of power steering pump (1) from timing case cover | *BA46.30-P-1001-01J | |
| *BA46.30-P-1003-01H | |||
| 16 | Remove power steering pump (1) | ||
| 17 | Install in the reverse order | ||
| 18 | Fill and bleed power steering pump (1) | AR46.30-P-0010GZ | |
| Checking | |||
| 19 | Check the steering system for leaks when the engine is running. |
POWER STEERING PUMP
| Number | Designation | Model 164.1/8, 251 with engine 642 | Model 164.1/8, engine 629 | ||
|---|---|---|---|---|---|
| BA46.30-P-1001-01J | Bolt, power steering pump to control housing | M8 x 20 | Nm | 20 | 20 |
| M8 x 30 | Nm | 20 | 20 | ||
| M8 x 34 | Nm | 35 | 35 | ||
| M8 x 44 | Nm | 35 | 35 | ||
| BA46.30-P-1002-01J | Banjo bolt, high pressure expansion hose to power steering pump | Nm | 45 | 45 | |
POWER STEERING PUMP
| Number | Designation | Engine 113 in mode l164, 251 | Engine 272 in model 164, 251 | Engine 273 in model 164, 251 | ||
|---|---|---|---|---|---|---|
| BA46.30-P-1003-01H | Bolt, power steering pump to timing case cover | M8 x 30 | Nm | 20 | 20 | 20 |
| M8 x 34 | Nm | 35 | 35 | 35 | ||
| M8 x 44 | Nm | 35 | 35 | 35 | ||
| BA46.30-P-1008-01H | Banjo bolt, power steering pressure line to power steering pump | Nm | 45 | 45 | 45 | |
