Drain, evacuate and refill air conditioning, check function and check for leaks - AR83.30-P-1760GZ

MODEL 164 with CODE (580) Automatic air conditioning with CODE (581) Comfort automatic air conditioning with CODE (582) Rear air conditioner

Illustrated on model 164.186

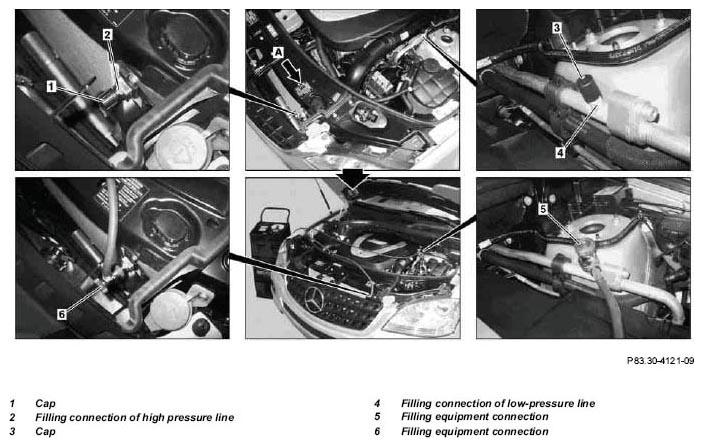

Fig 1: Identifying Drain, Evacuate And Refill Air Conditioning Components - Illustrated On Model 164.186

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Draining
	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been discharged.	AS83.00-Z-0001-01A
	Procedure if air conditioning system is damaged or leaking		AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-P-0005-01P
	Notes on handling refrigerant R134a	Air conditioning with refrigerant R134a	AH83.30-N-0003-01A
	For all steps, proceed as per the operating instructions for the air conditioning vacuum, recycling and filling unit for refrigerant R134a
1	Unscrew plug (1, 3)	Depending on the engine model, various installation positions are possible for the filling connection of the high pressure line and for the filling connection of the low-pressure line.
2	Connect the air conditioning vacuum, recycling and filling unit for refrigerant R134a to the vehicle	Connect the filling unit connection (6) to the filling connection of the high pressure line (2) and the filling unit connection (5) to the filling connection for the low-pressure line (4) Air conditioning vacuum, recycling and charging equipment for refrigerant R134a, refer to GOTIS
3	Extract refrigerant R134a	Make note of the amount of refrigerant compressor oil extracted. Air conditioning vacuum, recycling and charging equipment for refrigerant R134a, refer to GOTIS
	Evacuate
4	Replace fluid reservoir (drier cartridge)	Only if refrigerant circuit has been opened.
		Model 164, 251/(except 164.177, 251.077 /177) With automatic air conditioning, code 580 With comfort automatic air conditioning, code 581 With rear air conditioner, code 582	AR83.30-P-6520GZ
		Model 164.177, 251.077 /177 With automatic air conditioning, code 580 With comfort automatic air conditioning, code 581 With rear air conditioner, code 582	AR83.30-P-6520RT
5	Clean refrigerant R134a and evacuate air conditioning system	Air conditioning vacuum, recycling and charging equipment for refrigerant R134a, refer to GOTIS
	Charging
6	Replace the quantity of refrigerant compressor oil noted when evacuating the air conditioning system with new refrigerant compressor oil, fill it into the refrigerant circuit	Strictly observe the specifications of the adhesive data label (arrow A) of the air conditioning to prevent damage caused by overfilling or underfilling. The adhesive data label of the air conditioning contains specific data for the each vehicle. The AC compressor oil to be used is indicated in addition to the refrigerant quantity! If the wrong quantity of refrigerant compressor oil is filled, then the refrigerant compressor may be damaged. Air conditioning vacuum, recycling and charging equipment for refrigerant R134a, refer to GOTIS
7	Fill air conditioning system	Strictly observe the specifications of the adhesive data label (arrow A) of the air conditioning to prevent damage caused by overfilling or underfilling. The adhesive data label of the air conditioning contains specific data for the each vehicle. The AC compressor oil to be used is indicated in addition to the refrigerant quantity!
		Air conditioning system/automatic climate control filling capacity	*BF83.00-P-1001-01F
		Refrigerant compressor filling quantity	*BF83.55-P-1001-01I
		Additional quantity of oil to be added when system suddenly looses fluid (e.g. line ruptured)	*BF83.55-P-1002-01I
		Additional oil filling quantity after replacing the condenser	*BF83.55-P-1003-01I
		Additional oil filling quantity after replacing evaporator	*BF83.55-P-1004-01I
		Additional oil filling quantity after replacing the fluid reservoir	*BF83.55-P-1005-01I
		Additional oil filling quantity after replacing the low-pressure line	*BF83.55-P-1006-01I
		Additional oil filling quantity after replacing the high pressure line	*BF83.55-P-1007-01I
		Additional oil filling quantity after replacing the refrigerant compressor	*BF83.55-P-1008-01I
		Additional oil filling capacity in case of detectable leakage	*BF83.55-P-1009-01I
		Additional oil filling quantity after replacing rear air conditioning evaporator	*BF83.55-P-1010-01I
		Additional oil filling quantity after replacing rear AC lines	*BF83.55-P-1011-01I
		Additional oil filling quantity after replacing evaporator (rear compartment)	*BF83.55-P-1012-01I
		Additional filling capacity for refrigerant compressor with rear air conditioning Air conditioning vacuum, recycling and charging equipment for refrigerant R134a, refer to GOTIS	*BF83.55-P-1013-01I
8	Perform pressure test on AC system	Air conditioning vacuum, recycling and charging equipment for refrigerant R134a, refer to GOTIS
9	Disconnect the filling unit connection (6) from the filling connection for the high pressure line (2) and the filling unit connection (5) from the filling connection for the low-pressure line (4).	Air conditioning vacuum, recycling and charging equipment for refrigerant R134a, refer to GOTIS
10	Screw on plug (1, 3)	Replace damaged plugs!
	Check
11	Check air conditioning system for leakage with air conditioning leak detector.	Air conditioning leak detector, refer to GOTIS
