Remove/install fender liner in front fender - AR88.10-P-1300GZ

MODEL 164

Shown on model 164.1

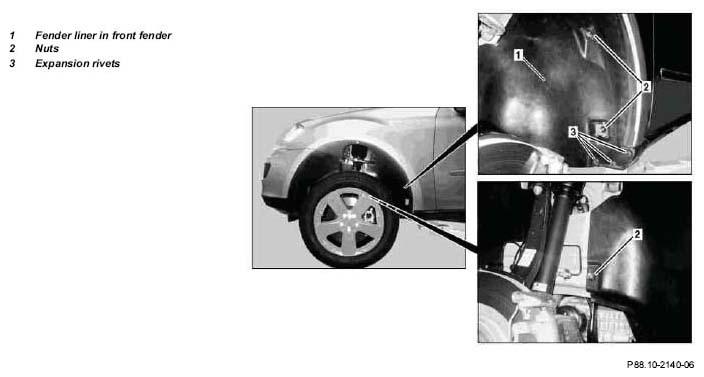

Fig 1: Identifying Fender Liner In Front Fender Remove/Install Components - Shown On Model 164.1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Lift/jack up vehicle		AR00.60-P-1000GZ
2	Remove fender liner front section in front fender (1)		AR88.10-P-1310GZ
3	Unscrew nuts (2).
4	Remove expansion rivets (3)
5	Remove fender liner in front fender (1).	Installation:  Ensure that fender liner is seated correctly in front fender.
6	Install in the reverse order
