Notes on application of sealant to front cover of the cylinder head - AH01.30-P-1000-02V
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

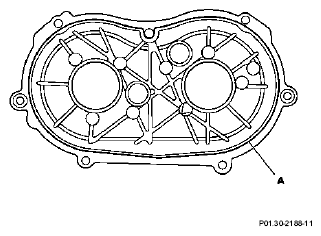

Application of sealant to the right front cover
The line (A) identifies the sealant run.
The sealing compound must only be applied along the line (A) in the form of a bead with a height and width of 1.0 mm (+0.5 mm).
The sealing compound must be applied within 10 minutes.
The sealing compound bead must not be spread. Only the approved sealant may be used.

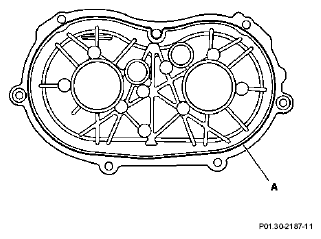

Application of sealant to the left front cover
