Attaching engine supporting frame and lifting engine - AR33.10-P-0100-01GZ

Shown on model 164.1 with engine 113

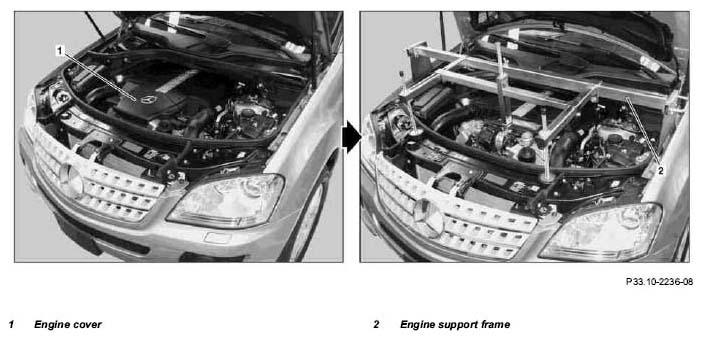

Fig 1: Identifying Engine Cover And Engine Support Frame

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Remove engine trim panel (1)
2. Position engine support frame (2) on inner flanges of fenders and position front supports directly next to rubber scoops on left and right-hand side.

   Position front supports as close as possible to rubber scoops, otherwise load on radiator crossmember will be too great.

3. Adjust engine support frame (2) such that all supports make contact with fender flange and radiator crossmember.
4. Attach engine to eyelet and lift using spindle until front engine mount is fully relieved of load.
