Remove and install bottom engine compartment paneling - AR61.20-P-1105GZ
MODEL 164.172 /175 /177 /186 /871 /886

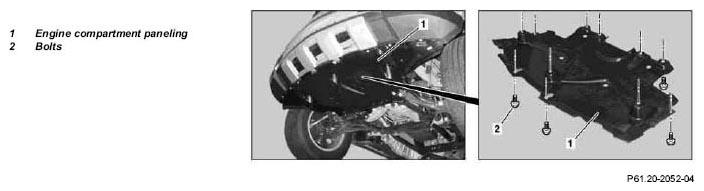

Shown on model 164.175
| Remove/install | |||
|---|---|---|---|
| Risk of death caused by vehicle slipping or toppling off of the vehicle lift support arm. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle with two-post lift | AR00.60-P-1000GZ | |
| 2 | Remove bolt (2) | ||
| 3 | Remove engine compartment paneling (1) | ||
| 4 | Install in the reverse order |
