Notes on application of sealant to oil pan - AH01.45-P-0001-01GZ
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.
Engine 113.964/971, 156.980
Application of sealant on the oil pan top section

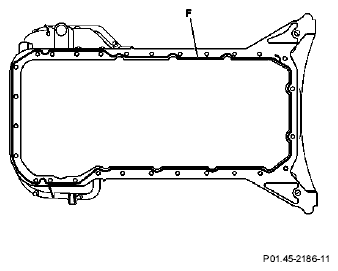

The line drawn (F) identifies the course of application of sealant.
The sealant must only be applied to the specified surfaces in the form of a sealant bead 2.0 mm (± 0.5 mm) diameter.
The sealant must be applied within 10 min. The sealant bead must not be spread. Use only sealant listed in the Repair Products.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Application of sealant to bottom part of oil pan
The line drawn (F) identifies the course of application of sealant.
The sealant must only be applied to specified surfaces in the form of a sealant bead 2.0 mm (± 0.5 mm) diameter.
The sealant must be applied within 10 min. The sealant bead must not be spread. Use only sealant listed in the Repair Products.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
