Remove/install front engine mounts and/or engine support - AR22.10-P-1260GZA (ML550, GL450, GL550)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 273 in MODEL 164

Shown on engine 272.967, right side of engine

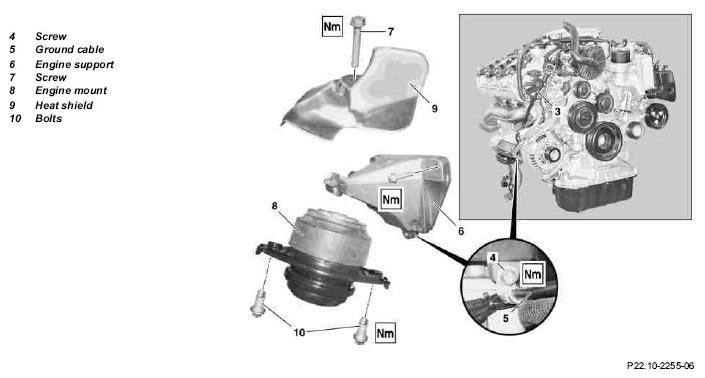

Fig 1: Identifying Front Engine Mount And Engine Support Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
	General information	Engine mounts must be always be replaced in pairs.
1	Remove strut tower brace	Model 164.8	AR62.30-P-2500GY
2	Remove air filter housing		AR09.10-P-1150GZA
3	Detach steering coupling from rack-and- pinion steering		AR46.10-P-8000GZ
		Holding device	Fig 3
4	Disconnect ground cable from battery		AR54.10-P-0003GZ
5.1	Remove bottom engine compartment paneling	Except code (430) Offroad package	AR61.20-P-1105GZ
5.2	Remove underride guard	With code (430) Offroad package	AR88.30-P-0010GZ
6	Remove cross strut on the left and right on rear engine crossmember	See ↓ Remove/install rear engine cross member	AR22.10-P-1180GZD
7	Remove CAT on the left and right	O2 sensors remain in the catalytic converters	AR49.10-P-7100GZA
8	Remove engine mount (8) bolts (7) using an engine mount wrench	Installation: First screw engine mount (8) onto engine support (6) using bolts (7). The anti-twist lock for engine mount (8) must sit in cutouts on the engine support (6). The heat shield (9) must be correctly positioned on the engine support (6). Then lower engine on the front axle carrier into the mounts foreseen for that purpose.	*BA22.10-P-1001-03G
			*BA22.10-P-1002-03G
		Set of engine mount wrenches	Fig 2
9	Attach engine hoist	Observe manufacturer's assembly specifications and safety information.
10	Remove engine mount (8) bolts (10) from front axle carrier		*BA22.10-P-1001-03G
11	Raise engine	Pay attention when lifting out engine that no lines are damaged and that engine does not lean against partition wall.
12	Take out engine mount (8)	Both engine mounts downward and to rear
	Right engine support
13	Remove bolt (7) and heat shield (9)
14	Remove bolt (4) and place ground line (5) to one side
15	Remove engine support (6)		*BA22.10-P-1001-02A
	Left engine support
16	Remove bolt (7) and heat shield (9)	Installation: Pay attention to the cutouts for the engine support.
17	Remove engine support (6)		*BA22.10-P-1001-02A
18	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 164
BA22.10-P-1001-03G	Bolt, front engine mount to front axle carrier	Nm	53
BA22.10-P-1002-03G	Bolt, front engine mount to engine support	Nm	53

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Engine 273
BA22.10-P-1001-02A	Bolt, engine support to crankcase	Stage 1	Nm	20
BA22.10-P-1001-02A	Bolt, engine support to crankcase	Stage 2	∠°	90

Fig 2: Identifying Set Of Engine Bearing Wrenches (001 589 01 16 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Holding Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
