Remove/install dome strut - AR62.30-P-2500GY

MODEL 164.8

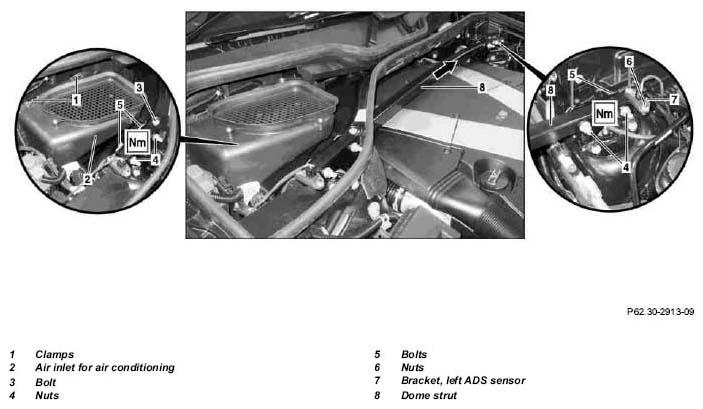

Fig 1: Identifying Dome Strut Components

G05259157

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown on model 164.8 with engine 629

	Remove/install
1	Open engine hood		AR88.40-P-1000GZ
2	Loosen clamps (1), remove air inlet for air conditioning (2) upwards	Installation: The lug at the bottom of the air inlet for air conditioning (2) must engage in the corresponding guide.
3	Unscrew nuts (6), place bracket of left ADS sensor (7) to one side	Do not separate the left ADS sensor (7) electrically.
4	Remove bolt (3)
5	Unscrew nuts (4)		*BA62.30-P-1005-02D
6	Remove bolts (5) to the rear
7	Lift dome strut (8) on the left side slightly and remove to the left (arrow)	Installation: Check the seat of the rubber seal through which the dome strut (8) runs.
8	Install in the reverse order

FRONT END ASSEMBLY WITH FRONT REINFORCEMENT

Number	Designation		Model 164.8
BA62.30-P-1005-02D	Nut, for dome strut bolted connection to bracket	Nm	50
