Remove/install underride guard - AR88.30-P-0010GZ

MODEL 164 with CODE (430) Offroad package

Shown on model 164.8 with engine 629

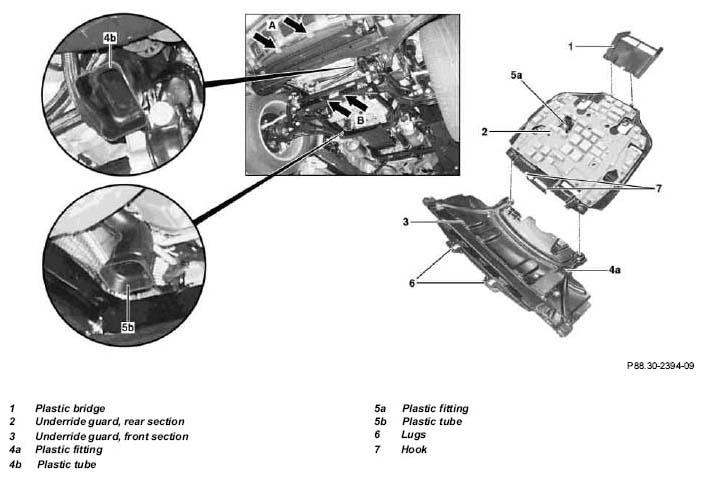

Fig 1: Identifying Underride Guard Remove/Install Components - Shown On Model 164.8 With Engine 629

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
1	Raise vehicle		AR00.60-P-1000GZ
2	Unscrew bolts on underride guard front section (3), remove underride guard front section (3).	Use aid of helper because underride guard is extremely heavy. Installation:  It is necessary to slide lugs (6) below counter elements (arrows) on bumper. Installation on engine 629  : Align plastic tube (4b) and plastic fitting (4a) with one another.
3	Unscrew bolts from underride guard rear section (2), pivot underride guard rear section (2) toward front and remove.	Use aid of helper because underride guard are extremely heavy. Installation:  Insert hooks (7) into holes (arrows B) on front axle carrier. Installation on engine 629  : Align plastic tube (5b) and plastic fitting (5a) with one another
4	Unscrew rear bolts from plastic bridge (1), remove plastic bridge (1).
5	If applicable, transfer plastic fittings (4a, 5a)	Only for engine 629.
6	Install in the reverse order
