Remove/install steering coupling - AR46.10-P-8000GZ

MODEL 164

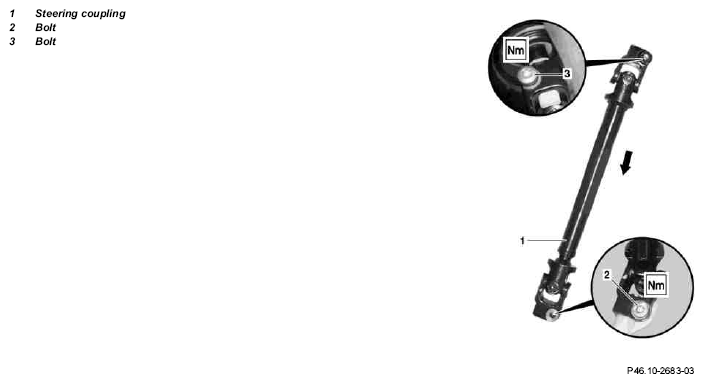

Fig 1: Identifying Steering Coupling Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
1	Open engine hood		AR88.40-P-1000GZ
2	Turn steering wheel to central position (front wheels in straight ahead position) and secure with the retaining device	On a disengaged steering coupling (1) the steering wheel should not be turned because the spiral contact coil will be destroyed.
			Fig 2
3.1	Remove air filter housing	Engine 113	AR09.10-P-1150GZ
		Engine 156	AR09.10-P-1150GZS
		Engine 272, 273	AR09.10-P-1150GZA
		Engine 629	AR09.10-P-1150GZD
3.2	Remove air filter housing, left side	Engine 642	AR09.10-P-1150GZB
4	Unclip left engine intake air duct	Engines 156, 642
5	Unscrew bolt (2) from steering coupling (1) to rack-and-pinion steering	Installation:  The bolt (2) must be replaced.
			*BA46.10-P-1002-01J
6	Unscrew bolt (3) from steering coupling (1) to steering shaft	Installation:  The bolt (3) must be replaced.
			*BA46.10-P-1001-01J
7	Carefully pull steering coupling (1) out of rack-and-pinion steering control valve	Do not use force (blows from a hammer, strong leverage); if necessary, expand the clamping slot slightly using a screwdriver.
		Installation:  Turn rack-and-pinion steering to center position and fit steering coupling (1).	AR46.20-P-0600-01GZ
8	Push steering coupling (1) together (arrow) and pull out of steering shaft	Do not use force as the corrugated tube is sensitive to lateral forces. Enlarge clamping groove a little with a screwdriver if necessary.
9	Install in the reverse order

STEERING SHAFT

Number	Designation		Model 164.1/8
BA46.10-P-1001-01J	Bolt, steering coupling to steering shaft	Nm	33
BA46.10-P-1002-01J	Bolt, steering coupling to rack-and-pinion steering	Nm	33

Fig 2: Identifying Holding Device (129 589 01 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
