Remove/install engine mount - AR22.10-P-1100GZ (ML500)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

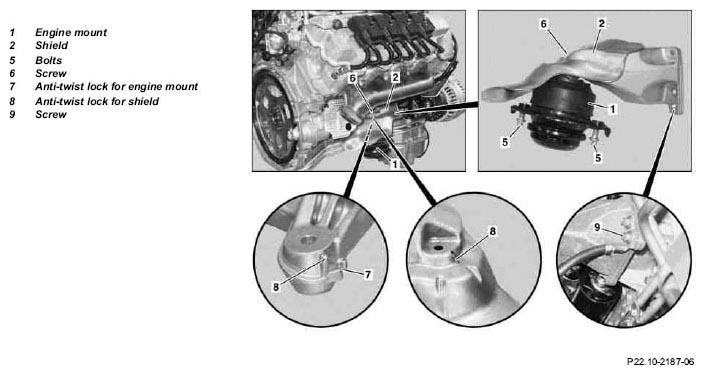

Shown on right side of engine

Fig 1: Identifying Engine Mount Components - Shown On Right Side Of Engine

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

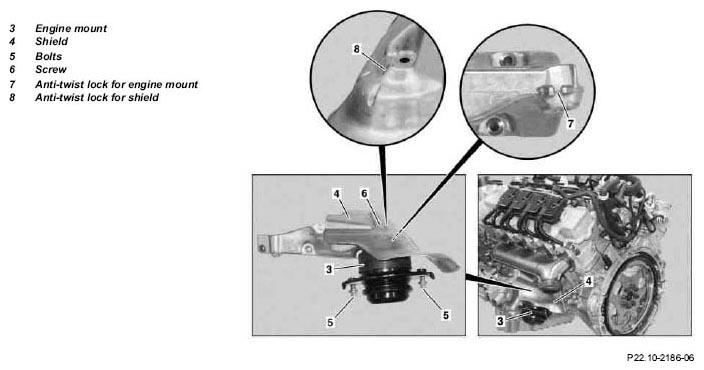

Shown on left side of engine

Fig 2: Identifying Engine Mount Components - Shown On Left Side Of Engine

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of death caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery	All models	AH54.10-P-0001-01A
	Notes on self-locking nuts and bolts	All models	AH00.00-N-0001-01A
1	Open engine hood		AR88.40-P-1000GZ
2.1	Disconnect ground line from battery	Only when removing engine mount on the right side.	AR54.10-P-0003GZ
3	Raise vehicle with lifting platform		AR00.60-P-1000GZ
4	Remove left and right suction fan duct
5	Remove air filter housing		AR09.10-P-1150GZ
6	Mount the engine lifting device and raise the engine until the front engine mounts (1, 3) are not under load	Engine supporting frame basic frame side piece (M/S class), refer to GOTIS http://gotis.aftersales.daimlerchrysler.com
7	Detach lower engine compartment paneling		AR61.20-P-1105GZ
8	Remove bolts (5) from the right and left engine mount (1, 3)		*BA22.10-P-1001-03G
	Right hand engine mount
9	Remove complete exhaust system		AR49.10-P-7000GZ
10	Remove starter		AR15.30-P-7100GZ
11	Remove bolt (9) for ground line	Hang ground line to the side so that these are not damaged when lifting the engine using the engine support frame.
			*BA22.10-P-1003-01S
12	Remove bolt (6) from engine mount (1)		*BA22.10-P-1002-03G
		Tool kit	Fig 3
		Connection piece	Fig 4
		Four-point drive	Fig 5
13	Remove shield (2) and right engine mount (1) to the front	Installation: Observe anti-twist lock for engine mount (7) and anti-twist lock for shield (8). Observe environmental protection regulations for disposal of engine mounts, Dispose engine mounts into mixed scrap.
	Left engine mount
14	Remove left catalytic converter		AR49.10-P-5500GZN
15	Unscrew bolt (6) from engine mount (3)		*BA22.10-P-1002-03G
		Tool kit	Fig 3
		Connection piece	Fig 4
		Four-point drive	Fig 5
16	Remove shield (4) and left engine mount (3) downwards below	Installation: Observe anti-twist lock for engine mount (7) and anti-twist lock for shield (8). Observe environmental protection regulations for disposal of engine mounts. Give engine mount to mixed scrap metal.
17	Install in the reverse order
18.1	Perform basic programming	Only when removing the engine mount on the right side.	AR00.19-P-0200GZ
