Remove/install air cleaner housing - AR09.10-P-1150GZ (ML500)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

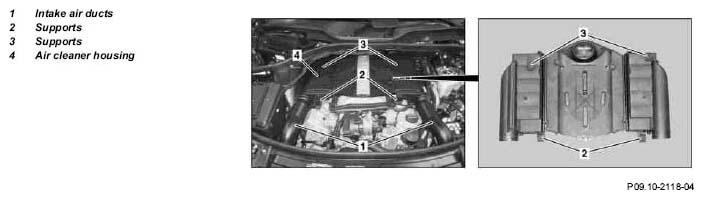

Fig 1: Identifying Air Cleaner Housing Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/Install
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Open engine hood		AR88.40-P-1000GZ
2	Remove engine trim panel		AR01.10-P-2405GZ
3	Remove intake air ducts (1)
4	Detach the air cleaner housing (4) upwards from the mounts (2) at the left and right cylinder head cover
5	Detach the air cleaner housing (4) upwards from the mounts (3) at the left and right cylinder head cover	In order to avoid scratches and damage, the air cleaner housing (4) must be put down on a padded base.
6	Install in the reverse order
