Removing/installing the starter (Engine 113) - AR15.30-P-7100GZ

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

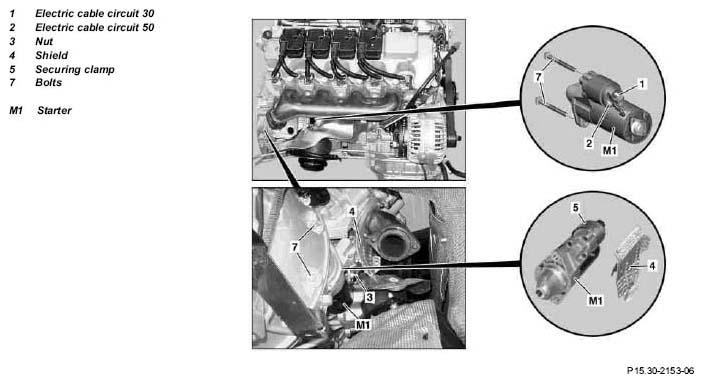

Fig 1: Identifying Starter Remove/Install Components
G05259908Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing/installing
DANGER Risk of injury  caused by fingers being jammed or pinched  when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof. When moving components, ensure that no body parts or limbs are within the operating range of moving parts. AS00.00-Z-0011-01A
1 Open engine hood   AR88.40-P-1000GZ
DANGER Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fire, sparks, open flames or smoking.
Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.
AS54.10-Z-0001-01A
2 Disconnect ground cable from battery NOTES Insulate clamp of ground line as a protection against unintentional contact of dismounted ground line with ground point of battery. AR54.10-P-0003GZ
NOTES Notes on battery All models AH54.10-P-0001-01A
DANGER Risk of death caused by vehicle slipping or toppling off the lifting platform.  Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
3 Raise vehicle with lifting platform   AR00.60-P-1000GZ
4 Remove bottom engine compartment paneling   AR61.20-P-1105GZ
5 Remove complete exhaust system   AR49.10-P-7000GZ
6 Remove protection against electrical contact for electrical line circuit 30 (1) from starter motor (M1)
7 Detach the electrical line for circuit 30(1) on starter motor (M1) TORQUE SPECIFICATION Nut for terminal 30 connection *BA15.30-P-1001-01A
8 Detach the electrical line for circuit 50 (2) on starter motor(M1) TORQUE SPECIFICATION Nut for terminal 50 connection *BA15.30-P-1002-01A
9 Screw down nut (3) on mounting clamp (5)
10 Unhook shield (4) out of the mounting clamp (5) upwards and remove
11 Unscrew bolts (7) from starter motor (M1) TORQUE SPECIFICATION Bolt for starter on crankcase *BA15.30-P-1003-01A
12 Lead starter motor (M1) downwards IMPORTANT Pull starter motor out of the crankcase and turn anti-clockwise by about 45°.
13.1 Check ring gear on the drive plate for wear and damage IMPORTANT When replacing the starter motor (M1).
IMPORTANT Rotate engine at the center Bolt for the crankshaft in the direction of rotation.

14 Install in reverse order
15 Read out fault memory and erase if required
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect up STAR DIAGNOSIS and read out fault memory   AD00.00-P-2000-04A
    STAR DIAGNOSIS diagnosis system *WH58.30-Z-1048-13A
STARTER

Number Designation Engine 113.964 in model 164
BA15.30-P-1001-01A Nut for connection of circuit 30 Nm 14
BA15.30-P-1002-01A Nut for connection of circuit 50 Nm 6
BA15.30-P-1003-01A Bolt for starter on crankcase Nm 40
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1048-13A STAR DIAGNOSIS diagnosis system, Compact Passenger Car 6511 1801 00
