Removing/installing hydraulic valve clearance compensation elements - AR05.00-P-2011GZ (ML500)

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 2012 Mercedes-Benz GL550, 2012 Mercedes-Benz GL450, 2011 Mercedes-Benz ML63, 2011 Mercedes-Benz ML550, and 2011 Mercedes-Benz ML350. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 113.964 in MODEL 164.175

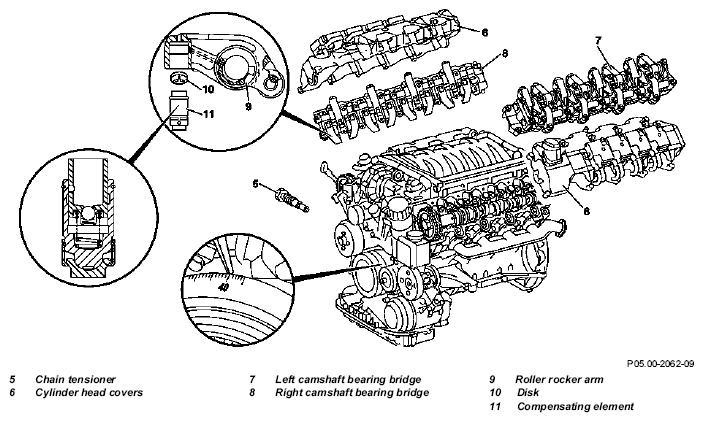

Fig 1: Identifying Hydraulic Valve Clearance Compensation Elements Components
G05257353Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing/installing
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/ rear-end door or sliding roof. When moving components, ensure that no body parts or limbs are within the operating range of moving parts. AS00.00-Z-0011-01A
1 Open engine hood and raise to vertical position   AR88.40-P-1000GZ
2 Remove cylinder head covers (6)   AR01.20-P-5014GZ
3 Set crankshaft to a 40° crank angle after ignition TDC on cylinder 1 and check the engine timing NOTES The engine must not be turned backwards otherwise the timing chain can get jammed. AR05.10-P-6858GZ
4 Remove chain tensioner (5)   AR05.10-P-7800GZ
5   Remove the left camshaft bearing bridge (7) and the right camshaft bearing bridge (8) AR05.20-P-7103GZ
    IMPORTANTInstallation:  Check basic position of camshafts, if required: ↓ AR05.10-P-6858GZ
    Set the basic position of camshafts AR05.20-P-6020GZ
6 Press clearance compensation element (11) of the related cylinder with a drift (2 mm diameter) out of the roller-type rocker arm (9) NOTES Do not use a magnet!
The slide surface of the compensation element (11) would get magnetized. This can cause minute iron chips to accumulate, which in turn can damage the compensation element (11) and the cam.
IMPORTANTInstallation:  the small plate (10) at the top of the roller-type rocker arm (9) must point to the compensation element with the slits facing downwards (11). Compensation elements which have not been replaced, must be reinstalled at the same point.

7 Install in reverse order
